Specifications
Large motherboard repair station1.HD optical alignment,HD touch screen interface
2. laser alignment

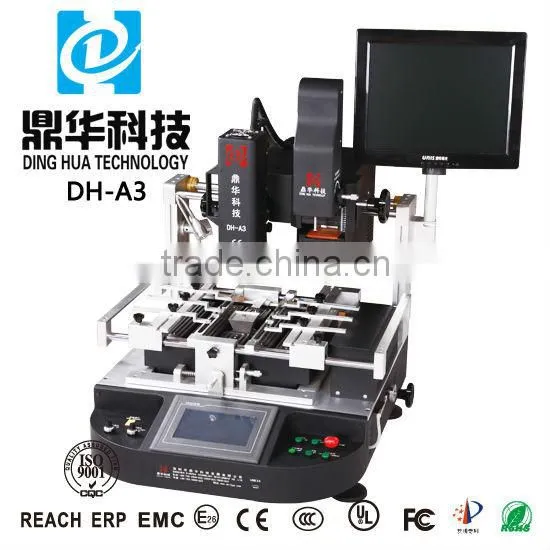

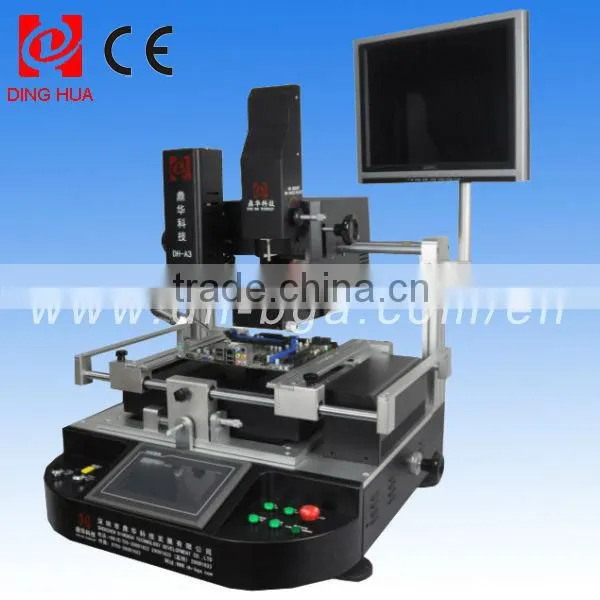

DH-A3 semi-automatic BGA rework station Specifications:
Power supply |
AC220V±10% 50/60Hz |
Power |
6500W |
Top heater |
Hot air 1200W |
Bottom heater |
Hot air 1200W, Infrared 3900W |
Positioning |
V-groove, PCB support can be adjusted in any direction and with external universal fixture |
Temperature control |
K type thermocouple, closed loop control, independent heating |
Temp accuracy |
±2°C |
PCB size |
Max 500*400 mm Min 22*22 mm |
Workbench fine-tuning |
±15mm forward/backward, ±15mm right/left |
Camera magnification |
10x-100x |
BGA chip |
2*2-80*80mm |
Minimum chip spacing |
0.15mm |
External Temperature Sensor |
1-5(optional) |
Placement Accuracy |
±0.01MM |
Machine dimension |
80*84*80cm |
NW/GW |
approx 78/98 KG |
A3 bga rework station Main Features:
l PLC control and start-up password for protection and modficaton. Real-tme settings and actual temperature profile display can be used to analyzed and corrext parameters if necessary
lHD touch screen interfaceand LCD display screen, PLC control
lHD color optical alignment system, optical zoom up to 30 times. Alignment can move around to enlarge BGA observation range, fine-tuning accuracy can be 0.01mm
lThree independent heaters all can set 8 segments heating, cooling and constant temperature, saved temperature profile is unlimited. IR preheat area can be controlled according to PCB size
lK sensor close loop control and automatic temperature compensation system. It combines with temperature module, which enables temperature accuracy to ±2°C
lHot air nozzles, 360 degree rotation, easy to install and replace, customized is available.
lV-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.
lPowerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation.
lSound hint system. There is an alarm before the completion of each desoldering and soldering.
lCE certification, with emergency switch and automatic power-off protection device when emergency happens

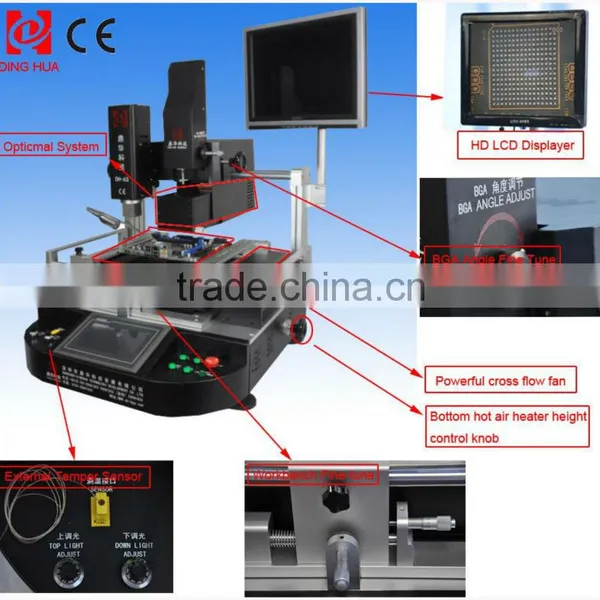

Optical Alignment
Workbench fine-tune

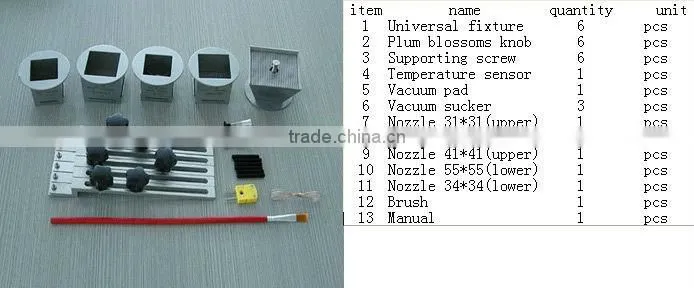

Multiply PCB jig
Various hot air nozzles, customize is available
Machine Packaging
Applications:
Complete range of rework applications in medium and large scale service centers
Mobile and radio systems devices repairment
Smart phones, PDAs, handhelds, laptops, notebooks & motherboards repairment
LAN devices, network nodes and military communication equipment repairment
Portable medical equipment repairment

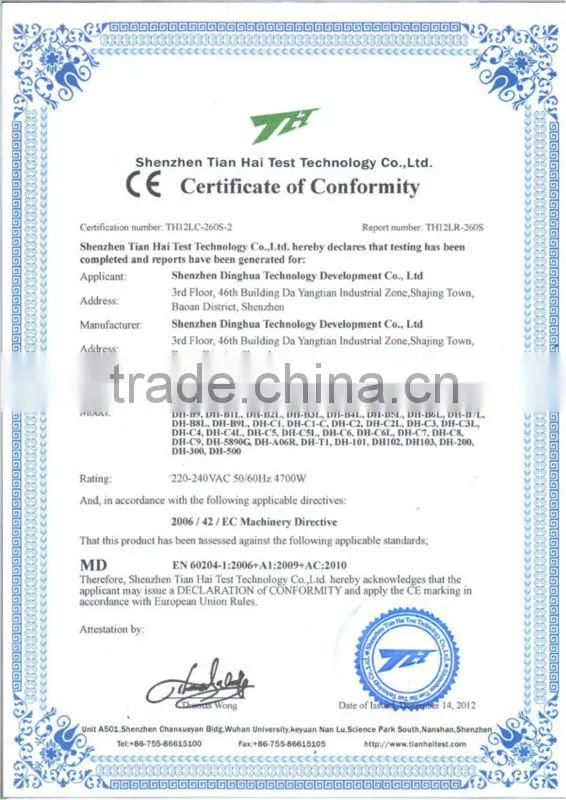

CE certification
