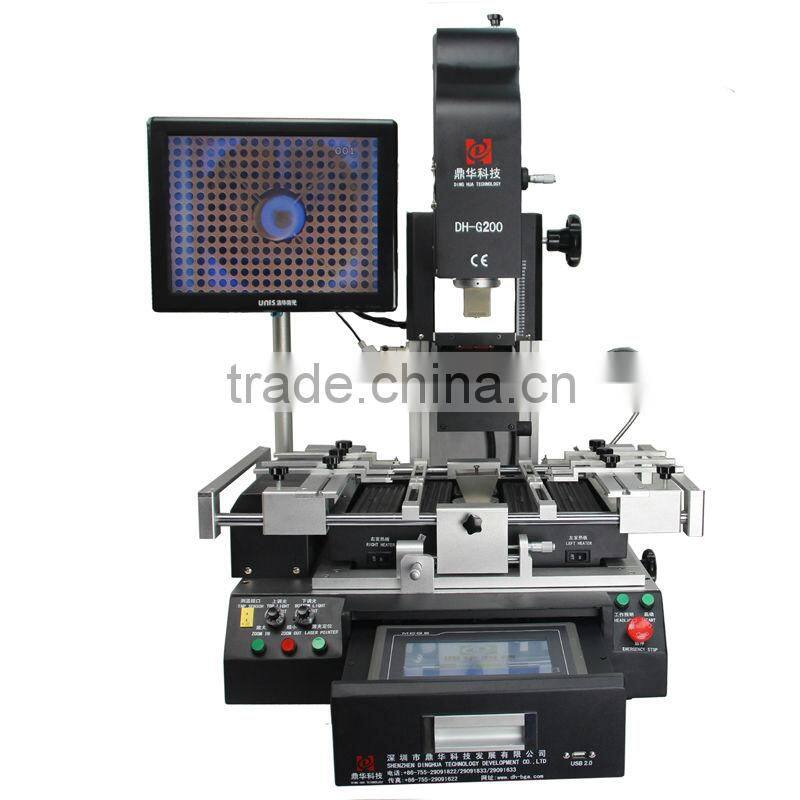

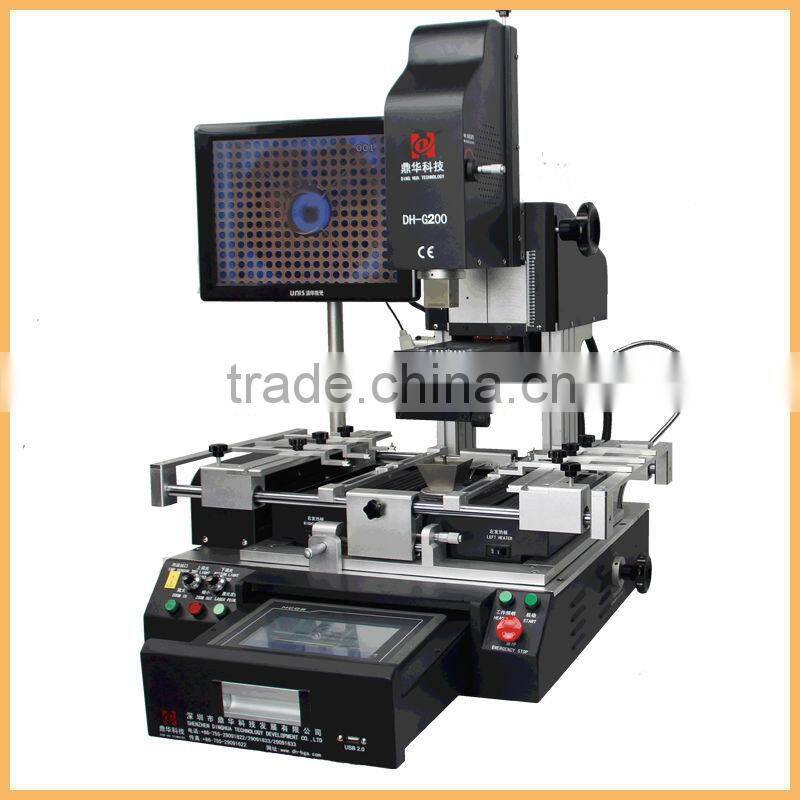

Help CenterLow Cost High Quality CCD Camara DH-G200 Bga Rework Station for SMD/SMT BGA Chips Rework Station
Related Products
-
Motherboards Replacement for Iphone 4SUS$ 19,000 - 21,700MOQ: 1 Piece -
Computer Motherboard Chip Rework MachineUS$ 19,000 - 21,700MOQ: 1 Piece
-
PS3/XBOX 360 Soldering Station Video Card Bga Chip RepairUS$ 19,000 - 21,700MOQ: 1 Piece
-
Bga Chip Repair Machine Bga Chip Reuse MachineUS$ 19,000 - 21,700MOQ: 1 Piece
-
Pcb Bga Repair Pcba Bga Rework StationUS$ 19,000 - 21,700MOQ: 1 Piece
Specifications
ldering and desoldering machine2.Laser postioning and CCD
3.manual operation (A2 manual vesion )
4.temperature accurac
BGA rework station DH-G200 special for IC soldering, BGA rework station, mobile phone reballing
1)Specification and features
| Product name | soldering and desoldering machine |
| Total power | 5300W |
| top heating | 1200w |
| bottom heating | bottom hot air heating 1200W, IR preheating 2700W |
| Power | 220V 50HZ/60HZ |
| Positioning | V-groove, PCB boards can be adjusted in X, Y axis and equipped with universal fixture |
| Temperature control | K-type, Closed loop |
| PCB size | Max 400x380mm, Min 22x22mm |
| Chip size | 2x2-50x50mm |
| Minimum chip spacing | 0.15mm |
| External temperature sensor | 1(optional) |
| N.W. | approx 60kg |
| Suitable motherboards | mobile phone, laptop, desktop, game console, XBOX360, PS3 |
| Main feature |
1.CCD camera systerm 2.optical alignment 3.PLC control 4.laser postioning 5.portable drawer style HD touch screen |
| Accessories |
-1 piece user guide -1 piece LCD -5 pcs hot air nozzle: top nozzle 3pc(31x31mm,38x38mm,41x41mm), Bottom nozzle 2pcs (34x34mm,55x55mm)PS: Hot air nozzle size can be customized according to your chip size -1 set of vacuum sucker(including 4 pcs) -2 pcs vacuum pad -6 pcs universal fixture -4 pcs supporting screw -6 pcs Plum knob |
2) Its can widely use as follow:
Its can repair PS3 and Xbox 360 game console which with larger main boardsand thicker, bigger size BGA chips.and widely used in computer, cell phones, industrialcomputer,switches, graphics cards, shielding enclosures, CPU's seat, components slot.
3) More photo about G200
Laser positioning and scaleplate
Micrometer
IR plate and portable HD touch screen
Photo about packing
All of our machine will packed carefully with standard plywooden box, to protect it from transport.
Photo about our factory
the products we sell one-year warranty.If you require technical support for any of your Bga rework station products, please contact our support team using the following details:
We always answer your questions: 24 hours a day, 7 days a week.
