Specifications
1.Original factory2.Hot air and IR heating, 3 independent heaters
3.Touch screen interface

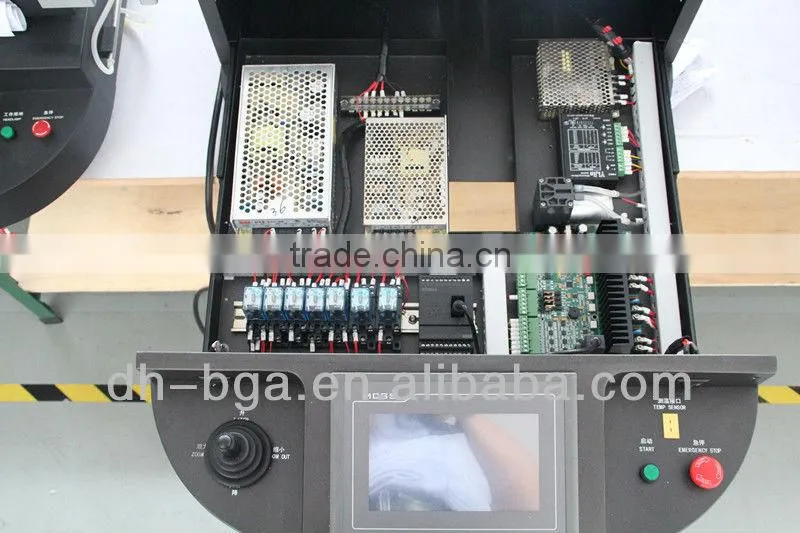

4.PLC control bga rework station
Total Power |
5200W |
Top heater |
1200W |
Bottom heater |
1200W,2700W |
power |
AC220V±10% 50/60Hz |
Dimensions |
L600×W700×H850 mm |
Positioning |
V card |
Temperature control |
K Sensor; Closed loop) |
Temp accuracy |
±2 |
PCB size |
Max 440×380 mm Min 22×22 mm |
BGA chip |
2X2-80X80mm |
Minimum chip spacing |
0.15mm |
External Temperature Sensor |
1,optional |
Net weight |
70kg |
Our service tenet is to make all our customer will be very professional for bga reworking, even if they don’t have any experience of bga reworking, we will train them with patience
Motherboard repair bga reballing bga rework station DH-A2
Specifications:
BGA rework station DH-A2 main features
Three independent heaters .
How to get the accurate temperature is the most importent aspect for reparing BGA chip
As we know, how to control the temperature is very important when we soldering or desoldering the bga, our machine use PID control, the data acquisition frequency of our machine is 10ms(which means every 10ms the PID will grab the data to correcting the temperature,), but for most of bga rework station from other company, their PID grab frequency is 30ms,this is a big difference between 10ms and 30ms,that's why our machine is more accurate.
Hot air nozzles
Hot air nozzles, 360 degree rotation, easy to install and replace, customized is available.

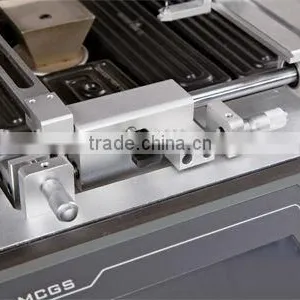

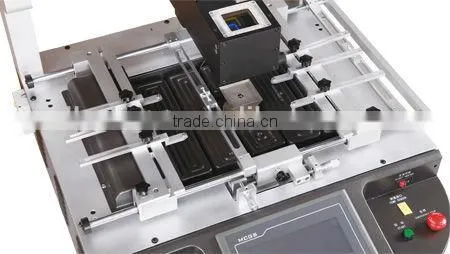

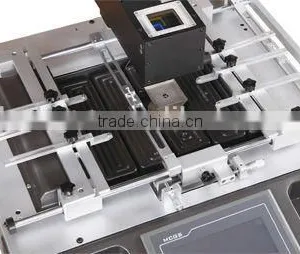

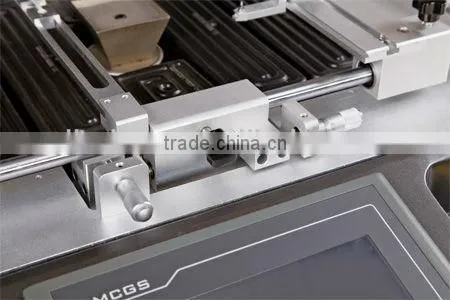

The way for supporting PCB board
V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.
Vacuum pen for handing bga chip
Cooling system
Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation.
Sound hint system.There is an alarm before the completion of each desoldering and soldering.
Packing
All of our machine will packed carefully with standard plywooden box, to protect it from transport.
Certificate

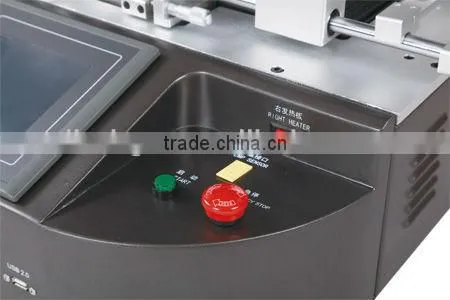

CE certification, with emergency switch and automatic power-off protection device when emergency happen
Company profile
Chips below can be repaired
