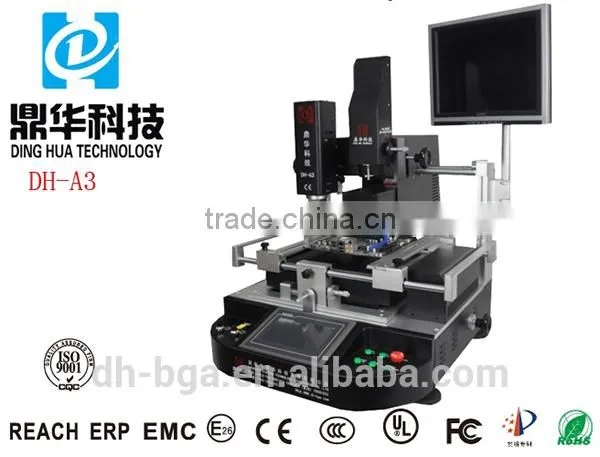

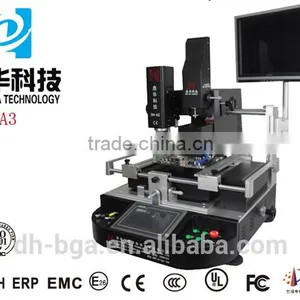

Communication Motherboard Repair Soldering Machine DH-A3
Specifications of Communication Motherboard Repair Soldering Machine DH-A3
Total Power |
6500W |
Top heater |
1200W |
Bottom heater |
Second heater 1200W,IR preheating 3900W |
Power |
AC220V±10% 50/60Hz |
Current |
20A |
Dimensions |
L800*W900*H950 mm |
Packing size |
900*900*800mm |
Positioning |
V-groove, PCB support can be adjusted in X,Y direction with external universal fixture |
Temperature control |
K Sensor, Closed loop |
Temp accuracy |
±1°C |
PCB size |
Max 500*400 mm Min 22*22 mm |
Workbench fine-tuning |
Forward/back±15mm, right/left±15mm |
Camera magnification |
10x-100x times |
BGA chip |
2x2-80x80mm |
Minimum chip spacing |
0.15mm |
External Temperature Sensor |
1-5(optional) |
Placement Accuracy |
±0.01MM |
Net weight |
93kg |
Features of Communication Motherboard Repair Soldering Machine DH-A3
1.High definition touch screen, PLC control, can save multiple group profile. Show the
real-time set and measured temperature with instant temperature curve analysis function.
2.Power on password protects and change function, and it can display 4-6 temperature
profile and save several operator dates. to ensure the heating effect and placement accuracy,
the heating head and placement head are independent control. Adopt linear slide which makes X,Y,Z axis all can do micro adjust or rapid positioning; Instead of moving the PCB after mounting, we just need to move the upper heating head to heat directly to ensure the welding effect, placement accuracy.
3.Three independent heaters. Hot air upper and bottom heater. Infrared preheat bottom.
Heating time, temperature and curve all can be displayed on touch screen.
4.K-type thermocouple (closed loop), PID parameter self-setting system automatic and temperature adjustment system with PLC, temperature precision within ±1 degree.
5.V-groove PCB can be adjusted in any direction with external universal fixture, suitable for
all kinds of BGA repair.
6.Flexible and removable universal fixture protects the PCB, prevents PCB components
damage and deformation and adapt to all kinds of BGA size.
7.Offer all kinds of hot-air nozzle, with 360degree rotation; easy to install and change, customized is available.
8.High-definition CCD version system, two-tune, enlarge, micro-adjustment, automatic
focusing and remediation equipped with color resolution and brightness adjustment auto
device and can adjust the definition auto automatic or manual.
9.The X, Y axis and R angle with micrometer adjust, precise positioning, alignment
accuracy within ±0.01MM. High-definition LCD monitors.
10.level up/down + 8 level constant temperature control, save multiple groups profile. We can analyze, set and calibrate the temperature parameters curve on the touch screen at any time.
11.Including Voice "early warning" function. 5-10 seconds before the completion of uninstalling or welding, voice reminder / warning to get the workers prepared. Cooling system will start automatically or manually after vertical wind stopped heating to ensure the welding effect.
12.Internal vacuum pump, Φ angle 60° rotation, Micrometer precision to mount suction nozzle by fine tuning without air.
13.CE certification, with emergency switch and automatic power-off protection device when emergency happens.
Structure of Communication Motherboard Repair Soldering Machine DH-A3
More Photo of Communication Motherboard Repair Soldering Machine DH-A3
Accessories of Communication Motherboard Repair Soldering Machine DH-A3
Packing of Communication Motherboard Repair Soldering Machine DH-A3
Certifications of Communication Motherboard Repair Soldering Machine DH-A3
Our Company
Why Choose Us
1.We are the professional BGA rework station manufacturer. And have been in this
filed for more than 5 years. Engaged in Design, Development, Production and Selling.
2.Our machine is best in quality with low price. Are popular with the repair shop and
training schooll all over the worlk. Welcome you to be our agent.
3.Fast delivery: FedEx, DHL, UPS, TNT and EMS. Many models in stock all the time.
4.Payment: Western Union, PayPal, T/T.
5.OEM and ODM is welcome.
6.The machine( Communication Motherboard Repair Soldering Machine DH-A3 )
will be equipped with user guide and CD.
