Help CenterLaptop Motherboard Repair Machine BGA Rework Machine DH-A4
Related Products
-
Communication Motherboard Repair Soldering Machine DH-A3US$ 1 - 5,500MOQ: 1 Set -
PS3 Motherboard Repair BGA Welding Machine DH-A3US$ 1 - 5,500MOQ: 1 Set
-
LED Display Module Repair Machine DH-G200US$ 1 - 4,199MOQ: 1 Set
-
Display Card BGA Chip Repair Chip Welding Machine DH-G200US$ 1 - 4,199MOQ: 1 Set
-
Semi-auto CCD Camera Optical Alignment BGA Rework StationUS$ 5,000 - 6,000MOQ: 1 Piece
Specifications
1.Laptop Motherboard Repair Tools2.BGA Rework Machine
3.Optical Alignment,CCD Camera
4.Laser Positioning,HD Touch Screen.CE.

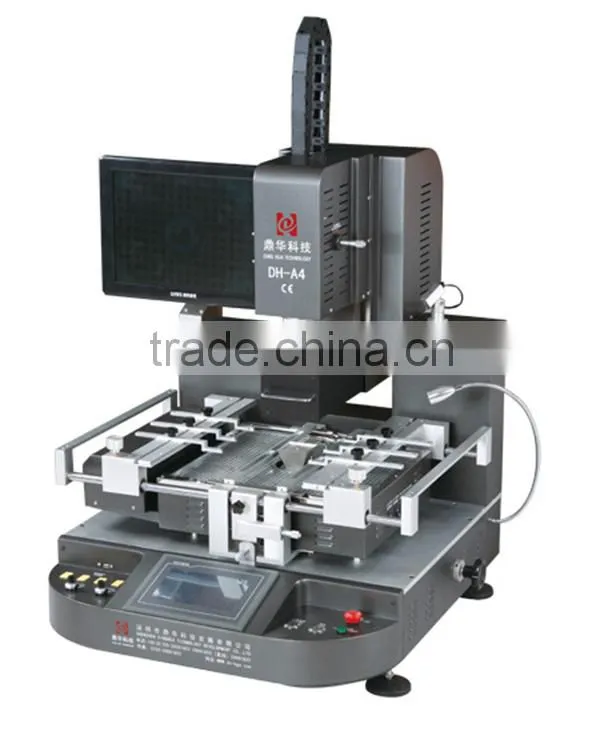

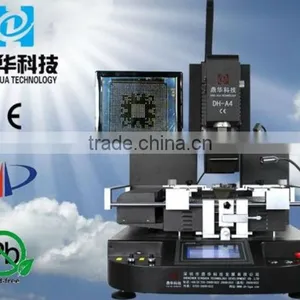

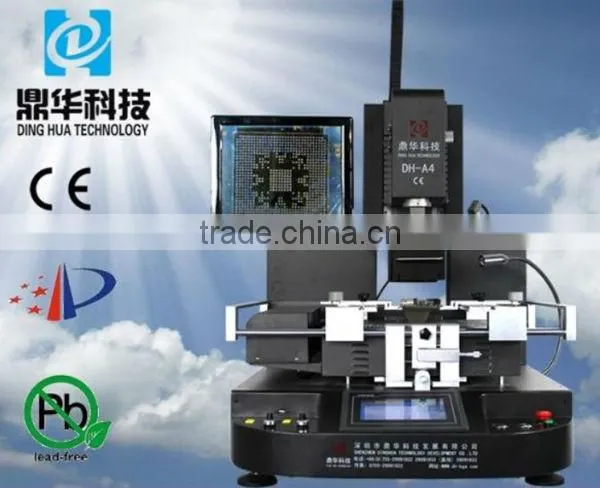

Laptop Motherboard Repair Machine BGA Rework Machine DH-A4
Specifications of Laptop Motherboard Repair Machine BGA Rework Machine DH-A4
Total Power |
6800W |
Top heater |
1200W |
Bottom heater |
Second heater 1200W,IR preheating 4200w |
Current |
20A |
power |
AC220V±10% 50/60Hz |
Dimensions |
L1022*W670*H850 mm |
Packing size |
900*1170*1150mm |
Positioning |
V-groove, PCB support can be adjusted in X,Y direction and equipped with external universal fixture |
Temperature control |
K Sensor, Closed loop |
Temp accuracy |
±1°C |
PCB size |
Max 500*400 mm Min 22*22 mm |
Workbench fine-tuning |
Forward/back±15mm, right/left±15mm |
Camera magnification |
10x-100x times |
BGA chip |
2*2-80*80mm |
Minimum chip spacing |
0.15mm |
External Temperature Sensor |
1-5(optional) |
Placement Accuracy |
±0.01MM |
NW/GW |
97kg/116kg |
Features of Laptop Motherboard Repair Machine BGA Rework Machine DH-A4
1.High definition touch screen, PLC control, can save multiple group profile. Show the real-time set and
measured temperature with instant temperature curve analysis function.
2.Power on password protect and change function, To ensure the heating effect and placement accuracy,
the heating head and placement head are independent control. Adopt linear slide which makes X,Y,Z axis
all can do micro adjust or rapid positioning; Instead of moving the PCB after mounting, we just need to
move the upper heating head to heat directly to ensure the welding effect, placement accuracy.
3.Three independent heaters. Hot air upper and bottom heater. Infrared preheat bottom. Heating time,
temperature and curve all can be displayed on touch screen.
4.K-type thermocouple (closed loop), PID parameter self-setting system automatic and temperature
adjustment system with PLC, temperature precision within ±1 degree.
5.V-groove PCB can be adjusted in any direction with external universal fixture, suitable for all kinds of
BGA repair
6.Flexible and removable universal fixture protects the PCB, prevents PCB components damage and
deformation and adapt to all kinds of BGA size
7.Offer all kinds of hot-air nozzle, with 360degree rotation; easy to install and change, customized is available.
8.High-definition CCD version system, two-tune, enlarge, micro-adjustment, automatic focusing and
remediation equipped with color resolution and brightness adjustment auto device and can adjust the
definition auto automatic or manual.
9.X The X, Y axis and R angle with micrometer adjust, precise positioning, alignment accuracy within
±0.01MM. High-definition LCD monitors.
10,8 level up/down + 8 level constant temperature control, save multiple groups profile. We can analyze, set
and calibrate the temperature parameters curve on the touch screen at any time.
11,Including Voice "early warning" function. 5-10 seconds before the completion of uninstalling or welding,
voice reminder / warning to get the workers prepared. Cooling system will start automatically or manually
after vertical wind stopped heating to ensure the welding effect.
12,Internal vacuum pump, Φ angle 60° rotation, Micrometer precision to mount suction nozzle by fine tuning without air.
13,CE certification, with emergency switch and automatic power-off protection device when emergency happens.
Structure of Laptop Motherboard Repair Machine BGA Rework Machine DH-A4

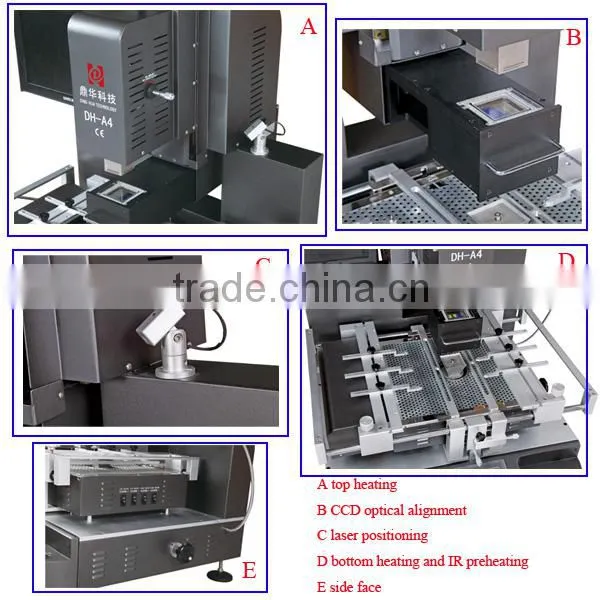

More Photos of Laptop Motherboard Repair Machine BGA Rework Machine DH-A4
Accessories of Laptop Motherboard Repair Machine BGA Rework Machine DH-A4
Packing of Laptop Motherboard Repair Machine BGA Rework Machine DH-A4
Certifications of Laptop Motherboard Repair Machine BGA Rework Machine DH-A4
Our Company
Why Choose Us
1.We are the professional BGA rework station manufacturer. And have been in this
filed for more than 5 years. Engaged in Design, Development, Production and Selling.
2.Our machine is best in quality with low price. Are popular with the repair shop and
training schooll all over the worlk. Welcome you to be our agent.
3.Fast delivery: FedEx, DHL, UPS, TNT and EMS. Many models in stock all the time.
4.Payment: Western Union, PayPal, T/T.
5.OEM and ODM is welcome.
6.The machine( Laptop Motherboard Repair Machine BGA Rework Machine DH-A4 )
will be equipped with user guide and CD.
Warranty
The whole machine(Laptop Motherboard Repair Machine BGA Rework Machine DH-A4)
warranty for one year. And the heating wire for three-years warranty. Our technical
support for the whole life.
Thank you for your attention. Should you have any request and question, please feel free
to contact me. Your inquiry will get our fast reply. Welcome you to visit our factory.
