Contact Platform Support
Help CenterManual Optical Alignment BGA Rework Station DH-G200 With CCD Camera
Related Products
-
DH- A4 DingHua Bga Rework FactoryUS$ 16,000 - 20,000MOQ: 1 Piece -
Laptop CCD Camera BGA Rework Reballing StationUS$ 16,000 - 20,000MOQ: 1 Piece
-
Semi Automatic CCD Camera Optical Alignment PS3 Motherboards Repair Machine For PS3 BGA ChipUS$ 16,000 - 20,000MOQ: 1 Piece
-
Full-automatic BGA Rework Station For Mobile IC RepairingUS$ 19,000 - 20,000MOQ: 1 Piece
-
Automatic Desktop SMT Pick And Place MachineUS$ 1 - 20,000MOQ: 1 Piece
Specifications
1. Manual Optical Alignment BGA Rework Station2.Laser postioning and CCD
3.manual operation (A2 manual vesion)
Specification of Manual Optical Alignment BGA Rework Station DH-G200 With CCD Camera
Total Power |
5300W |
Top heater |
1200W |
Bottom heater |
2 nd:1200W 3 rd:2700W (Plus large fever area to adapt to all kinds of PCB board) |
Power |
AC220V±10% 50/60Hz |
Current |
20A |
Dimensions |
L550*W580*H720 mm |
Packing size |
760*680*680mm |
Positioning |
V-groove, PCB support can be adjusted in X direction with external universal fixture |
Temperature control |
K thermocouple(K Sensor)Closed loop |
Temp accuracy |
±1 degrees |
PCB size |
Max 400*380 mm Min 22*22 mm |
BGA chip |
2*2-50*50mm |
Minimum chip spacing |
0.15mm |
External Temperature Sensor |
1 (optional) |
Net weight |
60kg |
Features of Manual Optical Alignment BGA Rework Station DH-G200 With CCD Camera
1. Embedded industrial PC, high definition touch screen, make the operation humanity, CPU control, and instant curve analysis function. Real-time display settings and actual temperature curve, which can also be used to analyze and correct the curve if necessary.
2. High precise k-type thermocouple closed-loop control and automatic temperature compensation system, with CPU and temperature module to enable precise temperature deviation to add and subtract 2 degrees. Meanwhile, external temperature measurement connector enables temperature diction and accurate analysis of real time temperature curve.
3. V-groove PCB works for rapid, convenient and accurate positioning, which can meet all kinds of PCB board of positioning.
4. Flexible and convenient removable fixture on the PCB board can protect the PCB fringe devices from damaging and transmuting. It can also adapt to various BGA ‘s reworking.
5. Various sizes of BGA alloy nozzles, which can be adjusted 360 degree for easily installation and replacement.
6. Three independent heaters: Three temperature areas can independently heat and they are multiple temperature control, which can ensure best integration of different temperature areas. Heating temperature, time, slope, cooling and vacuum can all be set in the human-machine interface.
7. There are 8 stage temperature controls up and down. Massive storage of temperature curves which are accessible at any time according to different BGA. Curve analysis, setting and adjustment are also accessible via touch screen. Three heating areas adopt independent PID calculation to control heating process to enable more accurate temperature.
8. High power cross-flow fan to enable fast cooling of PCB board and prevent PCB from deformation. There are also internal vacuum pump and external vacuum chuck, which can help to fetch the BGA chip;
9. Collocating with sound control "early warning" function. It can warn workers to make some relative preparation 5-10 seconds before the completion of uninstalling or welding. Cooling system will start after vertical wind stopped heating. When the temperature drops to normal temperature, the cooling process will stop automatically, so that the machine will not be aging after temperature heated up.
10. Rocker controller for controlling the upper heater goes up and down freely, and it also has the function for zooming the picture.

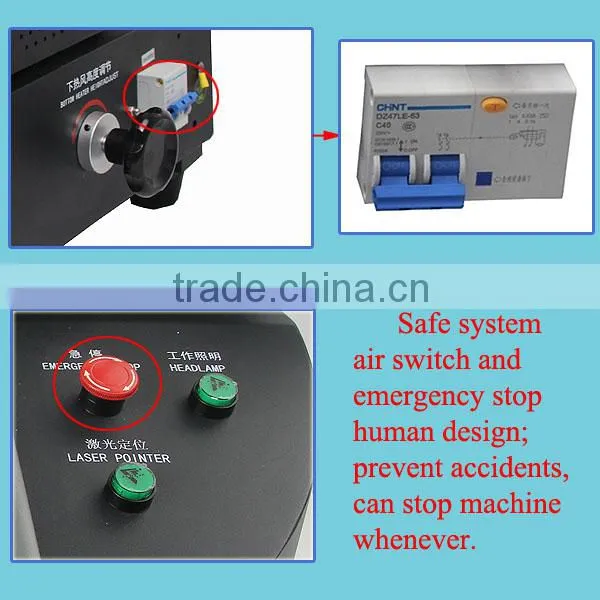

11. CE certificate,equipped with emergency stop switch and automatic power-off protection device when emergency happens.

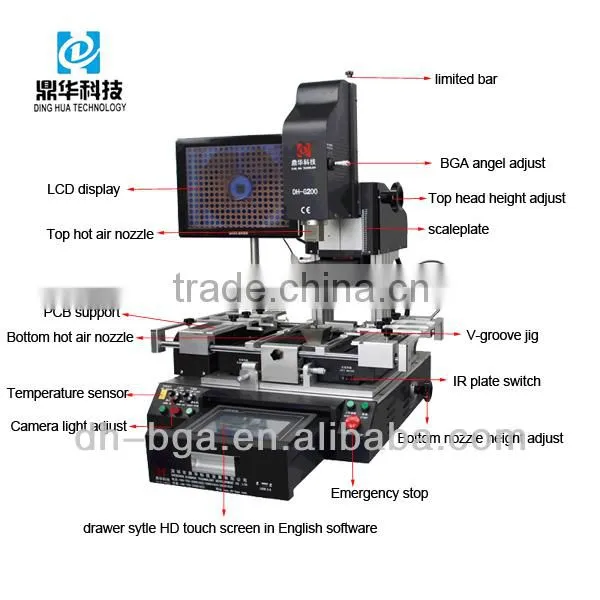

Structure of Manual Optical Alignment BGA Rework Station DH-G200 With CCD Camera
More photos of Manual Optical Alignment BGA Rework Station DH-G200 With CCD Camera

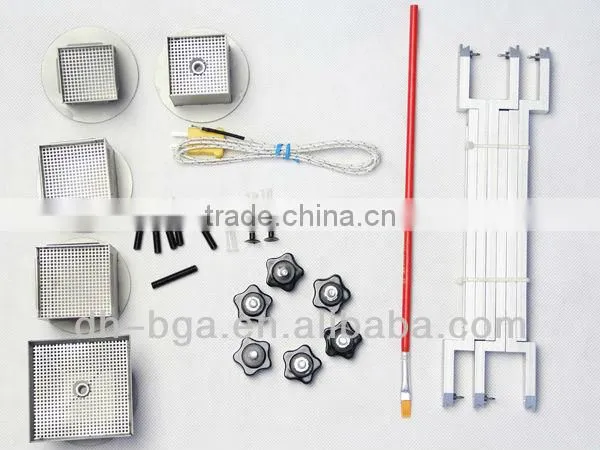

Accessories ofManual Optical Alignment BGA Rework Station DH-G200 With CCD Camera
1. The machine can be delivered by DHL, FedEx, TNT, EMS, UPS.
2. By sea or by air. Please provide us your nearest port.
3. The delivery date is within 7 days after the receipt of payment. If you are in urgent need of it,
please kindly tell us.
Shenzhen Dinghua Technology & Development Co., Ltd is a professional manufacturer of BGA rework station, rework tools and associated equipments, engaging in design, production, sales and service.We commit us to make the professional equipment, provide the high quality a perfect service for the customer. As one of pioneer in this industry, we continue to improve and innovate along with the market demands by absorbing the advanced development experience from home and abroad to adhering to our vision of ‘Professionalism, Honesty, Innovative and Responsibility’.
Science and technology are primary productive forces. Through teamwork, we achieved the core thermal-control technology with related patent. At the same time, our products cover 3 categories: high-end, mid-end and low-end for development and production using manual, semi-auto to fully automated processes. Our market had expanded into industries like: individual repair, factories, education, military and aerospace etc. And we had established the point-of sales and end service at locally and abroad.
Your satisfaction is our target, adhering to customer-focus, market oriented, and our company provides fist class products and high efficient services for customers through continuous innovation. We are honored to work with you to create a brighter future.
Our compay
Our customer
1.All the machine will be well tested for 3 days before sending.
2.The whole machine is for 1-year warranty, the heating wire is for 3-years warranty
a. Your inquiry related to our products or prices will be replied within 24hours.
b.Be Well-trained and experienced to answer all your enquires in fluent English
c. OEM&ODM, any your request we can help you to design and put into product.
d. Distributors are offered for your unique design and some our current models
e. Protection of your sales area, ideas of design and all your private information.
We always answer your questions: 24 hours a day, 7 days a week.
Send Inquiry to This Supplier
You May Also Like
-
Iphone 5S Repair BGA Rework Station DH-A2US$ 5,000 - 6,000MOQ: 1 Piece
-
Automatic BGA Rework Station Chip Pick And Place MachineUS$ 5,000 - 6,000MOQ: 1 Piece
-
Mobile Phone/Laptop/Desktop/XBX360/PS3 Mainboard Repair KitUS$ 5,000 - 6,000MOQ: 1 Piece
-
Semi Auto Laser Positioning Optical Alignment Motherboard Repair ToolUS$ 5,000 - 6,000MOQ: 1 Piece
-
CCD Camera BGA Rework Station With PCB SupportUS$ 3,800 - 5,000MOQ: 1 Piece
-
BGA Reballing Machine Motherboards Repair BGA Phone ReballingUS$ 3,800 - 5,000MOQ: 1 Piece
-
Cell Phone Motherboard Repairing Machine With Optical Alignment SystemUS$ 3,800 - 5,000MOQ: 1 Piece
-
2014 Best Selling Laptop Motherboard Chip Repairing MachineUS$ 3,800 - 5,000MOQ: 1 Piece
-
2014 Best Selling Optical Alignment Computer Motherboard BGA Repair Machine For Laptop Repair Shop And FactoryUS$ 3,800 - 5,000MOQ: 1 Piece
-
BGA Chip Repair Machine For Laptop/Desktop/XBPX360/PS3/TV Motherboards RepairingUS$ 3,800 - 5,000MOQ: 1 Piece
