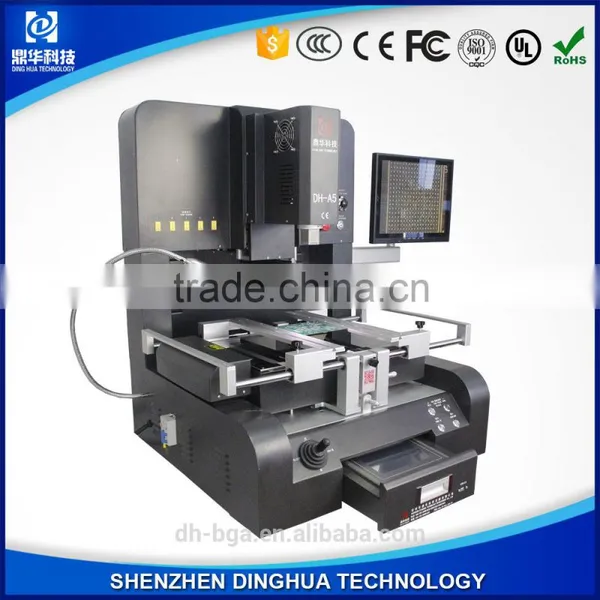

Dinghua optical alignment bga rework equipment with CCD vision system DH-A5
Specification:
Total Power |
6800W |
Top heater |
1200W |
Bottom heater |
2nd 1200W, 3rd IR heater 4200W |
Power |
AC220V±10% 50Hz |
Driver |
Servo driver used. Fully automatic pick, placement, soldering and desoldering, cooling. |
Operation mode |

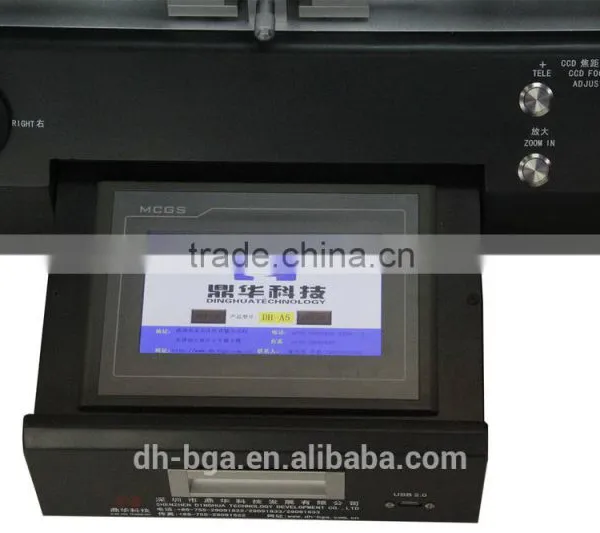

Two modes: manual and automatic. HD touch screen, intelligent man-machine, digital system setting. |

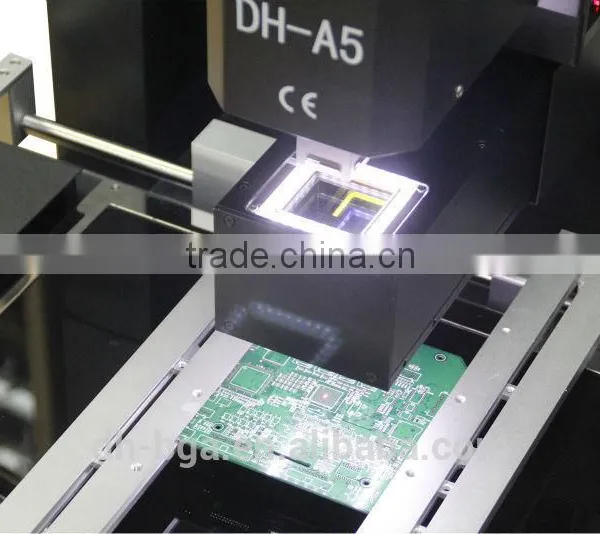

Optical CCD camera lens |
Automatic Frontward / backward, right / left |
Camera magnification |
10x - 220x |
Workbench fine-tuning: |
±15mm forward/backward, ±15mm right/left |

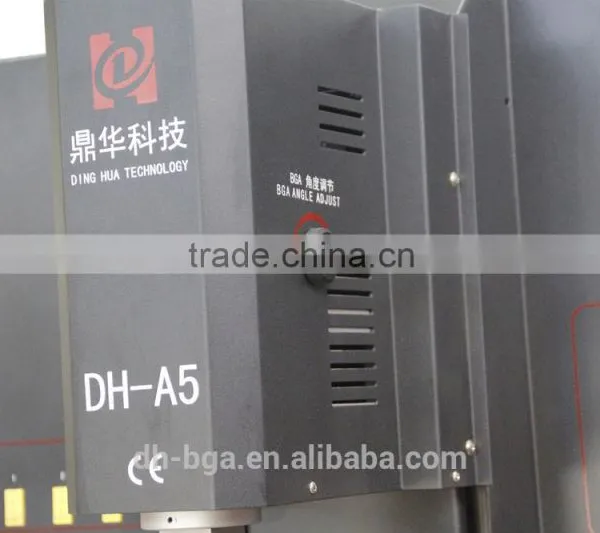

BGA positioning |
Laser position, fast and accurate position of pcb and bga |
Top air speed |
Can be adjusted by adjusting knob, prevent tiny bga from movement. |
PCB Positioning |

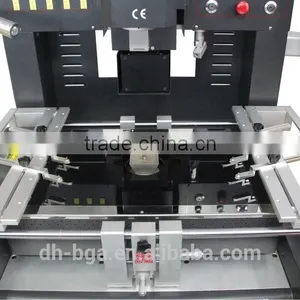

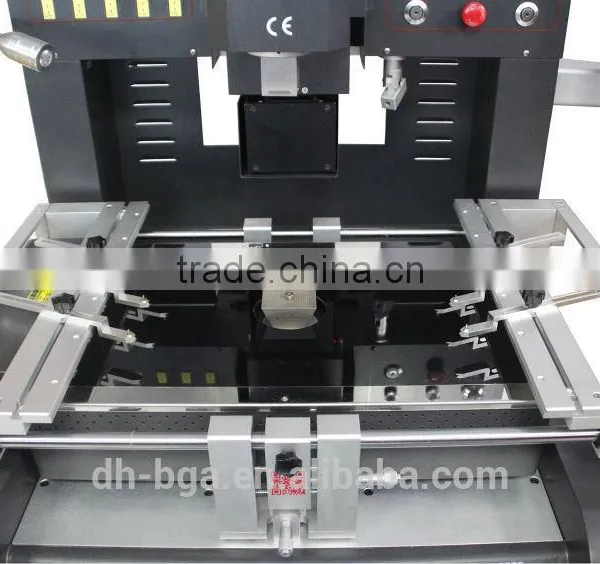

Intelligent positioning, PCB can be adjusted in X, Y direction with “5 points support”+ V-groove pcb bracket + universal fixtures. |
Temperature control |
K sensor, close loop, PLC control, Servo driver |
Placement accuracy: |
±0.01mm |
Temp accuracy |
±1℃ |
Lighting |
Taiwan led working light, any angle adjustable |
Temperature profile storage |
50000 groups |
PCB size |
Max 420×470 mm Min 22×22 mm |
BGA chip |
2x2 - 80x80 mm |
Minimum chip spacing |
0.15mm |
External temper sensor |
1pc |
Dimensions |
730x670x940mm |
Net weight |
91KG |
Feature:
HD touch screen interface, PLC control
HD color optical alignment system, optical zoom up to 30 times. Alignment can move around to enlarge BGA observation range, fine-tuning accuracy can be 0.01mm
Top heater and nozzle 2 in 1 design, alignment, placement, welding and remove automatic. Top heater height can be adjust after auto process, user-friendly. Placement height and height of top heater
can be set or detect auto.

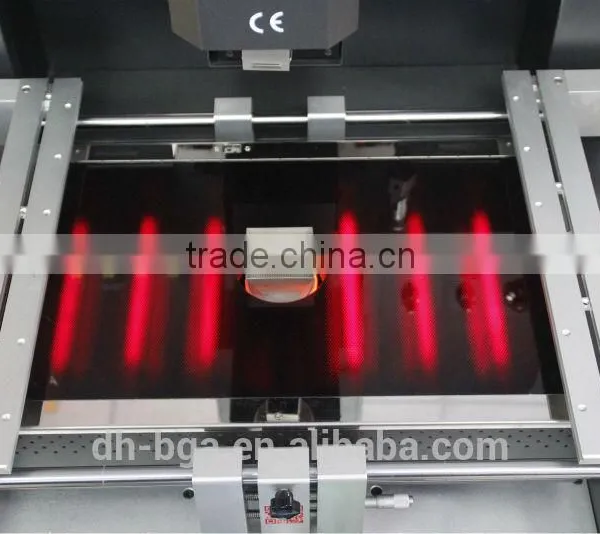

Three independent heaters all can set 8 segments heating, cooling and constant temperature, saved temperature profile is unlimited. IR preheat area can be controlled according to PCB size
K-sensor close loop control and automatic temperature compensation system. It combines with
temperature module, which enables temperature accuracy to ±2°C
Hot air nozzles, 360 degree rotation, easy to install and replace, customized is available.
V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB
board.
Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation.
Sound hint system. There is an alarm before the completion of each desoldering and soldering.
CE certification, with emergency switch and automatic power-off protection device when emergency
happens
