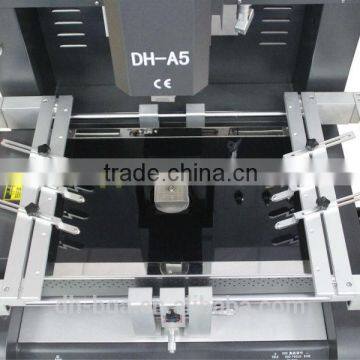

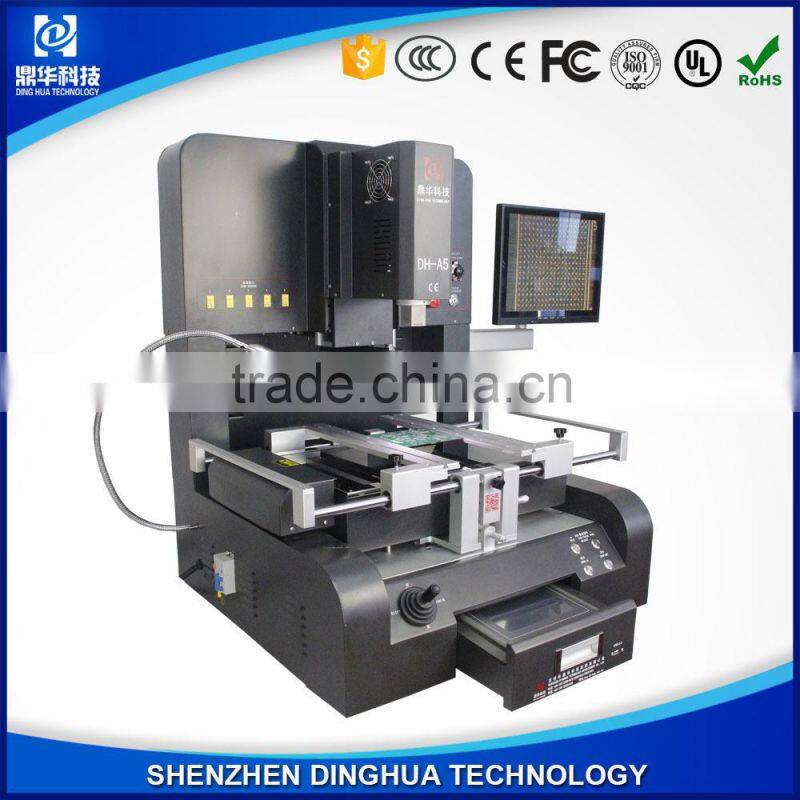

Dinghua bga repair station bga heater with optical alignment system CCD camera DH-A5
Specification of bga rework system DH-A5:
- Total Power: 6800W
- Top heater: 1200W
- lower heater: 1200W
- Bottom heater: 4200W
- power: AC220V/AC110 optional
- Positioning: V-groove, PCB support
- Temperature control: K Sensor, Closed loop
- Temp accuracy: ±1 degree
- Workbench fine-tuning: ±15mm forward/backward ±15mm right/left
- Placement accuracy: ±0.01mm
- Camera magnification: 10x-220x
- PCB size: Max 420x470mm Min 20x20mm
- BGA chip size: 2*2~80*80mm
- Minimum chip spacing: 0.15mm
- Dimension: approx 730x670x940mm
- Net weight: Approx 91KG
Feature of bga rework system DH-A5:

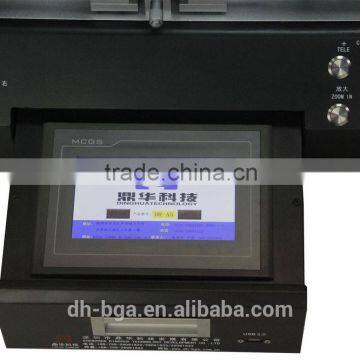

HD touch screen interface, PLC control
HD color optical alignment system, optical zoom up to 30 times. Alignment can move around to enlarge BGA observation range, fine-tuning accuracy can be 0.01mm

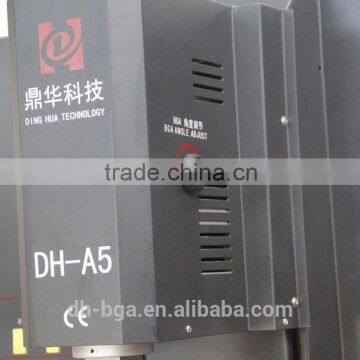

Top heater and nozzle 2 in 1 design, alignment, placement, welding and remove automatic. Top
heater height can be adjust after auto process, userfriendly. Placement height and height of top
heater can be set or detect auto.
Three independent heaters all can set 8 segments heating, cooling and constant temperature, saved temperature profile is unlimited. IR preheat area can be controlled according to PCB size
K-sensor close loop control and automatic temperature compensation system. It combines with
temperature module, which enables temperature accuracy to ±2°C
Hot air nozzles, 360 degree rotation, easy to install and replace, customized is available.
V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB
board.
Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from
deformation.
Sound hint system. There is an alarm before the completion of each desoldering and soldering.
CE certification, with emergency switch and automatic power-off protection device when emergency
happens.
Packing:
Accessories:
Certification:
Our company:
Warranty and after-sale service:
1. We provide you the friendly English User manual for free.
2. Videos of operating the machine are available.
3. 24 hours technical support by email or calling. We promise to response in 3 minutes, solve the problems in 24 hours.
4. Warranty: 1 year free for the whole machine, 3 years free for the heaters and free life long for technical support always.
