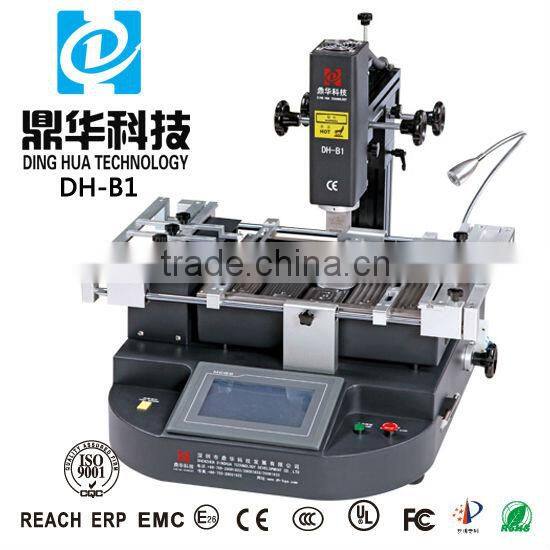

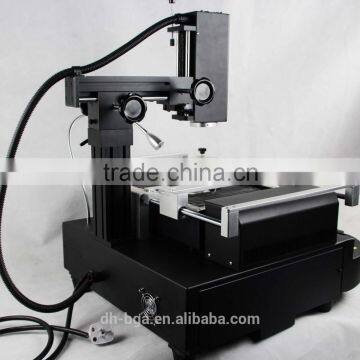

Help CenterDinghua Bga Mobile and Laptop Infrared Repair Station for Xbox 360 Ps2 Ps3 Repair DH-B1
Related Products
-
Manual Bga Rework Station Reballing Heater With Optical Alignment Sysem for Vga Bga Repair DH-G200US$ 1,000 - 5,000MOQ: 1 Set -
3 Zone BGA Rework System Reballing Bga Notebook With Soldering Iron 2 in 1 Heater DH-390US$ 500 - 1,200MOQ: 1 Set
-
Dinghua Best Price HD Touch Screen Bga Rework Station Repir Station, Motherboard Repair Chip Level DH-380US$ 600 - 1,000MOQ: 1 Set
-
Dinghua Led Work Station With Digita Panel Meter for Motherboard Soldering and Desoldering Repair Station DH- A09LUS$ 400 - 899MOQ: 1 Set
-
Dinghua HD Touch Screen Bga Rework Station,smt Soldering Machine for Led Chip DH-380US$ 600 - 1,000MOQ: 1 Set
Specification:

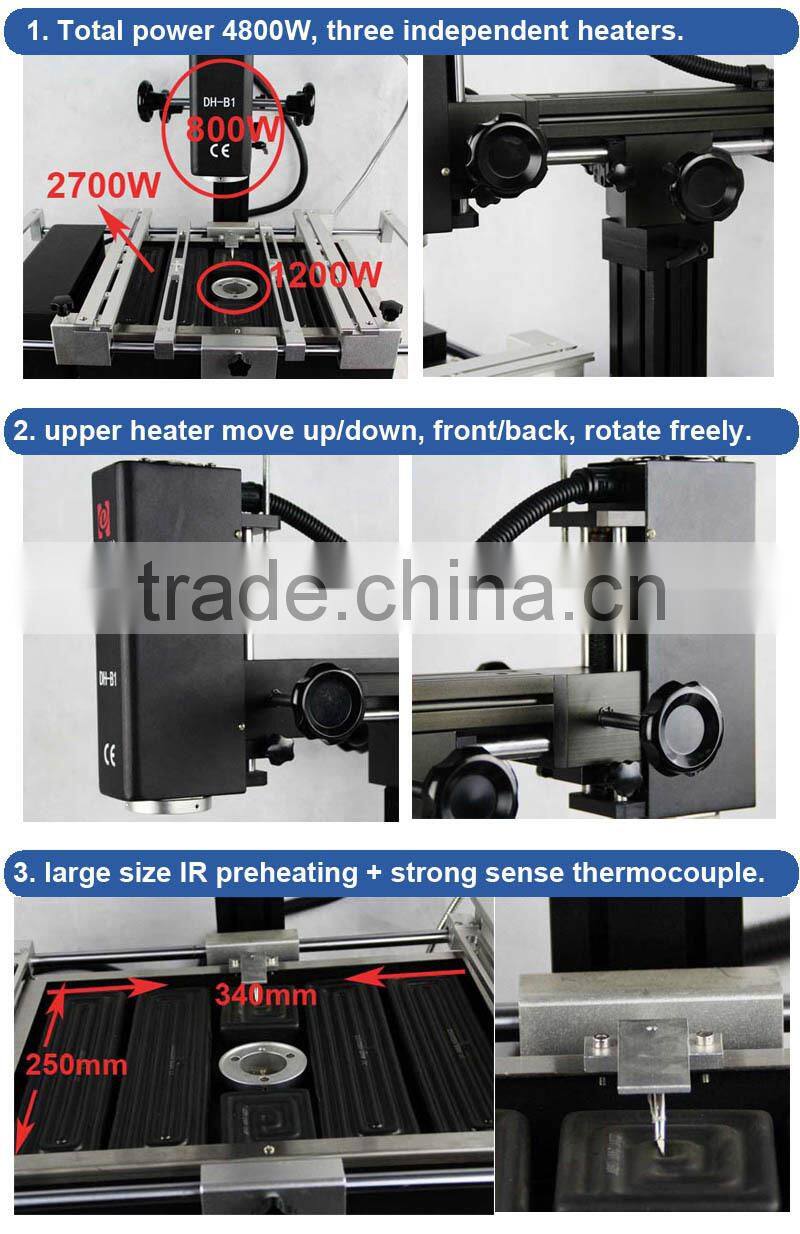

Total Power | 4800W |
Top heater | 800W |
Bottom heater | 2nd 1200W, 3rd IR heater 2700W |
Power | AC220V±10% 50Hz |
Lighting | Taiwan led working light, any angle adjusted. |

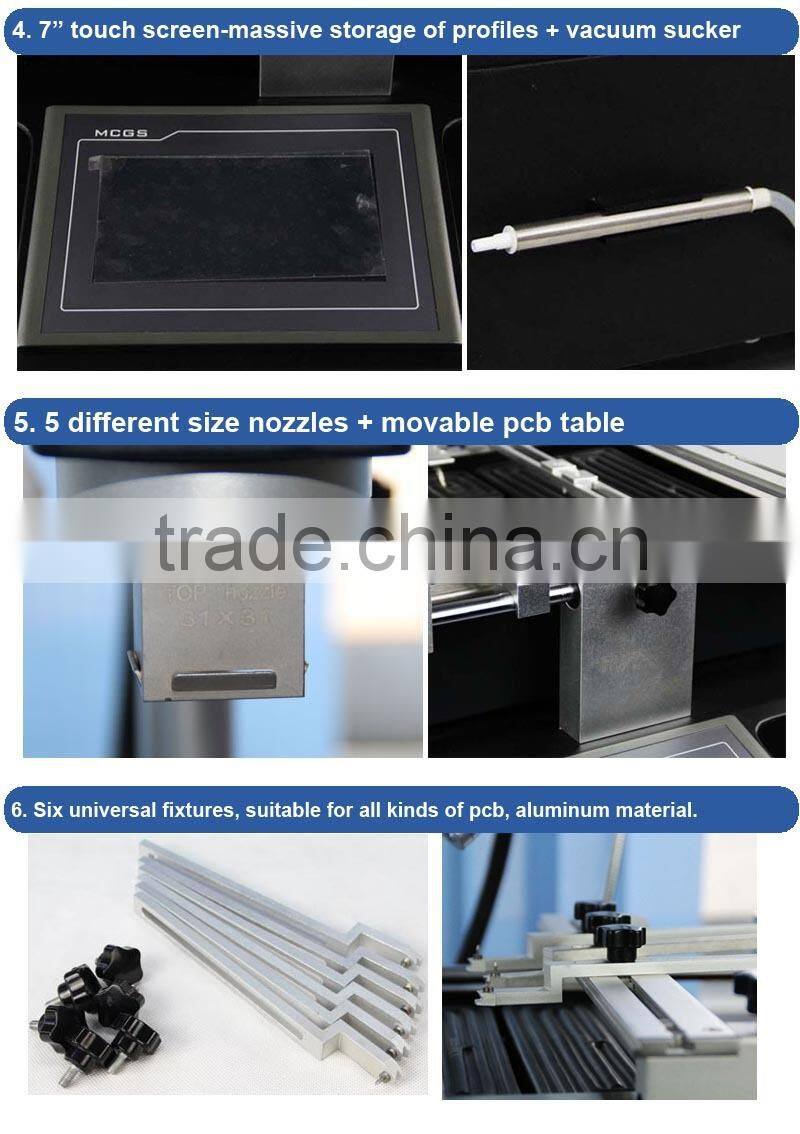

Operation mode | Drawer style HD touch screen, intelligent conversational interface, digital system setting |
Storage | 50000 groups |

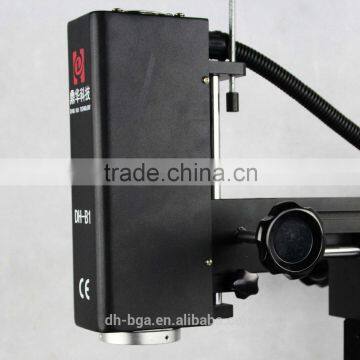

Top heater movement | Right/left, frontward/backward, rotate freely. |
Positioning | Intelligent positioning, PCB can be adjusted in X, Y direction with “5 points support” + V-groov pcb bracket + universal fixtures. |
Temperature control | K sensor, close loop |
Temp accuracy | ±2℃ |
PCB size | Max 440×390 mm Min 22×22 mm |
BGA chip | 2x2 mm - 80x80 mm |
Minimum chip spacing | 0.15mm |
External temper sensor | 1pc |
Dimensions | 610*620*560mm |
Net weight | 36KG |
B1 Main Features:
HD touch screen interface, PLC control.
Three independent heaters all can set 8 segments heating, cooling and constant temperature, saved temperature profile is unlimited. IR preheat area can be controlled according to PCB size
K-sensor close loop control and automatic temperature compensation system. It combines with
temperature module, which enables temperature accuracy to ±2°C
Moveable heater, easy to operate.
Hot air nozzles, 360 degree rotation, easy to install and replace, customized is available.
V-groove PCB support for rapid, convenience and accurate positioning that fits for all kinds of PCB board.
Powerful cross flow fan, cooling the PCB board efficient after heating, to prevent it from deformation.
Sound hint system. There is an alarm before the completion of each desoldering and soldering.

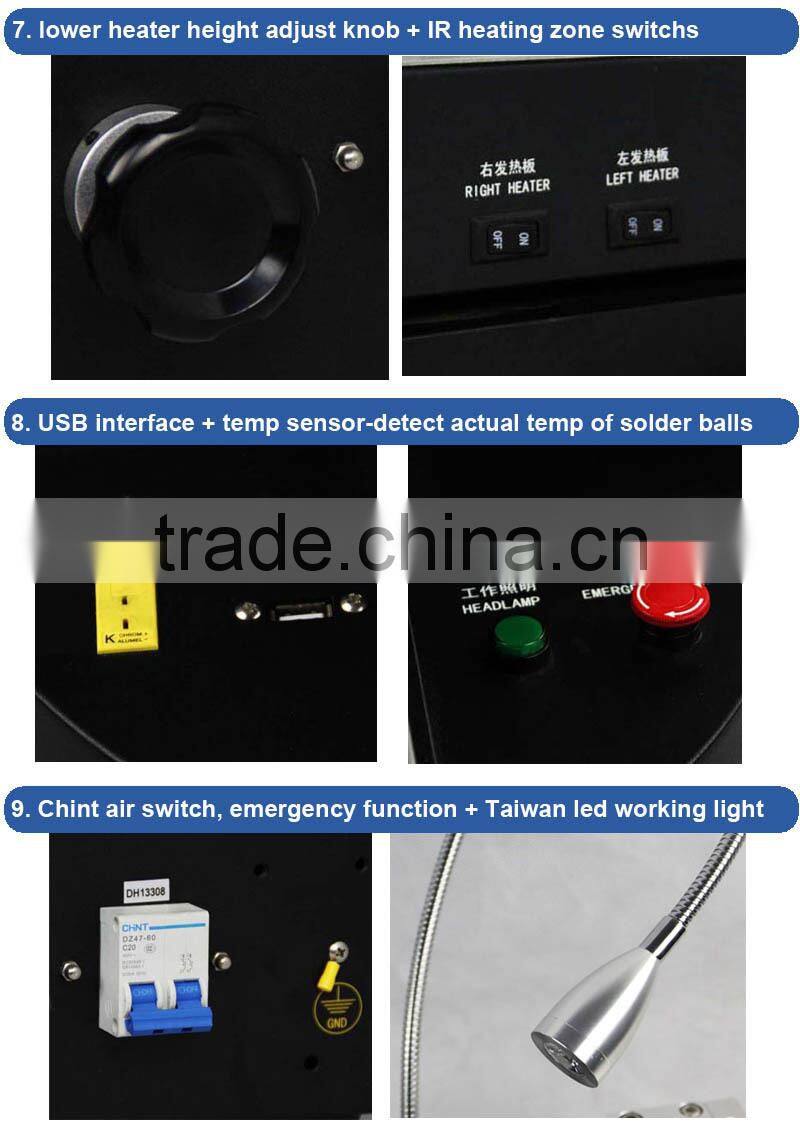

Safety protection, with emergency switch and automatic power-off protection device when emergency happens
