Dinghua Smt Smd Placing Machine Bga Reballing Kit for Notebook Laptop DH-A09L

Dinghua Smt Smd Placing Machine Bga Reballing Kit for Notebook Laptop DH-A09L photo-1

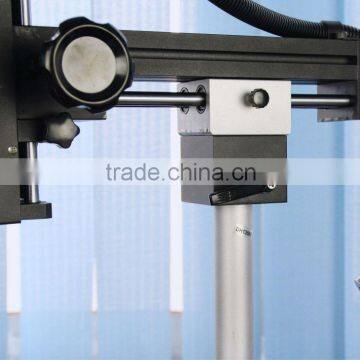

Dinghua Smt Smd Placing Machine Bga Reballing Kit for Notebook Laptop DH-A09L photo-2

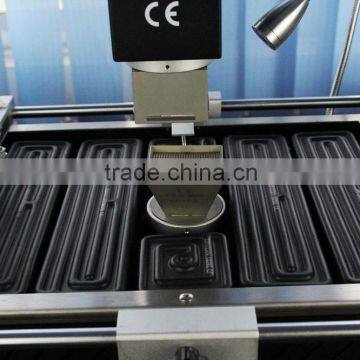

Dinghua Smt Smd Placing Machine Bga Reballing Kit for Notebook Laptop DH-A09L photo-3

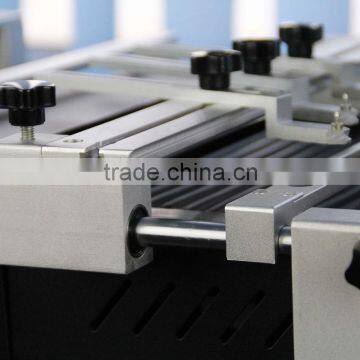

Dinghua Smt Smd Placing Machine Bga Reballing Kit for Notebook Laptop DH-A09L photo-4
Dinghua Smt Smd Placing Machine Bga Reballing Kit for Notebook Laptop DH-A09L photo-5

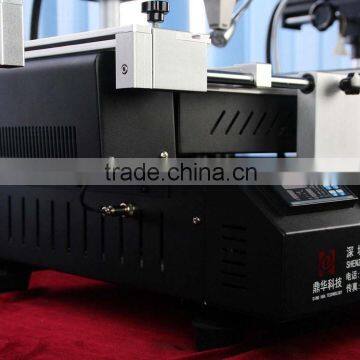

Dinghua Smt Smd Placing Machine Bga Reballing Kit for Notebook Laptop DH-A09L photo-6
US$ 500 - 900 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
DingHua
Model Number:
DH-A09L
Payment & Shipping
Payment Methods:
Port of Shipment:
Shenzhen / Hongkong
Delivery Detail:
Delivery time depends on order quantity.
Place of Origin Guangdong, China
Brand Name DingHua
Model Number DH-A09L
Voltage AC220V±10% / 110V 50/60Hz optional
Current 20A
Rated Capacity None
Rated Duty Cycle None
Dimensions 560x510x560mm
Weight approx 28 KG
Usage smt smd placing machine
Certification CE ISO 9001 2008 ROHS
After-sales Service Provided Engineers available to service machinery overseas

Dinghua Manufacturer

-- Promote our machine, get big profit

-- You win, We win!

Dinghua smt smd placing machine bga reballing kit for Notebook Laptop DH-A09LDinghua smt smd placing machine bga reballing kit for Notebook Laptop DH-A09LDinghua smt smd placing machine bga reballing kit for Notebook Laptop DH-A09LDinghua smt smd placing machine bga reballing kit for Notebook Laptop DH-A09L



Dinghua smt smd placing machine bga reballing kit for Notebook Laptop DH-A09L

 Dinghua smt smd placing machine bga reballing kit for Notebook Laptop DH-A09LDinghua smt smd placing machine bga reballing kit for Notebook Laptop DH-A09L





DH-A09L Details and Warranty:



Warranty: Three years warranty for heater wires, one year for other parts of machine. (Two years longer than other companies)



Dinghua smt smd placing machine bga reballing kit for Notebook Laptop DH-A09LDinghua smt smd placing machine bga reballing kit for Notebook Laptop DH-A09LDinghua smt smd placing machine bga reballing kit for Notebook Laptop DH-A09LDinghua smt smd placing machine bga reballing kit for Notebook Laptop DH-A09L





DH-A09L Specification:



Total Power

4800W

Top heater

800W

Bottom heater

Lower heater: 1200W, Bottom IR: 2700W

Power

AC220V±10%     50/60Hz

Lighting

LED working light, any angle adjustable

Top head movement

Right/left, frontward/backward, rotate freely

Operation mode

Digital panel meter controller

Storage

Store 10 groups of temperature profile

Positioning

Intelligent positioning, PCBA can be adjusted in X, Y direction with “5 point support” + V-groove pcb bracket + universal fixtures,

Temperature control

K SensorClosed loop

Temp accuracy

±2℃

PCB size

Max 400mm*390mm  Min20mm*20mm

BGA chip

2*2~80*80mm

Minimum chip spacing

0.15mm

External temper sensor

1pc

Dimensions

L560*W510*H560 mm

Net weight

Approx 28KG







DH-A09L Packing:

 Dinghua smt smd placing machine bga reballing kit for Notebook Laptop DH-A09L







Rework Spart parts:



Dinghua smt smd placing machine bga reballing kit for Notebook Laptop DH-A09L







Dinghua Friends:



Dinghua smt smd placing machine bga reballing kit for Notebook Laptop DH-A09L







Dinghua Certification:

Dinghua smt smd placing machine bga reballing kit for Notebook Laptop DH-A09L
