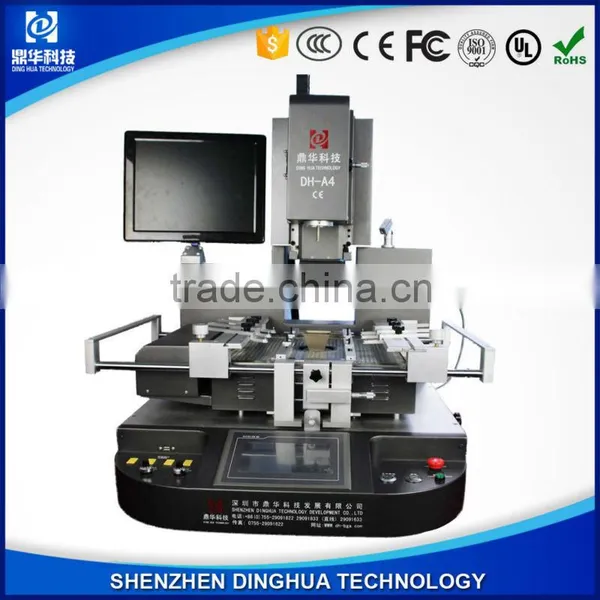

Dinghua DH-A4 Automatic Pcb Pick and Place Machine for Desktop Mobile Motherboard Repair

Dinghua DH-A4 Automatic Pcb Pick and Place Machine for Desktop Mobile Motherboard Repair thumbnail-1
Dinghua DH-A4 Automatic Pcb Pick and Place Machine for Desktop Mobile Motherboard Repair thumbnail-2
Dinghua DH-A4 Automatic Pcb Pick and Place Machine for Desktop Mobile Motherboard Repair thumbnail-3
Dinghua DH-A4 Automatic Pcb Pick and Place Machine for Desktop Mobile Motherboard Repair thumbnail-4
Dinghua DH-A4 Automatic Pcb Pick and Place Machine for Desktop Mobile Motherboard Repair thumbnail-5
Dinghua DH-A4 Automatic Pcb Pick and Place Machine for Desktop Mobile Motherboard Repair thumbnail-6
Dinghua DH-A4 Automatic Pcb Pick and Place Machine for Desktop Mobile Motherboard Repair photo-1
Dinghua DH-A4 Automatic Pcb Pick and Place Machine for Desktop Mobile Motherboard Repair photo-2
Dinghua DH-A4 Automatic Pcb Pick and Place Machine for Desktop Mobile Motherboard Repair photo-3
Dinghua DH-A4 Automatic Pcb Pick and Place Machine for Desktop Mobile Motherboard Repair photo-4
Dinghua DH-A4 Automatic Pcb Pick and Place Machine for Desktop Mobile Motherboard Repair photo-5
Dinghua DH-A4 Automatic Pcb Pick and Place Machine for Desktop Mobile Motherboard Repair photo-6
US$ 13,000 - 17,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Guangdong, China
Brand Name:
Dinghua
Model Number:
DH-A4
Contact Supplier Request Quote Chat Now
Shenzhen Dinghua Technology Development Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
FOB Shenzhen
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Place of Origin Guangdong, China
Brand Name Dinghua
Model Number DH-A4
Voltage AC220V±10% 50/60Hz
Current 35A
Rated Capacity 6800
Rated Duty Cycle 100%
Dimensions L750*W1020*H1000 mm
Weight 91KG
Usage pcb pick and place machine for Desktop Mobile
Certification CE ISO2008 9001
After-sales Service Provided Engineers available to service machinery overseas

Dinghua Manufacturer

-- Promote our machine, get big profit

-- You win, We win!



Dinghua DH-A4 Automatic pcb pick and place machine for Desktop Mobile motherboard repairDinghua DH-A4 Automatic pcb pick and place machine for Desktop Mobile motherboard repairDinghua DH-A4 Automatic pcb pick and place machine for Desktop Mobile motherboard repairDinghua DH-A4 Automatic pcb pick and place machine for Desktop Mobile motherboard repair



Dinghua DH-A4 Automatic pcb pick and place machine for Desktop Mobile motherboard repair



Dinghua DH-A4 Automatic pcb pick and place machine for Desktop Mobile motherboard repairDinghua DH-A4 Automatic pcb pick and place machine for Desktop Mobile motherboard repair





DH-A4 Details and Warranty:





Warranty: Three years warranty for heater wires, one year for other parts of machine. (Two years longer than other companies)

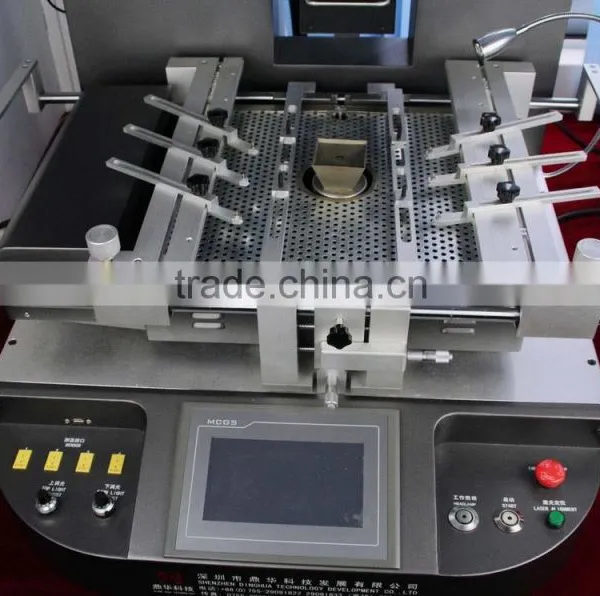

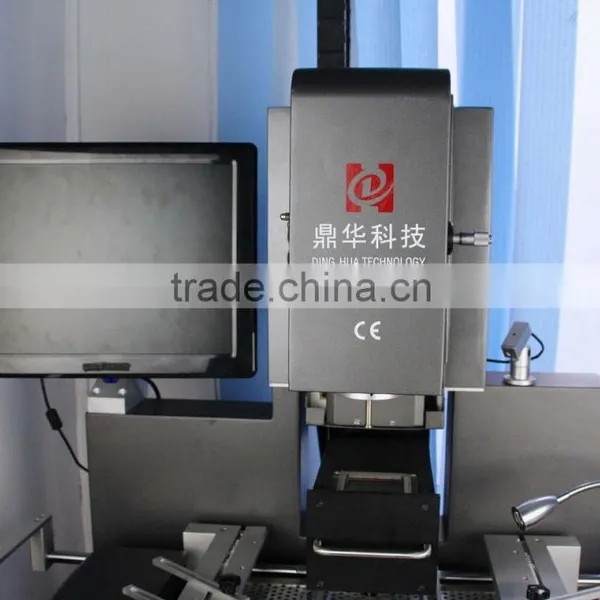

1. Heating head and placement head 2 in 1 design.         2.  High difinition monitor, to view solders



Dinghua DH-A4 Automatic pcb pick and place machine for Desktop Mobile motherboard repair              Dinghua DH-A4 Automatic pcb pick and place machine for Desktop Mobile motherboard repair

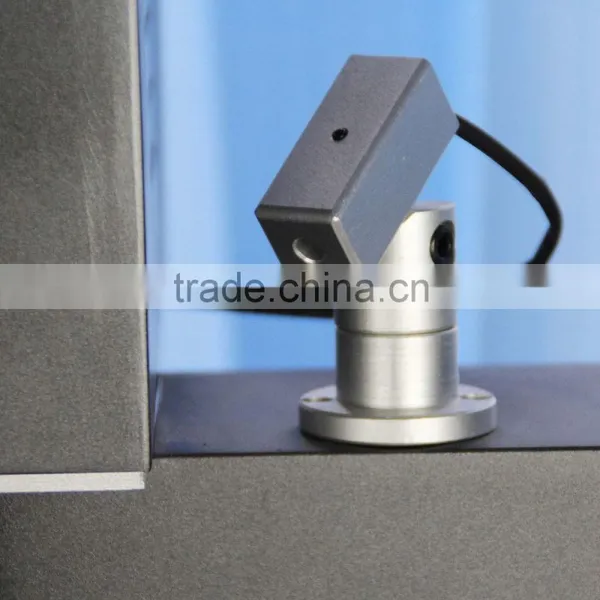

3. Optical aligment system, Panasonic camera                 4. Laser position, fast pcb placement



Dinghua DH-A4 Automatic pcb pick and place machine for Desktop Mobile motherboard repair              Dinghua DH-A4 Automatic pcb pick and place machine for Desktop Mobile motherboard repair

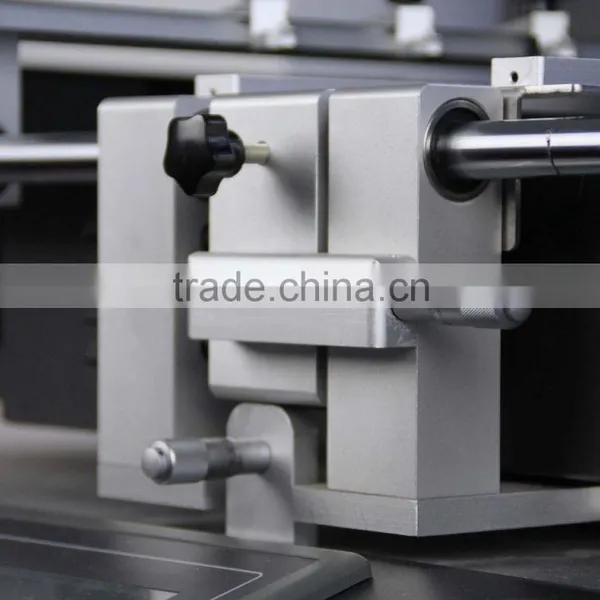

5.  BGA angle adjustment knob for alignment               6. micrometer, fine-tuning position of pcb for align

Dinghua DH-A4 Automatic pcb pick and place machine for Desktop Mobile motherboard repair                       Dinghua DH-A4 Automatic pcb pick and place machine for Desktop Mobile motherboard repair





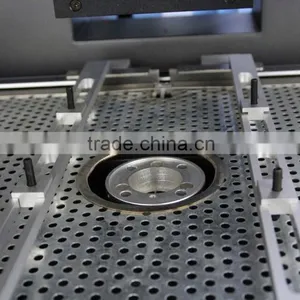

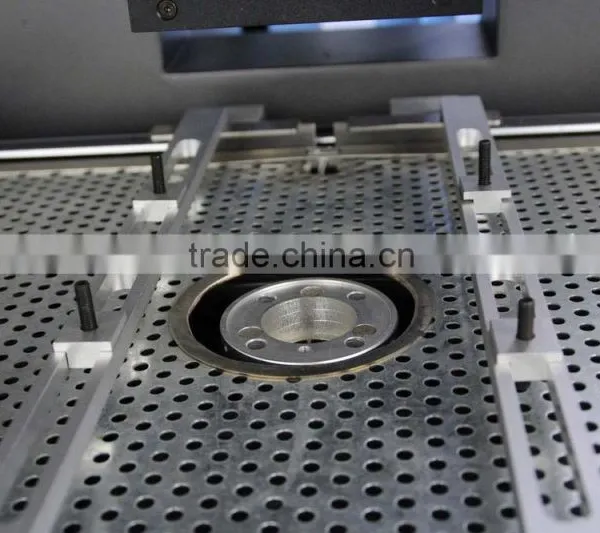

7, 4pcs temper sensors available                                    8. 4pcs switches of side heaters, save power.



 Dinghua DH-A4 Automatic pcb pick and place machine for Desktop Mobile motherboard repair         Dinghua DH-A4 Automatic pcb pick and place machine for Desktop Mobile motherboard repair













DH-A4 Specification:



Total Power

6800W

Top heater

1200W

Bottom heater

2nd 1200W, 3rd IR heater 4200W

Power

AC220V±10%     50Hz

Operation mode

Two modes: manual and automatic.

HD touch screen, intelligent man-machine, digital system setting.

Optical CCD camera lens

Frontward / backward, right / left

Camera magnification

10x - 220x

Workbench fine-tuning:

±15mm forward/backward,  ±15mm right/left

BGA positioning

Laser position, fast and accurate position of pcb and bga

PCB Positioning

Intelligent positioning, PCB can be adjusted in X, Y direction with “5 points support” + V-groove pcb bracket + universal fixtures.

Temperature control

K sensor, close loop, PLC control

Placement accuracy:

±0.01mm

Temp accuracy

±1℃

Lighting

Taiwan led working light, any angle adjustable

Temperature profile storage

50000 groups

PCB size

Max 530*490 mm Min 22*22 mm

BGA chip

2x2 - 80x80 mm

Minimum chip spacing

0.15mm

External temper sensor

1pc

Dimensions

780x740x890mm

Net weight

97KG









Rework Spart parts available:
