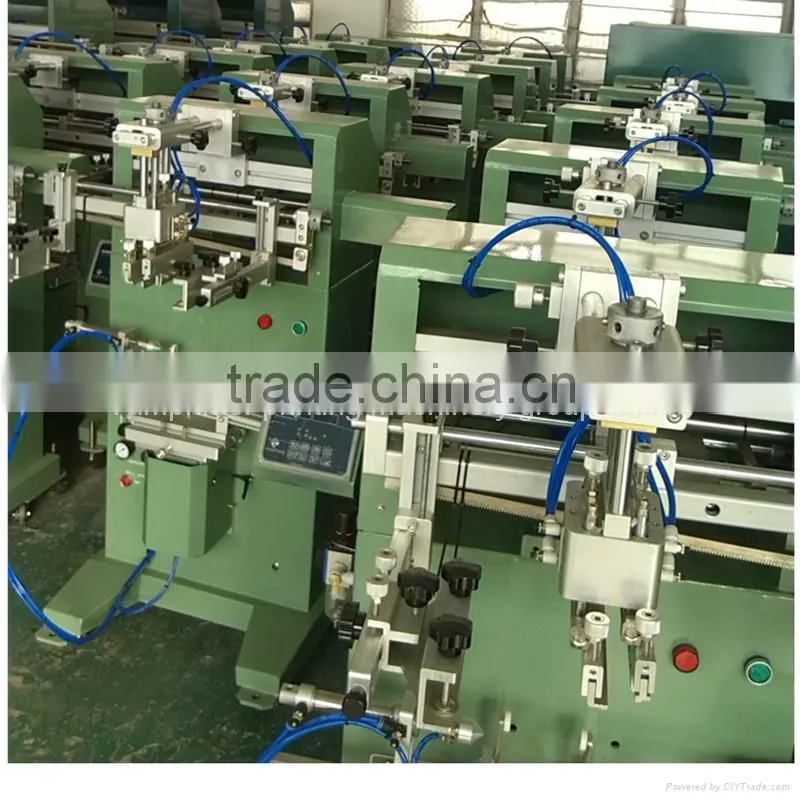

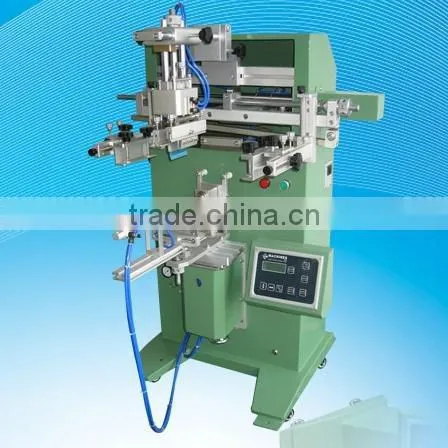

TM-250S small size cylinder screen printer for pencil printer
this pencil screen printing machine is one of our best sellers, here are some informations
Max diameter printing |
DIM≤80mm |
Workpiece inclination |
about +14degree--- -7degree |
Max printing speed |
1200pcs/h |
Air consumption |
110litre/min(6bar) |
Power |
110/220V 60/50Hz |
Dimensions |
950X840X1300mm(LXWXH) |
Weight |
80kg |
Machine features:
1.The screen printer is with microcomputer control , high automatic functions, easy setting and operation.
2. The screen printing machine adopts the component from Germany, the function can be trustiness.
3. The oil return and scraper double mould, meet the every kind of the printing requirements.
4. The printing route and the speed can adjustment, satisfied with the all kinds of printing requirements.
5. Our screen printer can balance the scraper by itself, to ensure the printing pressure equality.
6. Use the import axes, axile bush made the screen scraper placidity slide printing.
7. The slide speed can adjustment independently, it is convenient and fast.
8. Changing the fixture can print circle, elliptic, plane and benefit maximization.
Random accessories:
One Tool box one piece of Chinese specifications one set of tongs one set of Allen key. One set of Philip's head screw ,one of the located air cylinder.
