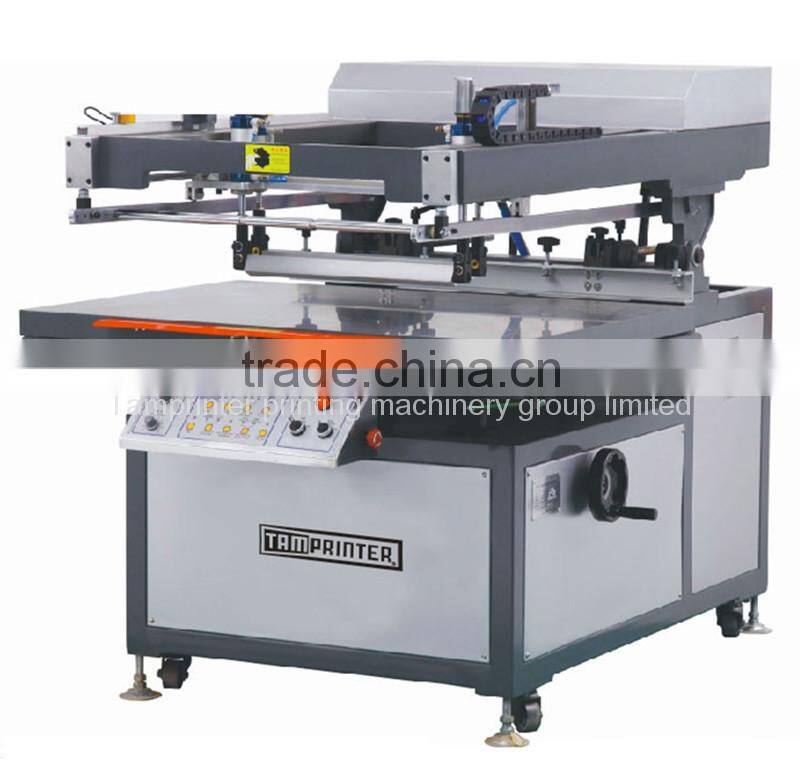

TMP-90120-B 900X1200mm Oblique Arm CE Screen Printing Machine for Sale
- 50 Set / Sets per Month
- Shenzhen
- T/T L/C Credit Card PayPal
- TM-MK large size cylinder steel drum screen printer
- TM-300E cheap round bottle screen printer
- TM-700PT High Precision Vacuum Flat Machine Screen Printer
- TAM-6080s cheap flat manual screen printer
- TM-MK large size cylinder screen printer for drum/pail/keg/bucket Quality Choice
- Tam-1224D Economic Manual Glass Screen Printing Machine
Product Details
Condition: | New | Place of Origin: | Guangdong, China | Brand Name: | Tamprinter |
Model Number: | TMP-90120 | Usage: | Card Printer, Cloths Printer, Label Printer, Paper Printer | Automatic Grade: | Automatic |
Voltage: | 380/50HZ | Gross Power: | 3.7kw | Dimensions(L*W*H): | 1800X1400X1300mm |
Weight: | 550kg | Certification: | CE Certification | Warranty: | 1 Year |
After-sales Service Provided: | Overseas third-party support available |
Packaging Details
This Screen Printing Machine is packed with strong Plywood Case/Wooden Case/or packed as required
Product Description
TMP-90120-B 900X1200mm Oblique Arm CE Screen Printing Machine for Sale
Technical parameters:
Model No. | TMP-90120-B |
Workbench area | 1000X1300mm |
Max printing area | 900X1200mm |
Min screen size | 650X700mm |
Thickness of print (mm) | 0~50 |
Source power (kw) | 3.7 |
Rated voltage (v/hz) | 380/50HZ |
Printing speed (pcs/h) | 400-1000 |
Machine size(mm) | 1800X1400X1300mm |
Max table height | 820 |
weight | 550kg |
1 set 900mm length squeegee holder with 920mm length scraper;
1 set 1200mm length squeegee holder with 1220mm length scraper.
total 2 set
Application:
Flat Screen Printer of this series is widely used in the packaging industry (cigarette packaging, wine packaging, gift packaging and other card paper printing) trademark, calendar, oil painting, computer keyboards, paintings, iron-on transfers, credit cards, stickers, printing; also suitable for the printing of the electronics industry.
Features:
(1). This screen printing machine is driven by motor drive, which is belt drive, sensitive, balanced speed, speed adjustable.
(2). Oblique arm lifting motor, frequency control, the machine runs smoothly.
(3). Blade and back blade pressure regulating device, and can be adjusted to the thickness and size of printing.
(4). Vacuum adsorption fixed printing pieces.
(5). The printing plate has up and down, left and right, before and after tuning device, which makes it works accurate and convenient on board.
(6). Equipped with a safety device so that the oblique arm is stopped in an upper position having a reliable security.
(7). Electronic control unit centralized control by the microcomputer controller, the whole operation more simple, flexible, and easy maintenance.

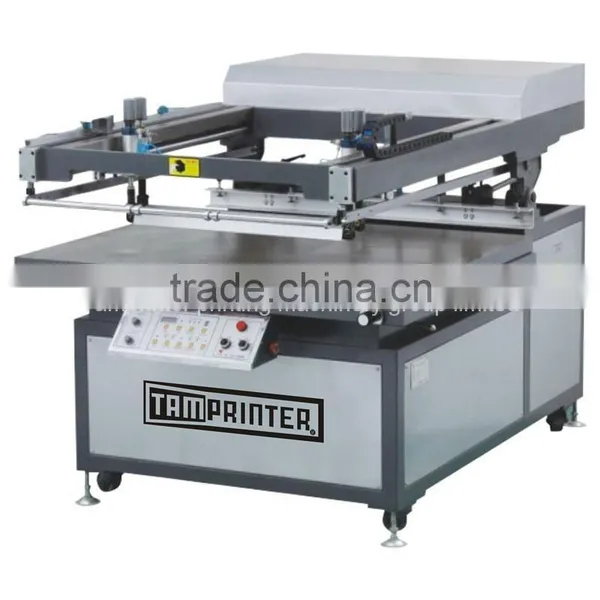

Product Image:
