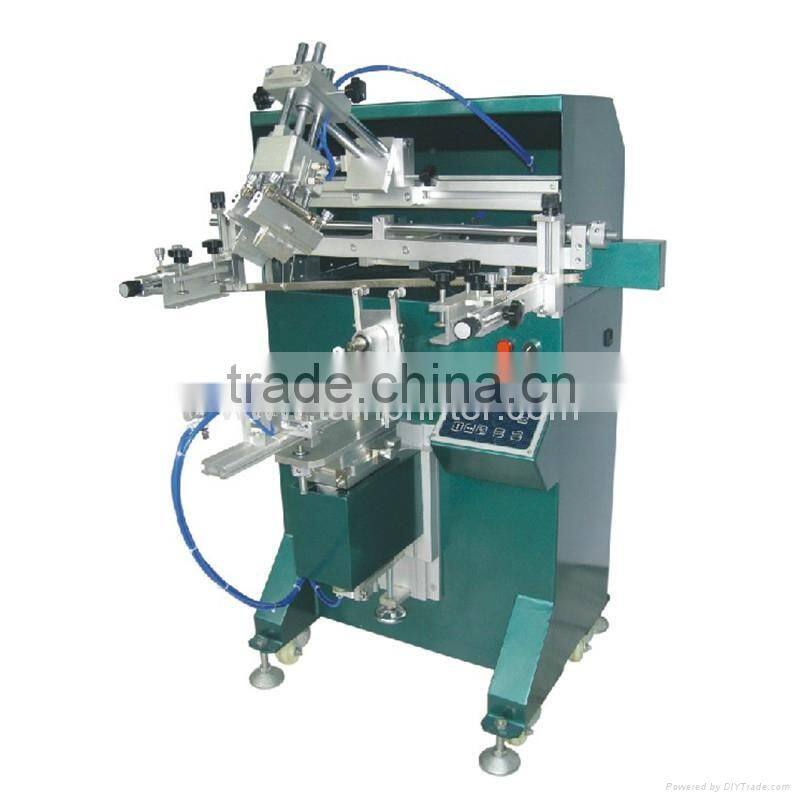

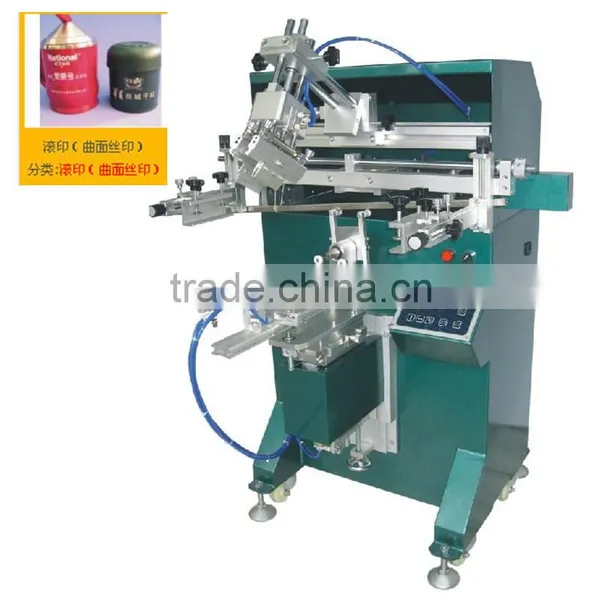

TM-300E cheap round bottle screen printer
this cylinder tampo printer is one of our best sellers, here are some informations.
Max printing diameter | ≤95mm |
Work piece inclination | About +14°---- -7° |
Max printing speed | 1200pcs/hr |
Air consumption | 110litre/min(6bar) |
Power | 110/220V 60/50Hz |
Dimensions (LXWXH) | 1040X950X1480mm |
Weight | 140kg 1.462CBM |
Features:
1. With microcomputer control, utility function, easy setting and operation.
2. Adopt the component from Germany, the function can be trustiness.
3. The oil return and scraper double mould, meet the every kind of the printing requirements.
4. The printing route and the speed can adjustment, satisfied with the all kinds of printing requirements.
5. The slide speed can adjustment independently, it is convenient and fast.
6. Use the import axes and sleeve made the screen scraper placidity slide printing.
7. Can balance the scraper by itself, to ensure the printing pressure equipment.
Application:
These kinds of machines are suitable to surface printing on cylinder and oblate products which can be the plastic, vitreous, ceramic, wooden and steel materials. For example: Lipstick envelope, bottle of the cosmetic. Detergent bottle. Drink bottle, cup, packed bed filter and jar.
Random accessories:
One Tool box one piece of Chinese specifications one set of tongs one set of Allen key. One set of Philip's head screw ,one of the located air cylinder.
