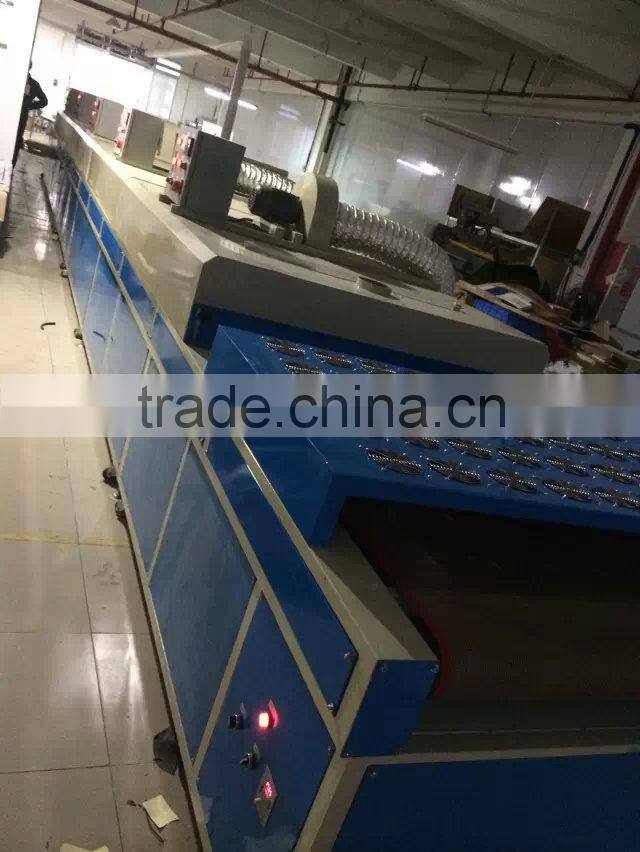

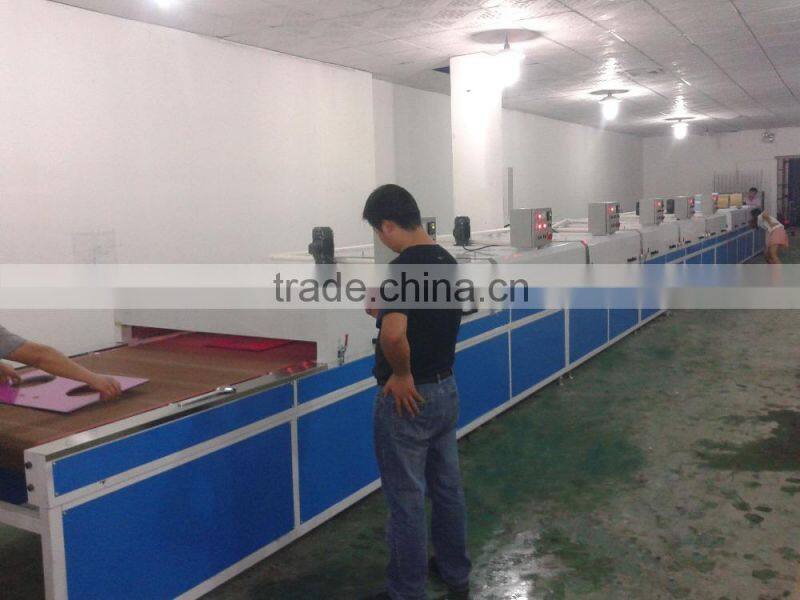

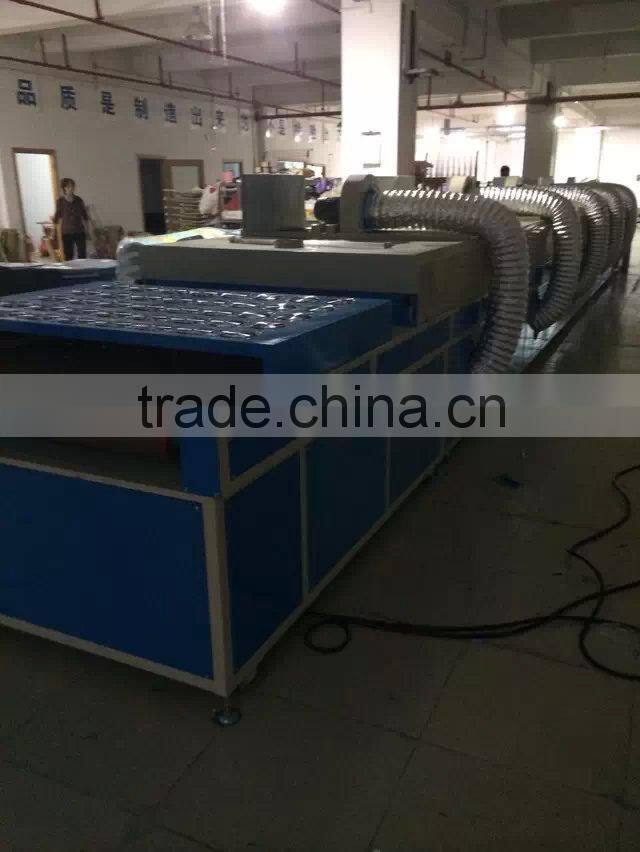

TM-IR3000-20 Glass infrared tunnel dryer
TM-IR1500-15 IR tunnel is widely used in printing machinery, here are some informations
| L*W*H | 3200*1900*1240MM |
| sus Belt to earth | 0.75M |
| Total wattage | 70KW |
| Wind fan wattage | 150W/220V*20 |
| Conveyer motor wattage | 90W/1P/220V |
| ConveyEr speed | 0~25m/min |
| Speed adjustment | Stepless |
| Heater Lamp wattage | 1.5Kw/220V×45pcs |
| Max height of production | 100mm |
| Weight | 3000kg |
| Conveyer width | 2000mm |
| Entering length | 1m |
| Heat area | 10m |
| Cool area Length | 3m |
| Exit length | 1m |
| Total Length | 15m |
+
15m glass infrared tunnel dryer Technology
Tamprinter Infrared Convection Oven ( shortwave )
1 imported shortwave infrared light radiation heating tube furnace used in all mirror panel system , equipped with special light tube reflector , can be 100% of all light reflection to the surface.
(2) using a uniform hair dedicated exclusively internal circulation duct temperature is very uniform.
3 equipped with imported light pipe dedicated controller, the frequency of light waves even control, the light pipe 100% to play full-wave energy, using current stable of 100% energy saving effect.
4 stainless steel chain and belt driven , easy to go astray , to load heavy metal category of products, with a special adjustment of the speed and stability.
5 light wavelength 0.76-1.6um, the strongest penetration , suitable transformer plant , electrical plant and other metal coil dipping baked or roasted dispensing electronic products .
Tamprinter Infrared Convection dryer ( MW )
1 medium-wave infrared light tubes imported radiant heating furnace used in all mirror panel production, with special reflector tube light , can be 100% of all light reflection to the surface.
(2) using a uniform temperature of the inner loop hair exclusive special duct temperature is very uniform.
3 equipped with imported light pipe dedicated controller, the frequency of light waves even control, the light pipe 100% to play full-wave energy, using current stable of 100% energy saving effect.
4 imported Teflon Wimbledon with a high resistance to rotation , suitable for the size class range of products , with a power converter, speed and stability .
5 light wavelength 0.76-3.6um, the surface absorbed the best baked products , such as glass, printing, textile printing , spray drying surface coating industry .
Tamprinter Infrared Convection tunnel
Drying principles outlined
Conventional oven heating pipe heating using heat from the heated surface of the object to its internal thermal conductivity , so the heating process is slow, uneven heating , and some products first love hot conjunctival surface cause internal moisture can not get out , easy to produce bubbles or deformation.
Infrared Convection Oven is the use of energy efficient infrared light tubes imported produce infrared electromagnetic radiation directly to the object , so that objects within the molecular oscillation , internal and external heat simultaneously ,quickly and thoroughly remove the moisture inside the object , the surface will not get out of the water inside the first dry produce surface blistering, internal roasted quit and so on.
Energy efficient advantages:
1 Energy: Infrared Convection Oven power than ordinary furnace small 1 / 3 , warming fast start ( 2-10 points can be raised to 200 degrees ) , the thermostat automatically reduces small current wave ( energy savings of 30% -70 % )
(2) Efficient : Infrared Convection Oven direct radiation makes the product molecular oscillation product , so the product simultaneously inside and outside heat, fast drying product moisture , direct -saving 5-10 times .
(3) quality and stability : infrared light to heat pipe heat inside and outside at the same time , the internal water discharged in time , the product surface is not easy to blister, uniform color appearance .
4 Green Explosion : Infrared Convection Oven baking time is short, short residence time before curing , the time to reduce pollution and harmful gases discharged in time , not stuffy harmful in the furnace , the furnace safe and clean , easy to produce flammable gas deflagration and other risks
