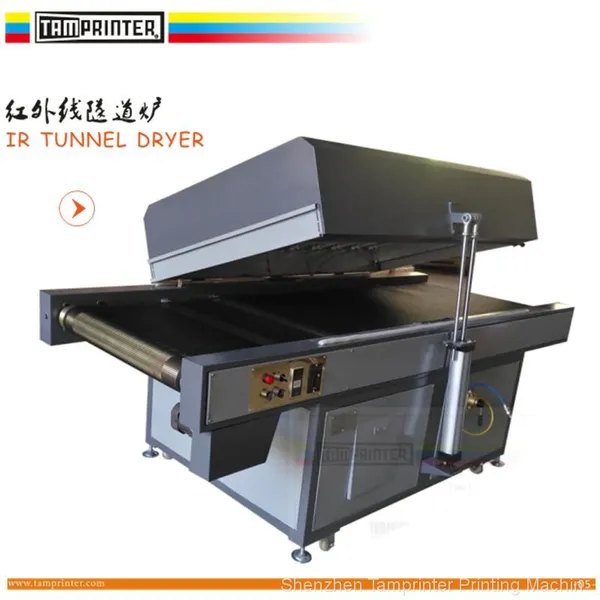

INFRARED dryer
Infrared and circulating air dryer (for separate or combined use) for small parts with electronic temperature control and adjustable belt speed.
Technical information:
TYPE |
TM-IR-B80250 |
TM-IR-B100400 |
TM-IR-B100800 |
TM-IR-B1201400 |
Convey belt width(mm) |
800 |
1000 |
1000 |
1200 |
Effective range (mm) |
800 |
1000 |
1000 |
1200 |
Max thickness of cured (mm) |
40 |
40 |
40 |
40 |
Conveying speed (m) |
2~20 |
2~20 |
2~20 |
2~20 |
POWER(P/V/Hz) |
3/380/50 |
3/380/50 |
3/380/50 |
3/380/50 |

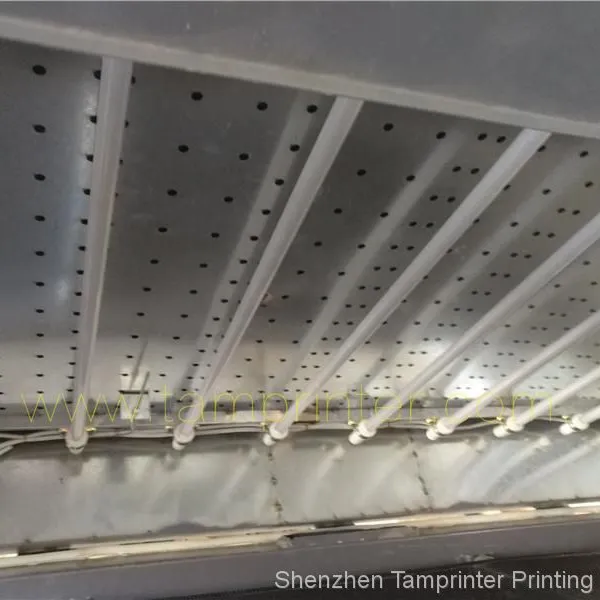

IR lamp（KW） |
9 |
18 |
24 |
30 |
Driving power（W） |
90 |
90 |
90 |
90 |
Total power（KW） |
10 |
19 |
25 |
31 |
SIZE（L*W*H） |
251X120X125 |
401X146X125 |
801X146X125 |
1500X155X145 |
WEIGHT（Kg） |
417 |
800 |
1600 |
2500 |
|
Plywood |
261X131X145cm -1 set |
411X156X145 cm -1 set |
211X156X145 cm -4 set |
260*167*165cm -4set 210*155*100cm-2set 91*65*141cm-1set |
The models -F are equipped with an additional cooling section.
Standard features:
movable machine base
telescope feet for adjustment of belt height
infinitely variable gear motor
Functions of control panel TM-IR-B80250，TM-IR-B100400，TM-IR-B100800，TM-IR-B1201400
Master ON
START/STOP belt drive
speed regulation
warm air circulation
cold air circulation
IR-selection
emergency-stop

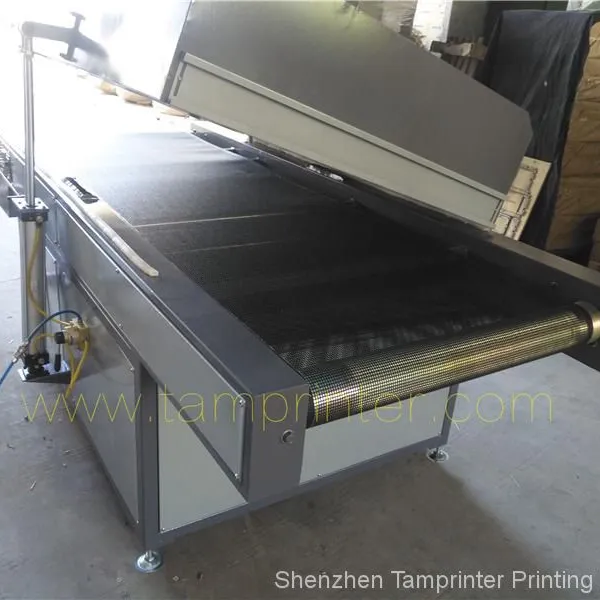

Optional conveyor belt systems
steel mesh (rust-proof)
heat resistant conveyor belt
lamella transport made of rust-proof steel
Price Terms︰exw
Payment Terms︰TT/Western Union
Packing︰plywood
Lead Time︰7
Standards Certificate︰ce
