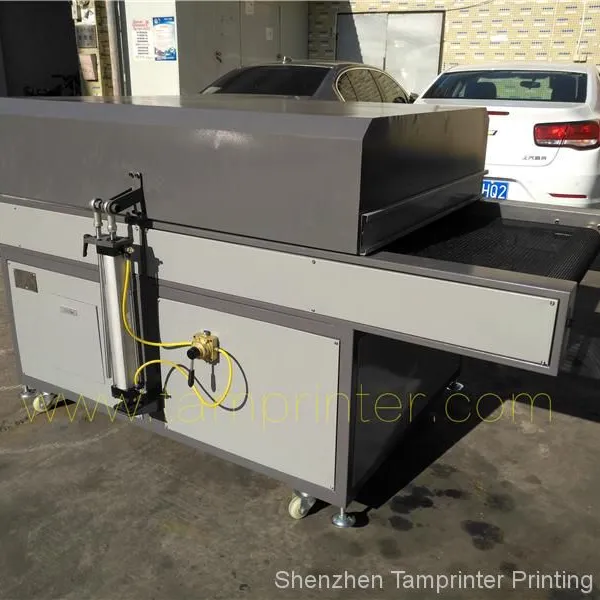

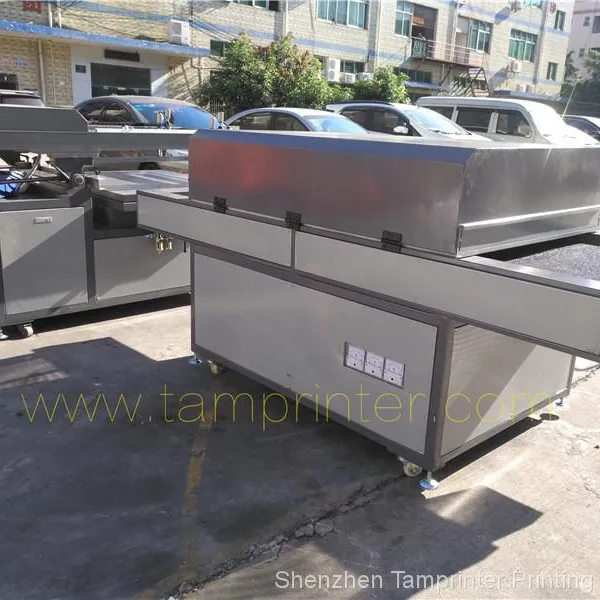

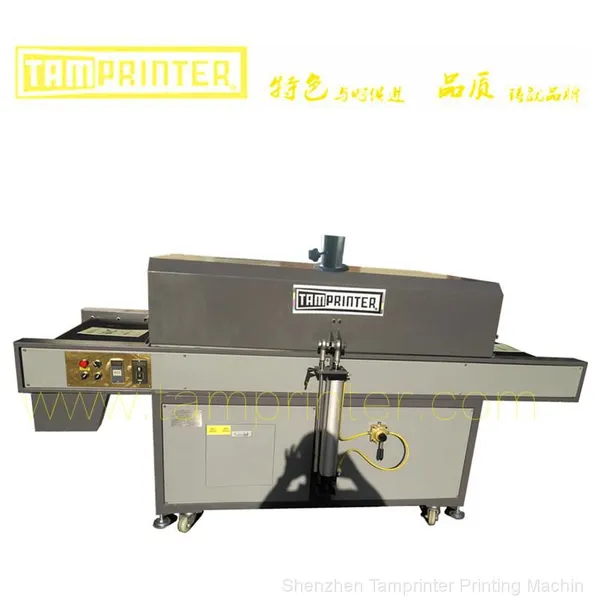

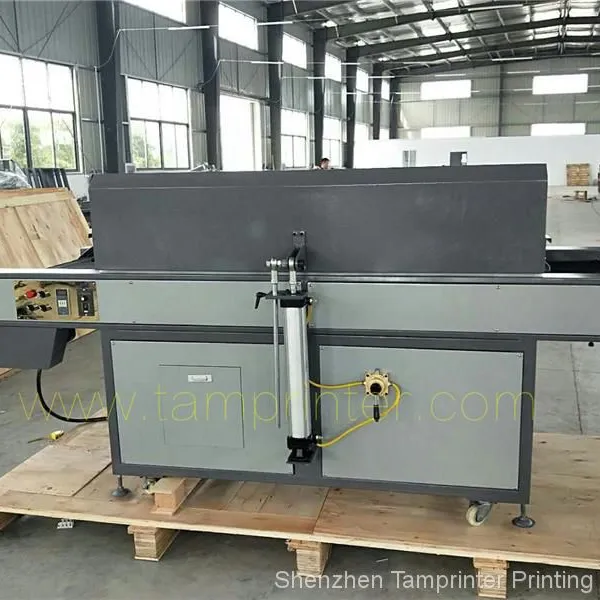

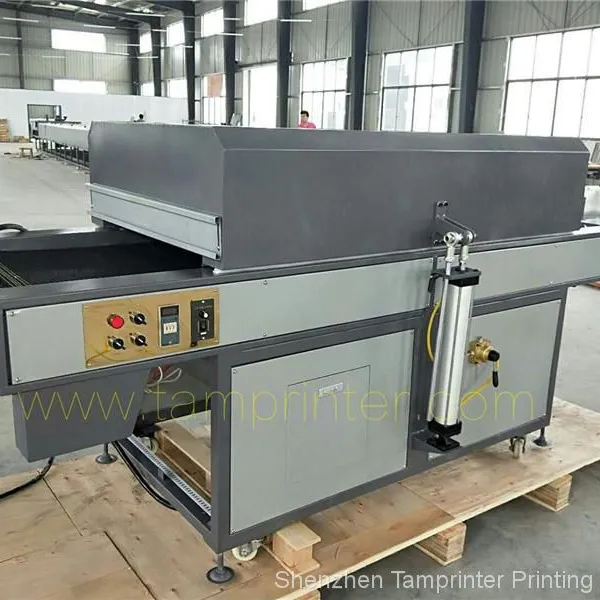

Help CenterIR Tunnel Dryer for After Printing
Related Products
-
IR Dryer for Glass Screen Printing TM-IR-G1501600NegotiableMOQ: 1 Set -
Coat Spraying Dedicated Tunnel Oven Drying LineNegotiableMOQ: 1 Set
-
Ink IR Ovens for t Shirt Sublimation Image TransferNegotiableMOQ: 1 Set
-
5m Industrial Fabric Yarns Mid-wave Infrared OvenNegotiableMOQ: 1 Set
-
4 Meter Pcb Infrared Dryer Thermal Radiation Tunnel Electric Heat OvenNegotiableMOQ: 1 Set
Conveyor(L*W*H) 2510 * 1210 * 1250 mm
Conveyor belt width 800mm
Tunnel height 50mm(Adjustable)
Conveyor belt(material) Teflon
Speed 1-20 meter per min
IR Lamp 1kW*9pcs Quartz tube
Temperature: RM-250 celsius
Motor 90W(step less speed regulation)
Total Power 9.1KW, 380V,3phase 50hz
G.W 240KG
Plywood ： 2.61*1.31*1.45m=5CBM
Top exhaust: 1
Cylinder open cover
| Technical parameters |
TYPE |
TM-IR-B80250 |
TM-IR-B100400 |
TM-IR-B100800 |
TM-IR-B1201400 |
Convey belt width(mm) |
800 |
1000 |
1000 |
1200 |
Effective range (mm) |
800 |
1000 |
1000 |
1200 |
Max thickness of cured (mm) |
40 |
40 |
40 |
40 |
Conveying speed (m) |
2~20 |
2~20 |
2~20 |
2~20 |
POWER(P/V/Hz) |
3/380/50 |
3/380/50 |
3/380/50 |
3/380/50 |
IR lamp（KW） |
9 |
18 |
24 |
30 |
Driving power（W） |
90 |
90 |
90 |
90 |
Total power（KW） |
10 |
19 |
25 |
31 |
SIZE（L*W*H） |
251X120X125 |
401X146X125 |
801X146X125 |
1500X155X145 |
WEIGHT（Kg） |
417 |
800 |
1600 |
2500 |
Price Terms︰ |
exw |
Payment Terms︰ |
TT/Western Union |
Packing︰ |
plywood |
Lead Time︰ |
15 |
Standards Certificate︰ |
ce |
Printing Ink Infrared Oven
Drying Cabinet
Hot Air Drying Ovens
Industrial Screen Dryers
Printing IR Tunnel Dryer
