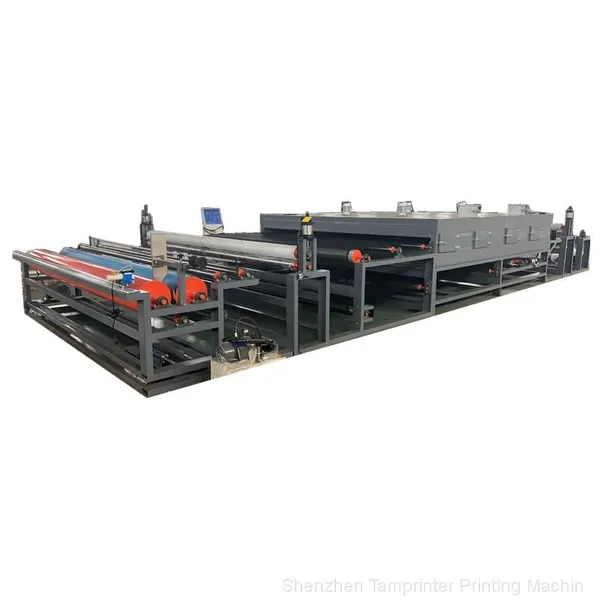

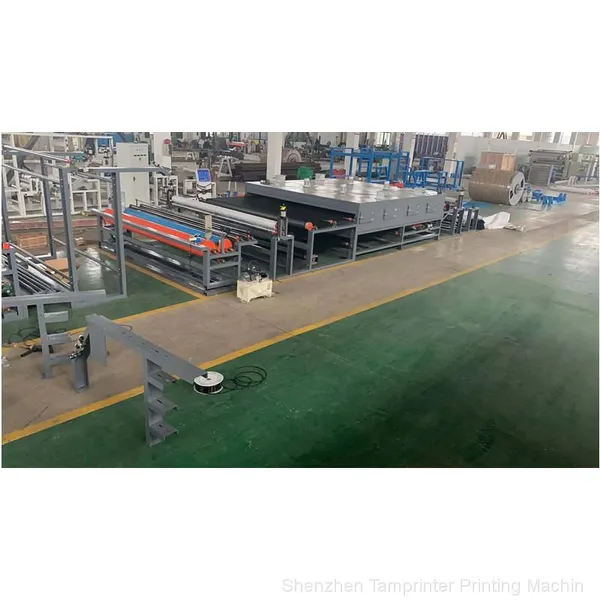

Help Center250 Celsius Fabric Heat Sublimation Ink 3.6m Width Tunnel Dryer
Related Products
-
OEM Roll to Roll Wet Wipes Nonwoven Hot Air Jet Tunnel DryerNegotiableMOQ: 1 Set -
Chinese T-shirts Drying Tunnel Furnace FactoryNegotiableMOQ: 1 Set
-
Singapore pc Film Infrared Furnace Screen Printing Membrane Switch Tunnel DryingNegotiableMOQ: 1 Set
-
Silicone Extension Extrusion Foaming OvenNegotiableMOQ: 1 Set
-
Standard Short IR Printing DryerNegotiableMOQ: 1 Set
Video for 3.6m width iran fabric dryer ：
/p/CJgFaLMAaHP/?igshid=o2nenp6gd2o4
/p/CJgHy85AHFM/?igshid=7qdlaa7mph2h
/p/CJgIICzFxtY/?igshid=qcs4a02p7c5k
/p/CJgIRbblJmL/?igshid=1q3t0y4unwplo
Unwinder equipment
3.6m*0.4m*0.2m
521kg $27000
HS CODE 8514300090

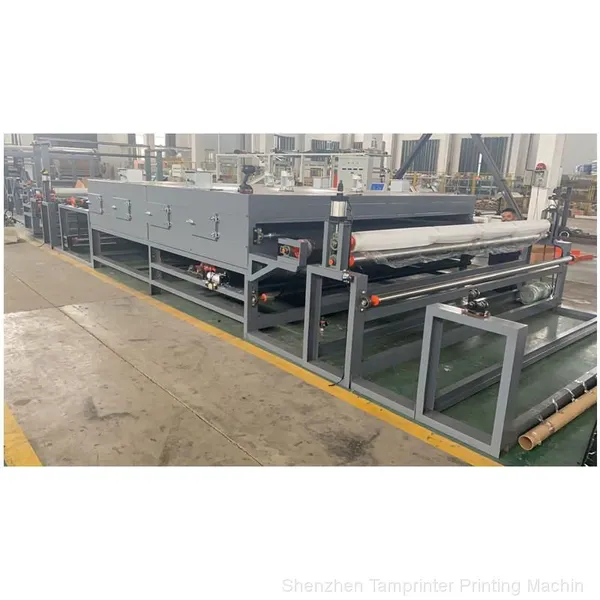

Tunnel dryer
380v / 50 Hz 3 phase
inner liner stainless steel
Inlet 0.3m+heat zone 2+2m+ outlet 1.5m=5.8m
section: 3
RT~250Celsius
Both side open Video door Easy to replace the lamp
Top Internal circulation fan*4PCS*0.375kw
Teflon belt width: 3.2 m
Tunnel width: 3400mm
Belt mesh hole 4 x 4mm
Conveyer speed: 0 ~ 10m / min
Top 2'Exit' fit exhaust smoke adjust CBM/min
Medium wave quartz tube on top
36pcs*1.5kw+other= Total wattage: 57KW
motor that drives the belt for tunnel dryer1.5kw
Outside size 6m*3.8m*1.5m about 2200kg
Outer box material: The outer layer is bent by cold-rolled steel plate material, then welded, and the surface is sprayed with anti-rust treatment.
Insulation material: high temperature cotton compaction filling.
automatic electrical safety cut off in the event of overheating
The outlet height is fixed and not adjustable
equipment appearance color gray 1

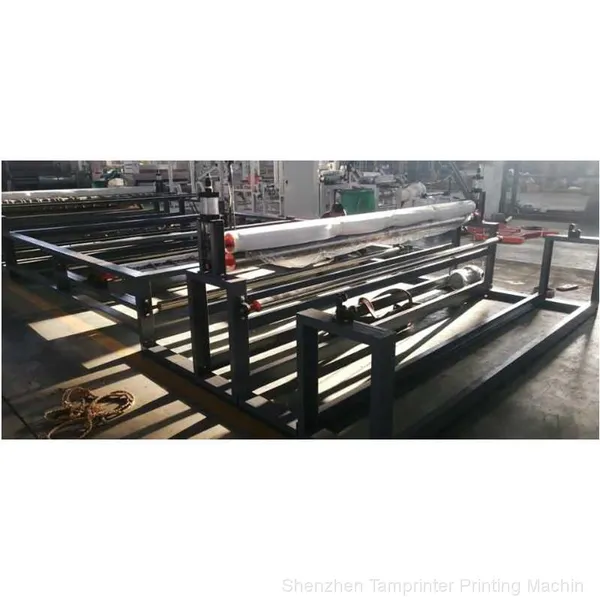

Semi Rewinder machine for 3.2m cloth roller
4.5*1.8*1.8m
1500kg
380v-3 phase
Air source of air compressor: 5KG/㎝2, consumption 200L/min
Reducer 1:35
Auto Cut cloth system as length, Meter control
Run 1~50m/min
Φ240 rewind silicon roller 3500mm---1pcs
3kw Geared motor With frequency conversion-1pcs
Φ240 rewind Steel roller---1pcs
12 Channel steel frame
Φ100 guide axis—2pcs
Φ100 Handwheel (15 Iron rack)---2set
Broken cloth knife—1
Transmission system---1set 1
printing ink Silk screen infrared oven
printing ink Convection Oven
printing ink IR Curing Machine
