Product Details
Brand Name: | TAMPRINTER | Place of Origin: | China | Model Number: | TM-IR5825 |
Type: | Other, Tunnel Infrared Dryer | After-sales Service Provided: | Overseas third-party support available | Condition: | New |
Product Description

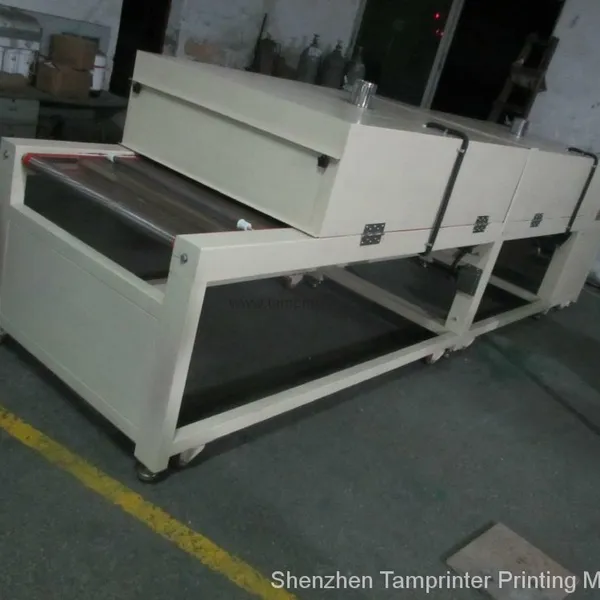

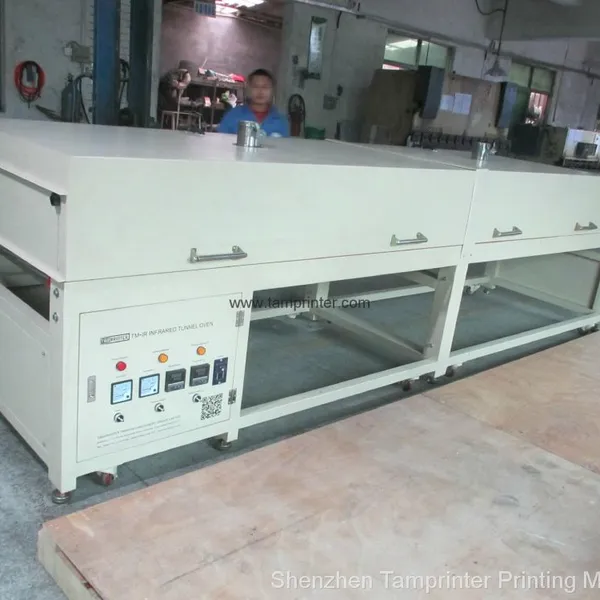

Chinese T-shirts drying tunnel furnace factory
CONVEYOR DRYER MODELSModel No-TM-IR 5825
IR tunnel HS CODE / NCM 8516609000
Parameter | Power/Specification | Remarks |
Dryer Length | 5.8 Meter | |
Dryer Width | 1.25 Meter | |
Belt Width | 1 Meter | |

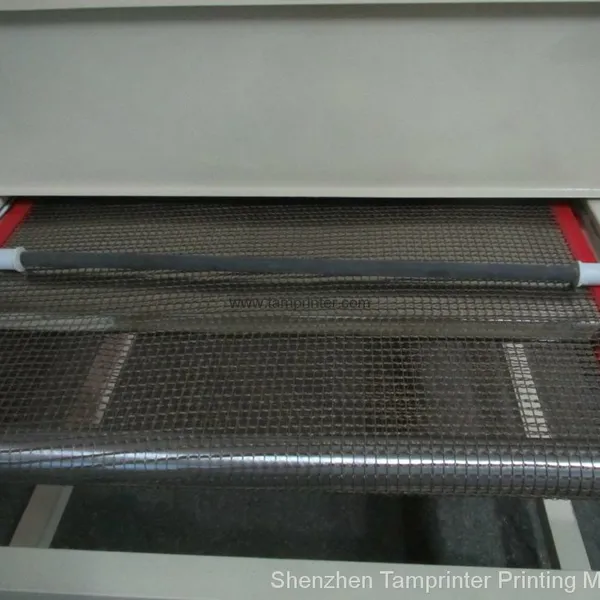

Belt Type | Teflon Belt | |
In-feed | 0.75 Meter | |
Out-feed | 1.05 Meter | 4 cooling fans on exit |
Total Oven | 2 Pcs | |
Total Oven Length | 4 Meter | |
Each Oven Length | 2 Meter | 9 Tubes/ Oven |
Total Tubes | 18 Pcs | |

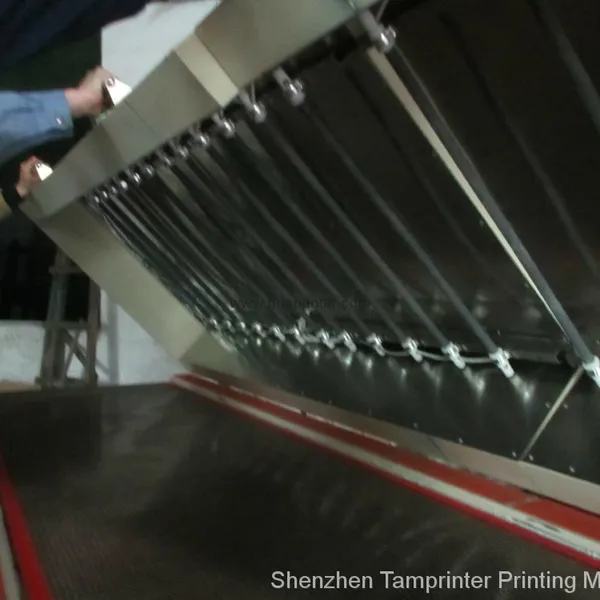

Tube Type | Ceramic | |
Tube Power | 1000 W each | |
Working Power | 3 Phase- 380V/50Hz | |
Belt Motor Power | 90W- 5IK90RGU-CF | Brand- OTG/VTV- 220V/50Hz AC |
Contactor | 90 Amp- 2 Sets | Brand- Chint/Delixi |
Temp Range | 0- 250 Degree C | |
Temp Tolerance | +/- 5 Degree C |
Model No-TM-IR 5845
Parameter | Power/Specification | Remarks |
Dryer Length | 5.8 Meter | |
Dryer Width | 1.45 Meter | |
Belt Width | 1.2 Meter | |
Belt Type | Teflon Belt | |
In-feed | 0.75 Meter | |
Out-feed | 1.05 Meter | 4 cooling fans on exit |
Total Oven | 2 Pcs | |
Total Oven Length | 4 Meter | |
Each Oven Length | 2 Meter | 9 Tubes/ Oven |
Total Tubes | 18 Pcs | |
Tube Type | Ceramic | |
Tube Power | 1300 W each | |
Working Power | 3 Phase- 380V/50Hz | |
Belt Motor Power | 90W- 5IK90RGU-CF | Brand- OTG/VTV- 220V/50Hz AC |
Contactor | 90 Amp- 2 Sets | Brand- Chint/Delixi |
Temp Range | 0- 250 Degree C | |
Temp Tolerance | +/- 5 Degree C |
Model No-TM-IR 6625
Parameter | Power/Specification | Remarks |
Dryer Length | 6.6 Meter | |
Dryer Width | 1.25 Meter | |
Belt Width | 1 Meter | |
Belt Type | Teflon Belt | |
In-feed | 0.75 Meter | |
Out-feed | 1.05 Meter | 4 cooling fans on exit |
Total Oven | 2 Pcs | |
Total Oven Length | 4.8 Meter | |
Each Oven Length | 2.4 Meter | 11 Tubes/ Oven |
Total Tubes | 22 Pcs | |
Tube Type | Ceramic | |
Tube Power | 1000 W each | |
Working Power | 3 Phase- 380V/50Hz | |
Belt Motor Power | 90W- 5IK90RGU-CF | Brand- OTG/VTV- 220V/50Hz AC |
Contactor | 90 Amp- 2 Sets | Brand- Chint/Delixi |
Temp Range | 0- 250 Degree C | |
Temp Tolerance | +/- 5 Degree C |
Model No-TM-IR 6645
Parameter | Power/Specification | Remarks |
Dryer Length | 6.6 Meter | |
Dryer Width | 1.45 Meter | |
Belt Width | 1.2 Meter | |
Belt Type | Teflon Belt | |
In-feed | 0.75 Meter | |
Out-feed | 1.05 Meter | 4 cooling fans on exit |
Total Oven | 2 Pcs | |
Total Oven Length | 4.8 Meter | |
Each Oven Length | 2.4 Meter | 11 Tubes/ Oven |
Total Tubes | 22 Pcs | |
Tube Type | Ceramic | |
Tube Power | 1300 W each | |
Working Power | 3 Phase- 380V/50Hz | |
Belt Motor Power | 90W- 5IK90RGU-CF | Brand- OTG/VTV- 220V/50Hz AC |
Contactor | 90 Amp- 2 Sets | Brand- Chint/Delixi |
Temp Range | 0- 250 Degree C | |
Temp Tolerance | +/- 5 Degree C |
Model No-TM-IR 7825
Parameter | Power/Specification | Remarks |
Dryer Length | 7.8 Meter | |
Dryer Width | 1.25 Meter | |
Belt Width | 1 Meter | |
Belt Type | Teflon Belt | |
In-feed | 0.75 Meter | |
Out-feed | 1.05 Meter | 4 cooling fans on exit |
Total Oven | 3 Pcs | |
Total Oven Length | 6 Meter | |
Each Oven Length | 2 Meter | 10 Tubes/ Oven |
Total Tubes | 30 Pcs | |
Tube Type | Ceramic | |
Tube Power | 1000 W each | |
Working Power | 3 Phase- 380V/50Hz | |
Belt Motor Power | 120W- 5IK120RGU-CF | Brand- OTG/VTV- 220V/50Hz AC |
Contactor | 90 Amp- 3 Sets | Brand- Chint/Delixi |
Temp Range | 0- 250 Degree C | |
Temp Tolerance | +/- 5 Degree C |
Model No-TM-IR 7845
Parameter | Power/Specification | Remarks |
Dryer Length | 7.8 Meter | |
Dryer Width | 1.45 Meter | |
Belt Width | 1.2 Meter | |
Belt Type | Teflon Belt | |
In-feed | 0.75 Meter | |
Out-feed | 1.05 Meter | 4 cooling fans on exit |
Total Oven | 3 Pcs | |
Total Oven Length | 6 Meter | |
Each Oven Length | 2 Meter | 10 Tubes/ Oven |
Total Tubes | 30 Pcs | |
Tube Type | Ceramic | |
Tube Power | 1300 W each | |
Working Power | 3 Phase- 380V/50Hz | |
Belt Motor Power | 120W- 5IK120RGU-CF | Brand- OTG/VTV- 220V/50Hz AC |
Contactor | 90 Amp- 3 Sets | Brand- Chint/Delixi |
Temp Range | 0- 250 Degree C | |
Temp Tolerance | +/- 5 Degree C |
Common Remarks:
All Belt rollers/ belt adjustable rollers should be with best grade nickel
Each machine should have one MCCB inside of control panel
Each machine Belt Speed Control should be stable, noise free belt transmission
Each oven should be controlled by individual Temperature Control Unit
CONVEYOR DRYER MODELS
Model No | Unit Price Set |
5825 | 3600USD |
5845 | 3733USD |
6625 | 4133USD |
6645 | 4267USD |
7825 | 4933USD |
7845 | 5067USD |
