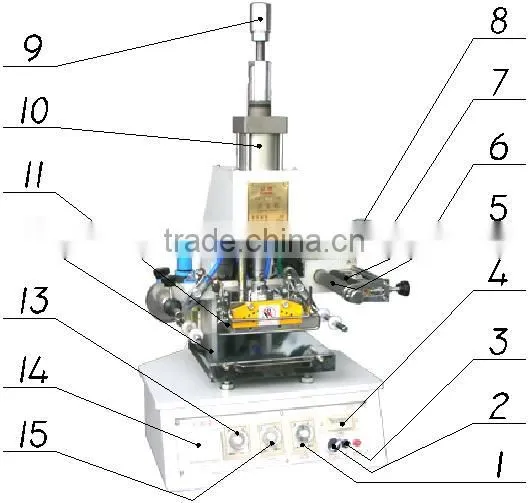

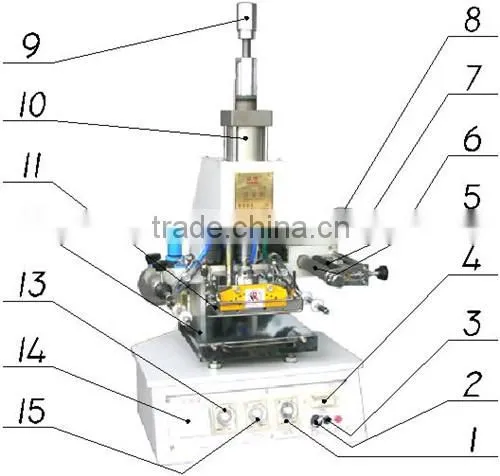

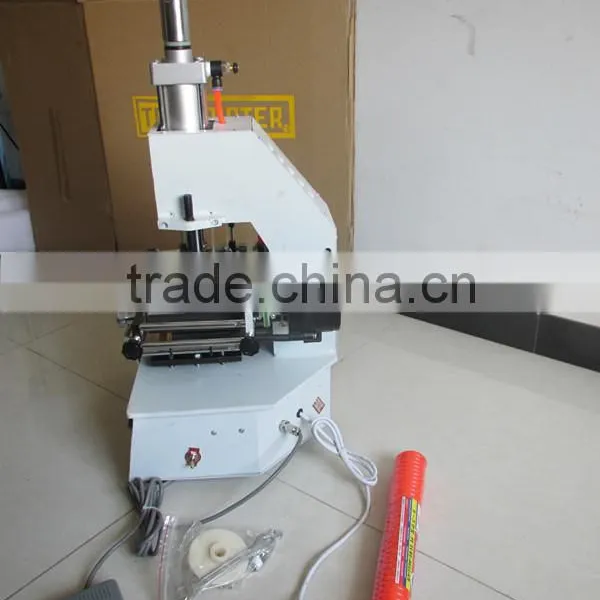

TAM 90-2 Pneumatic Plane Hot Foil Stamping Machine for Leather
Parameter:
Name |
Pneumatic Plane Hot stamping machines |
Model |
TAM-90-2 |
Product shape |
Plane |
Impression area |
90X120mm (3.5"X4.75") |
Power |
220V/50Hz |
Electrothermal Power |
500W |
Air Pressure |
0.5-0.7 |
Operation |
Pneumatic |
System control |
automatic |
Workbench |
can be adjusted |
Stamping foil winding length |
< 120 mm |
Stamping speed |
800 PCS/H |
Dimensions |
415X415X750mm |
Weight |
42KG |
Temperature range |
room temperature to 400C° |
Application:
This hot Foil Stamping Machine is fit for stamping on the surface of plane objects with small area.
With fast speed and low energy consumption.
Mainly applied to the field of craft, fabric handbag, leather, paper and plastic.
This machine has a stable pressing force directly acted on by the pneumatic cylinder.The printing ribbon is transmitted by pneumatic mechanism.
It's worktable allows optional adjustment.It is suitable for various stamping and branding
Characteristics:
1. Stamping pressure is adjustable to install.
2. Automatic rear-and-front worktable ensures safe and quick operation.
3. Worktable capable of slight adjustment to rear-and-front, left-and-right and rotation.
4. The height of the stamping head adjustable accordingly.
5. Automatic foil feeding and rolling with adjustable function.
Additional Info.
Price Terms-- EXW FOB or CFR
Payment Terms -- T/T or L/C
Packing -- Wooden case
Lead Time -- 5 days after confirm PO
SKU -- 10 SET
Cubic Meter – 0.3
Standards Certificate: CE
Volume: 0.5CBM
Application area: leath, plastic
Gross Weight: 50kg
Main Parts: hot plate
Free Fittings : gold foil 120m X5mm
de: 8443391200
Product Image:
