TAM-90 Mini Pneumatic Hot Stamping Machine
Parameter:
Name |
Pneumatic Plane Hot stamping machine |
Model |
TAM-90 |
Product shape |
Plane |
Impression area |
80X110mm (3.1"X4.3") |
Power |
220V/50Hz |
Electrothermal Power |
500W |
Air Pressure |
0.5-0.7 |
Operation |
Pneumatic |
System control |
automatic |
Workbench |
can be adjusted |
Stamping foil winding length |
< 120 mm |
Stamping speed |
800 PCS/H |
Dimensions |
400X430X750mm |
Machine Weight |
44KG |
TAM-90 Mini Pneumatic Hot Stamping Machine has a stable pressing force directly acted on by the pneumatic cylinder. The printing ribbon is transmitted by pneumatic mechanism. Its worktable allows optional adjustment. It is suitable for various stamping and branding. Special for small and medium mark hot-stamping like PVC, leather, plastic, pencil, wood, paper etc.
Characteristics:
1. Stamping temperature adjustable range from room temperature to 400degree.
2. Stamping pressure is adjustable to install.
3. Automatic rear-and-front worktable ensures safe and quick operation.
4. Worktable capable of slight adjustment to rear-and-front, left-and-right and rotation.
5. The height of the stamping head adjustable accordingly.
6. Automatic foil feeding and rolling with adjustable function.
Price Terms-- FOB or CFR
Payment Terms -- T/T or L/C
Packing -- Wooden case
Lead Time -- 5 days after confirm PO
SKU -- 10 SET
Cubic Meter – 0.3CBM

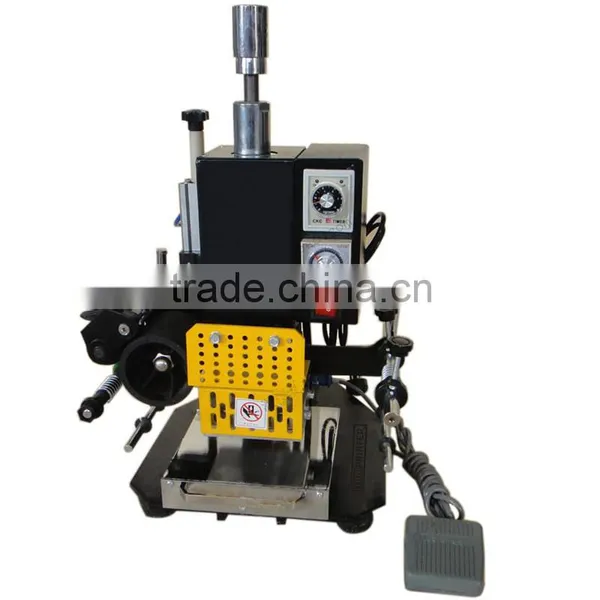

Product Image:
