Carousel Flat Hot Stamping Machine
US$ 3000.00 - 3000.00
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Plate Type:
Letterpress
Place of Origin:
Guangdong, China
Payment & Shipping
Payment Methods:
Port of Shipment:
China
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
TAM-220 Wpc Foam Board Hot Stamping MachineUS$ 276.00 - 276.00MOQ: 1 Set -
TAM-320 Pneumatic Hot Stamping MachineUS$ 2110.00 - 2110.00MOQ: 1 Set
-
TAM-358 Manual Hot Stamping MachineUS$ 1300.00 - 1300.00MOQ: 1 Set
-
Tam-90-6 File Rack Lable Hot Stamping MachineUS$ 1,500 - 2,000MOQ: 1 Set
-
TAM-90-B Pneumatic Hot Stamping MachineUS$ 1460.00 - 1460.00MOQ: 1 Set
Condition
New
Plate Type
Letterpress
Place of Origin
Guangdong, China
Brand Name
TAM
Model Number
TAM-168c
Usage
Bill Printer, Card Printer, Cloths Printer, Label Printer, Paper Printer, Tube Printer
Automatic Grade
Semi-Automatic
Voltage
220V 50HZ
Gross Power
900W
Dimensions(L*W*H)
530 * 580 * 1385mm
Weight
130kg
Certification
SGS
After-sales Service Provided
Overseas third-party support available

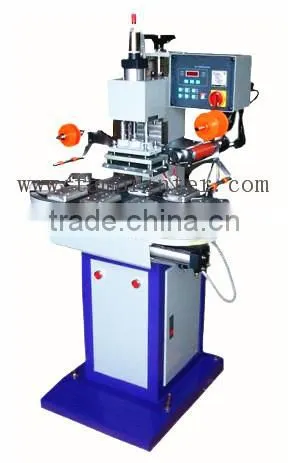

168c carousel flat hot stamping machine
Technical parameters:
| Hot plate area | 100 × 168mm |
| Table size | 80 × 110mm |
| Number of stations | 10 step 120mm |
| Maximum workpiece size | 100mm * 100mm |
| Stamping head stroke | 25mm |
| Stamping Temperature range | room temperature -280 degrees |
| Maximum workpiece height | 50mm |
| Stamping pressure range of options | <130kgf |
| Maximum stamping speed | 1200pcs/hr |
| Power supply | 220V 50HZ |
| Heating power | 900W |
| Air pressure | 4-7bar |
| Consumption | <40L/min |
| Dimensions | 530 × 580 × 1385mm |
Features:
1, microcomputer control, pneumatic drive.
2, Stamping pressure, temperature, time is adjustable.
3, front and rear bench can be moved manually to facilitate safe and fast operation.
4, the table can be front, left, rotate adjustment.
5, automatic document feeder, delivery and adjustable.
6, depending on the height of the workpiece can be adjusted separately stamping cylinder head height and stroke adjustment process through the handle and cylinder nuts.

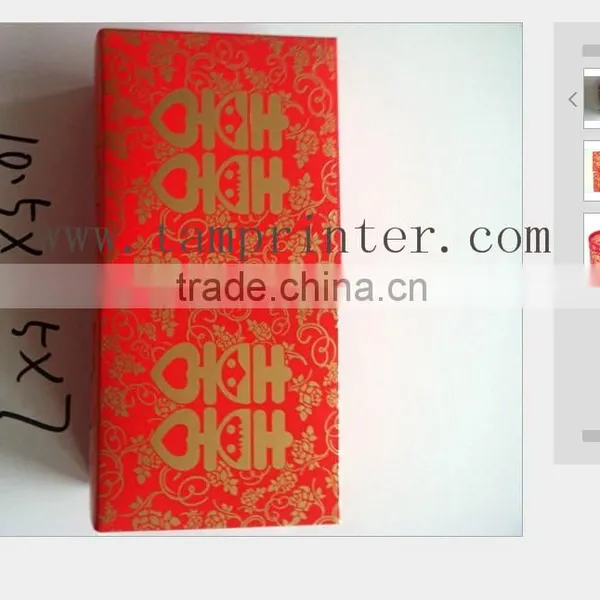

Suitable for jewelry boxes, small gift boxes and not more than 10 * 10mm workpiece surface bronzing
