Mining jaw stone crusher manufacturer
- 300 Set / Sets per Month
- Qingdao
- T/T L/C D/P D/A Credit Card PayPal
- Tertiary Reversible Impact Hammer Crusher with High Chrome Blow Bar
- China Wheat and Grain Transport Vibrating Feeder Price in Shanghai
- Good Quality Heavy Hammer Crusher for Crushing All Kinds of Ores
- Sand Ore and Coal Vibrating Feeder Machinery Used in Mining Industry
- High Efficiency Stone Crushing Plant Impact Stone Crusher
- Sound Equipment Impact Crusher Machine for Stone Crushing Line
Product Details
Condition: | New | Type: | Jaw Crusher | Application: | stone,ore,limestone,CACO3,ore,concrete,granite |
Motor Type: | AC Motor | Power(W): | 200kw | Capacity(t/h): | 500T/h, 5-800 |
Place of Origin: | Shandong, China | Brand Name: | Hysan | Model Number: | PE1200*1500 |
Dimension(L*W*H): | 4100*3120*3900 | Weight: | 75T | Certification: | ISO9001-2008 |
Warranty: | one year excluding wearing parts, whole using life | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

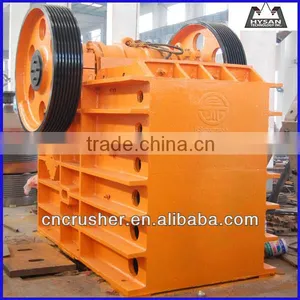

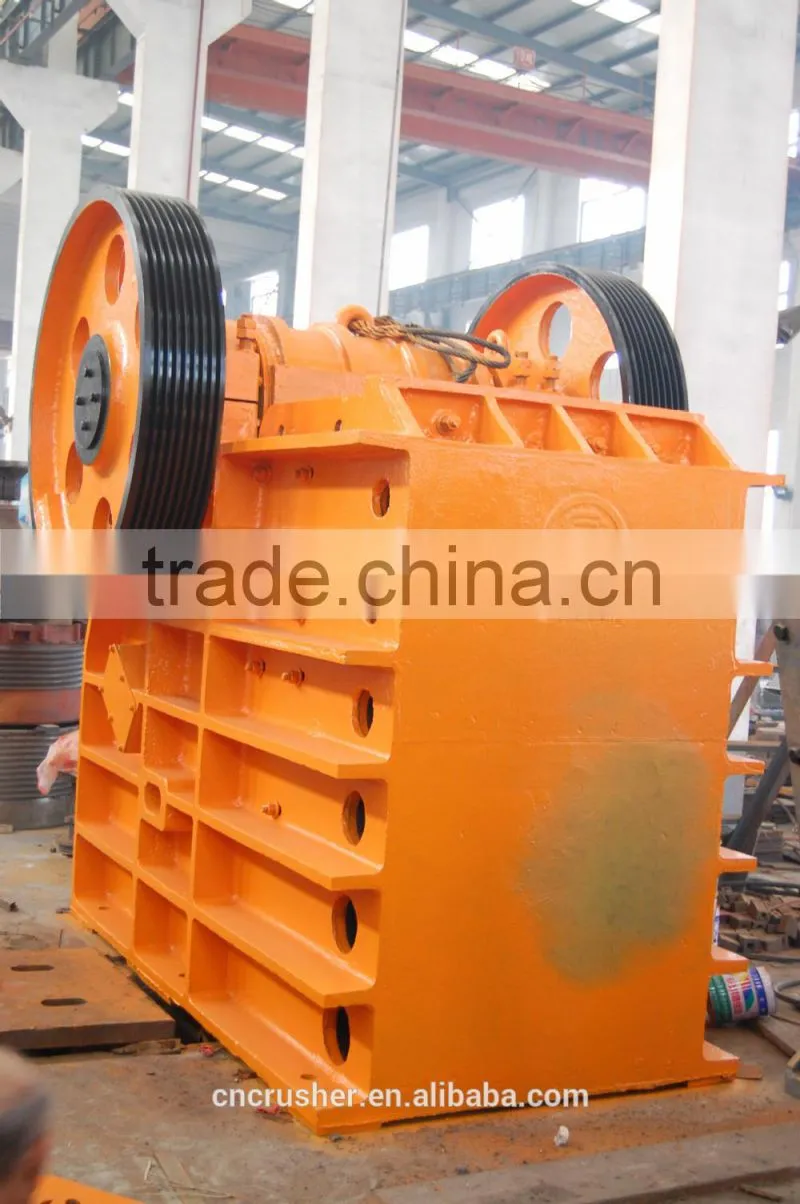

Jaw crusher
The working part of the jaw crusher is two pieces of jaw plate, one is stationary and fixed on the front wall of machine body, which is called fixed jaw, while the other one, swing jaw, making a crushing chamber with the fixed jaw, moves back and forth periodically. When separating, the material enters into the crushing chamber and then the particle drops out from the bottom; when combined, the material is crushed by the compressive force, buckling and split effect from the jaw plate. The jaw crusher series are used for the primary and secondary crushing of hard material. There are two types of crusher, including coarse jaw crusher and fine jaw crusher.
|
Jaw crusher Parameters
model
| Input size (long*width)
| Output size
| Biggest feeding granularity
| Production (T/h) | Eccentric shaft speed (r/min) | Motor power (KW) | Size (long*width*high)
| |
ZG-PE-250*400 | 250*400 | 20-60 | 200 | 8-16 | 300 | 15 | 1430*1316*1296 | |
ZG-PE-400*600 | 400*600 | 40-100 | 350 | 14-36 | 275 | 30 | 1700*1732*1656 | |
ZG-PE-500*750 | 500*750 | 50-120 | 400 | 30-80 | 250 | 55 | 1900*1876*1821 | |
ZG-PE-600*900 | 600*900 | 75-200 | 480 | 56-192 | 250 | 55 | 2280*2245*2320 | |
ZG-PE-800*1100 | 700*1100 | 80-200 | 600 | 70-195 | 250 | 75 | 2550*2280*2380 | |
ZG-PE-750*1060 | 750*1060 | 80-235 | 630 | 105-195 | 250 | 90 | 2655*2302*3110 | |
ZG-PE-900*1200 | 900*1200 | 95-265 | 750 | 90-220 | 220 | 110 | 3800*3160*3050 | |
ZG-PE-1100*1400 | 1100*1400 | 150-300 | 1000 | 150-340 | 180 | 160 | 4200*3020*3900 | |
ZG-PE-1200*1500 | 1200*1500 | 150-300 | 1100 | 200-500 | 180 | 200 | 4100*3120*4155 | |
ZG-PE-500*1500 | 500*1500 | 50-120 | 400 | 60-160 | 300 | 90 | 2250*2680*1920 | |
| 250*400 | 20-60 | 210 | 8-16 | 300 | 15 | 1108*1090*1392 | |
PE-250*1000 | 250*1000 | 20-50 | 210 | 15-50 | 300 | 30 | 1550*1990*1370 | |
PE-250*1200 | 250*1200 | 20-60 | 210 | 20-70 | 250 | 37 | 1530*2285*1625 | |
PE-400*600 | 400*600 | 40-100 | 350 | 14-36 | 275 | 30 | 1650*1715*1591 | |
| 500*750 | 50-120 | 425 | 30-80 | 250 | 55 | 2250*1980*1920 | |
PE-600*900 | 600*900 | 75-200 | 500 | 56-192 | 250 | 55 | 2560*1840*2320 | |
PE-750*1060 | 750*1060 | 80-235 | 630 | 108-256 | 250 | 90 | 2380*2550*2800 | |
PE-900*1200 | 900*1200 | 95-265 | 750 | 186-398 | 220 | 110 | 2960*2930*3265 | |
ZG-PEX-150*750 | 150*750 | 10-40 | 120 | 8-25 | 320 | 15 | 1210*1572*1045 | |
ZG-PEX-250*1000 | 250*1000 | 20-50 | 210 | 15-50 | 330 | 30 | 1550*1990*1370 | |
ZG-PEX-250*1200 | 250*1200 | 20-60 | 210 | 20-70 | 320 | 37 | 1530*2285*1625 | |
ZG-PEX-300*1300 | 300*1300 | 30-80 | 250 | 30-90 | 330 | 45 | 1530*2380*1720 | |
ZG-PEX-300*1500 | 300*1500 | 35-100 | 250 | 40-120 | 320 | 55 | 1900*2600*1780 | |
ZG-PEX-350*750 | 350*750 | 20-80 | 300 | 30-52 | 320 | 37 | 1650*1680*1655 |
Jaw crusher Advantages:
- Less noise and dust.
- High crushing ratio, uniform particle size.
- Simple structure, safe work, low operating cost.
- Safe lubrication system, easy parts replacement and equipment maintaining.
- Deep crushing chamber with no dead zone, improves the feeding size which leads to a high capacity.
- Equipment energy-saving: save 15%-30% energy, save system energy more than twice.
- Wide range of discharge gate can meet the requirements of different customers.
- Gasket discharge gate adjusting device makes it more convenient to use. Wide adjustable range improves the flexibility of the equipment.
