Help CenterEasy Operation Low Noise Ore Stone Jaw Crusher
Related Products
Specifications
hysan jaw crusher:1. Complete solution;
2. Full tech support;
3. Low cost;
4. Negotiable price.
|

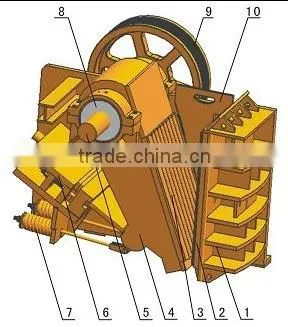

Jaw crusher The working part of the jaw crusher is two pieces of jaw plate, one is stationary and fixed on the front wall of machine body, which is called fixed jaw, while the other one, swing jaw, making a crushing chamber with the fixed jaw, moves back and forth periodically. When separating, the material enters into the crushing chamber and then the particle drops out from the bottom; when combined, the material is crushed by the compressive force, buckling and split effect from the jaw plate. The jaw crusher series are used for the primary and secondary crushing of hard material. There are two types of crusher, including coarse jaw crusher and fine jaw crusher.
|
Jaw crusher Advantages:
- Less noise and dust.
- High crushing ratio, uniform particle size.
- Simple structure, safe work, low operating cost.
- Safe lubrication system, easy parts replacement and equipment maintaining.
- Deep crushing chamber with no dead zone, improves the feeding size which leads to a high capacity.
- Equipment energy-saving: save 15%-30% energy, save system energy more than twice.
- Wide range of discharge gate can meet the requirements of different customers.
- Gasket discharge gate adjusting device makes it more convenient to use. Wide adjustable range improves the flexibility of the equipment.
Jaw crusher Parameters
modeL |
Feeding port size (long×width)(mm) |
Discharging Mouth size (mm) |
Biggest feeding granularity (mm) |
Production (T/h) |
Eccentric shaft speed (r/min) |
Motor power (KW) |
Envelop dimensions (long×width×high) (mm) |
ZG-PE-1100×1400 |
1100×1400 |
150-300 |
1000 |
150-340 |
180 |
160 |
4200×3020×390 |
Trade information
Jaw crusher
1. Packing and shipping
Standard Export Packaging and Shipping
The products should be processed to be rustproof and moisture proof before delivery. The small parts are packed into wooden crates; the big parts are wrapped by plastic sheeting.
2. Delivery time: 25 days.
3. Payment term: 1> L/C 2> T/T 3> D/P
Company information:
Welcome to Hysan Foundry and Rongda Machinery, the leading carbon steel and steel alloy, crushing expert in North China.
The major crushers we are manufacturing are series of Jaw crushers, Impact crushers, Hammer mills, Cone Crushers, and screen machinery industry.
We are not only manufacturing series of crushers, but also within the aggregate crushing industries, we regularly can make a whole range of casting parts such as jaw castings, centre rollers, shafts, fly wheels.
Supplying wear resistant parts is another division mission from our company. .We have the capacity to supply a high quality, low cost, variety of wear parts based upon our client's requirements.
