110 Cross Connect System 200 Pairs 110 Wiring Block 2U Rack Patch Panel for Connecting Block 4 Pair

    Service & Certificate

    Descriptions

A "110 Cross Connect System 200 pairs 110 Wiring Block 2U rack Patch Panel for Connecting Block 4 Pair" is a comprehensive solution for organizing and managing large-scale copper cable connections in telecommunications and networking environments.

Let's dissect its components and main features:

110 Cross Connect System: This refers to a structured cabling system utilizing 110-style connecting blocks for terminating and connecting copper cables. The 110 system provides a standardized and efficient method for managing connections in telecommunications networks.

200 pairs 110 Wiring Block: This indicates the capacity of the wiring block to handle 200 pairs of copper cables. A pair typically consists of two wires used for transmitting and receiving signals in telecommunications. The 110 wiring block serves as a termination point for the individual wires.

2U Rack Patch Panel: The patch panel is designed to be mounted in a standard 19-inch equipment rack, occupying 2 rack units (2U) of vertical rack space. It provides a centralized location for terminating and patching connections from the wiring blocks to other network equipment.

For Connecting Block 4 Pair: This indicates that the patch panel is specifically designed to accommodate 4-pair connections from the 110 wiring blocks. In telecommunications, a 4-pair connection typically refers to an Ethernet or telephone connection using four twisted pairs of wires.

    Main Features

High Capacity: With a capacity of 200 pairs, this system is suitable for large-scale telecommunications and networking applications where numerous connections need to be managed efficiently.

Structured Organization: The 110 wiring blocks and patch panel facilitate structured organization of cable connections, making it easier to manage and maintain the network infrastructure. Each pair of cables can be neatly terminated and labeled for easy identification.

Rack Mountable Design: The 2U rack patch panel is designed for easy integration into standard equipment racks, providing a space-saving and organized solution for managing connections within a rack-based network setup.

Cross Connect Capability: The system supports cross-connect functionality, allowing for the routing and patching of connections between different blocks or equipment within the network. This flexibility enables easy configuration and reconfiguration of network connections as needed.

Overall, the "110 Cross Connect System 200 pairs 110 Wiring Block 2U rack Patch Panel for Connecting Block 4 Pair" offers a comprehensive and scalable solution for organizing and managing large numbers of copper cable connections in telecommunications and networking environments.

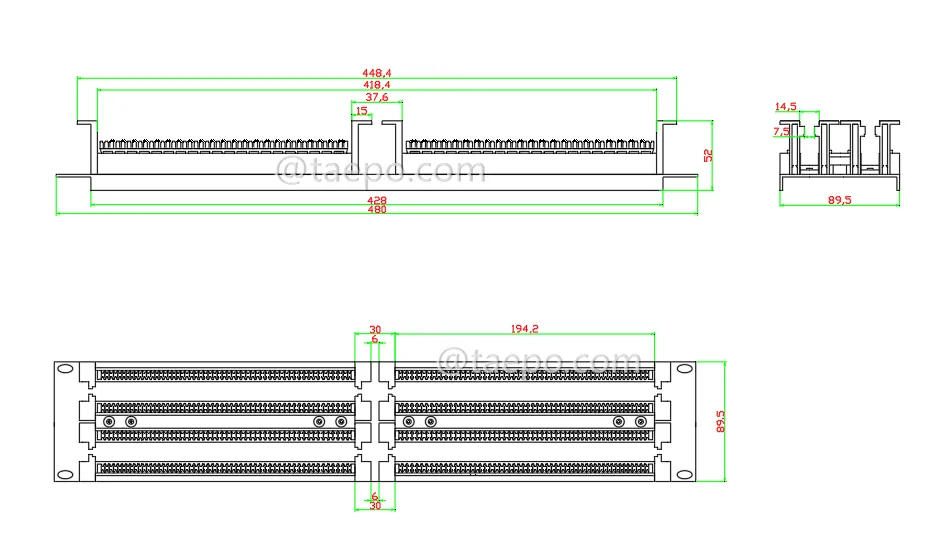

    Schematic Diagrams

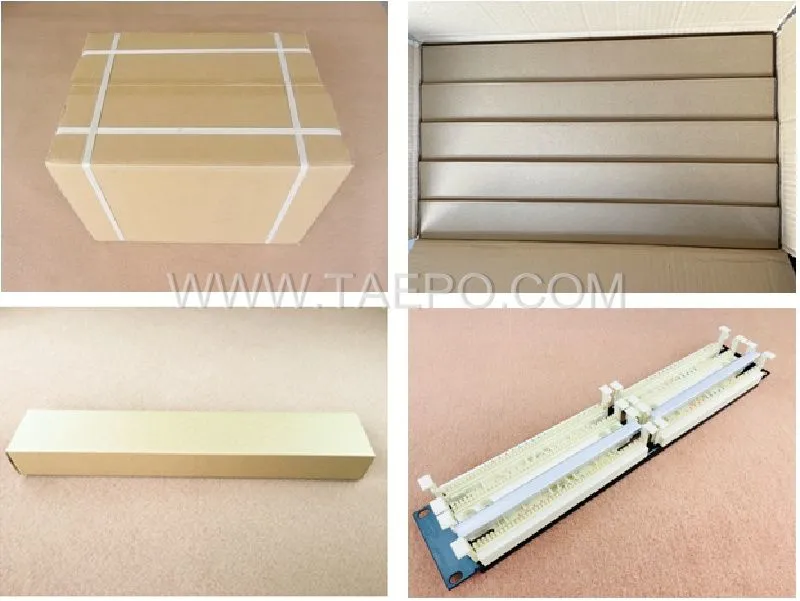

    Packing Pictures

    Order Data
