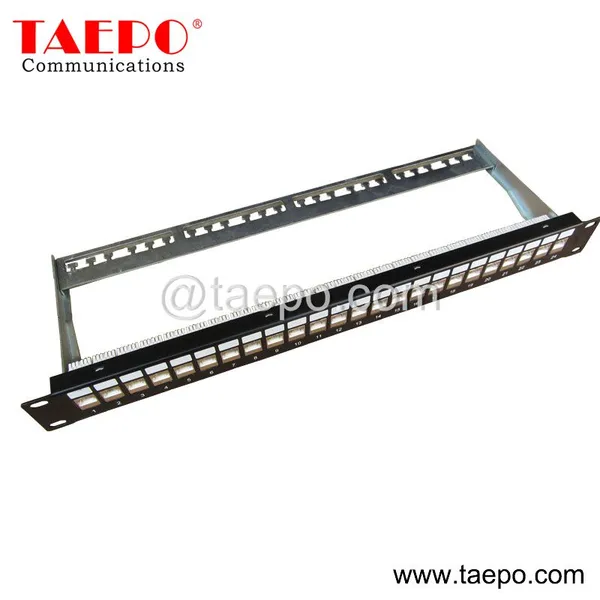

Help Center19 Inch 1U 24 Port CAT5E CAT6 RJ45 STP Shielded Network Patch Panel With Cable Manager and Keystone Jack
Related Products
-
19 Inch 1U 48 Port Blank Patch Panel for UTP Keystone Jack From China Factory TAEPOUS$ 6 - 8MOQ: 100 Pieces -
10 Inch 1U CAT5E CAT6 RJ45 UTP 12 Port Network Patch Panel From China Factory TAEPOUS$ 3 - 5MOQ: 100 Pieces
-
19 Inch Server Rack 1U 48 Port CAT5E CAT6 RJ45 Network Patch Panel With Cable Bracket From China Factory TAEPOUS$ 15 - 17MOQ: 100 Pieces
-
19 Inch 1U 24 Port CAT6A RJ45 STP Shielded Network Server Rack Patch Panel With Cable Manager and KeystoneUS$ 25 - 28MOQ: 100 Pieces
-
19 Inch 1U 25 Port CAT3 UTP RJ45 Telephone Patch Panel With Cable Management From China Factory TAEPOUS$ 7.5 - 9MOQ: 100 Pieces
Service & Certificate
Descriptions
A 19-inch RJ45 Cat5e STP patch panel with a cable manager is a network hardware component designed to facilitate the organization, management, and connection of shielded twisted pair (STP) Ethernet cables, those conforming to the Cat5e standard.
Here are the key features and components:
19-inch Form Factor: The 19-inch width is a standard size for rack-mounted equipment, allowing the patch panel to fit into standard server racks and enclosures used in data centers and network closets.
RJ45 Connectors: The patch panel features multiple RJ45 jacks (typically 24 or 48 ports) that provide a termination point for Cat5e STP cables. RJ45 is the standard connector used for Ethernet networking.
Cat5e Standard: The patch panel is designed to support Category 5e (Cat5e) cabling, which is capable of providing data transfer rates up to 1 Gbps over a distance of up to 100 meters. Cat5e is an enhanced version of Cat5, offering improved performance and reduced crosstalk.
STP (Shielded Twisted Pair): The patch panel is compatible with shielded twisted pair cables, which have an additional layer of shielding to protect against electromagnetic interference (EMI) and radio frequency interference (RFI). This is crucial in environments with high levels of interference.
Cable Manager: The integrated cable management system helps organize and secure the cables connected to the patch panel. This can include features such as rear cable organizers, tie-down points, and guides that maintain the bend radius of the cables to prevent damage and ensure optimal performance.
Main Features
The main feature of a 19-inch RJ45 Cat5e STP patch panel with a cable manager is its ability to provide a centralized, organized, and protected point for terminating shielded Cat5e Ethernet cables, ensuring optimal network performance and ease of management. This feature encompasses several specific aspects:
Centralized Connection Point
RJ45 Ports: Multiple RJ45 ports (typically 24 or 48) allow for easy connection of Ethernet devices to the network, providing a single point of termination for cables.
Cable Manager: Integrated cable management features such as rear cable organizers, tie-down points, and guides help keep cables neatly arranged, reducing clutter and making it easier to manage and identify connections.
STP (Shielded Twisted Pair): Designed to work with shielded Cat5e cables, the patch panel helps protect against electromagnetic interference (EMI) and radio frequency interference (RFI), ensuring stable and reliable network performance.
Cat5e Standard: Supports Cat5e cables, which offer data transfer rates up to 1 Gbps and improved performance over standard Cat5 cables, reducing crosstalk and enhancing signal quality.
Accessibility: The organized layout and easy access to connections simplify maintenance, troubleshooting, and reconfiguration of the network.
19-inch Width: Fits into standard server racks and enclosures, making it compatible with existing network infrastructure in data centers and network closets.
Robust Design: Built to withstand the demands of high-traffic network environments, offering enhanced durability and longevity compared to unshielded solutions.
Summary
The main feature of this patch panel is its comprehensive solution for organizing, managing, and protecting shielded Cat5e network connections, ensuring a high-performance, interference-free, and easily maintainable network infrastructure

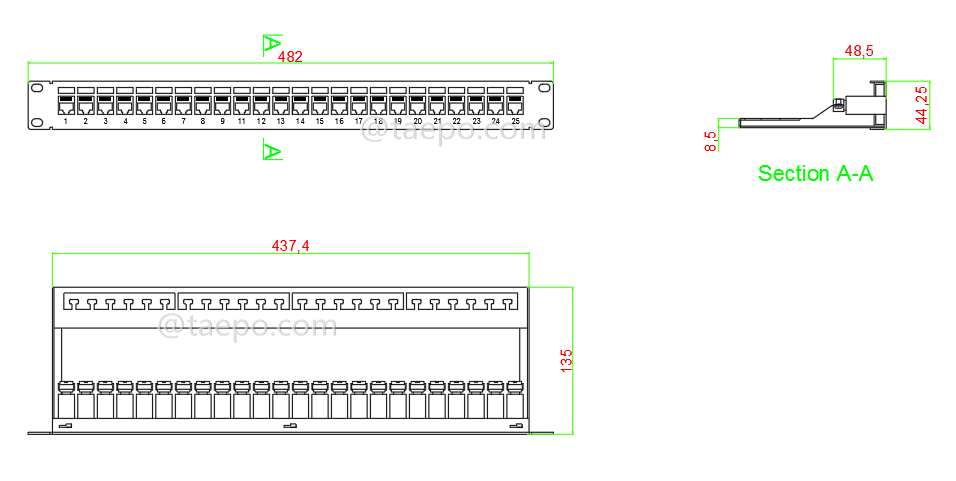

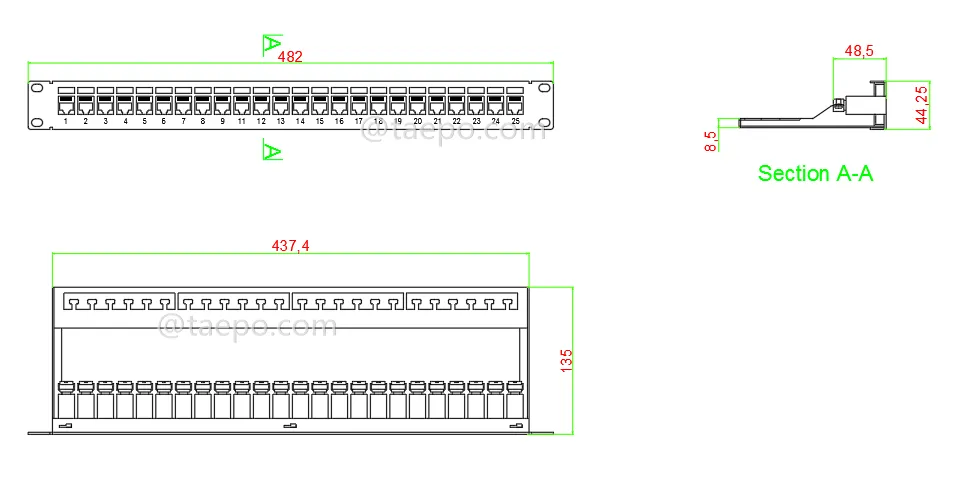

Schematic Diagrams

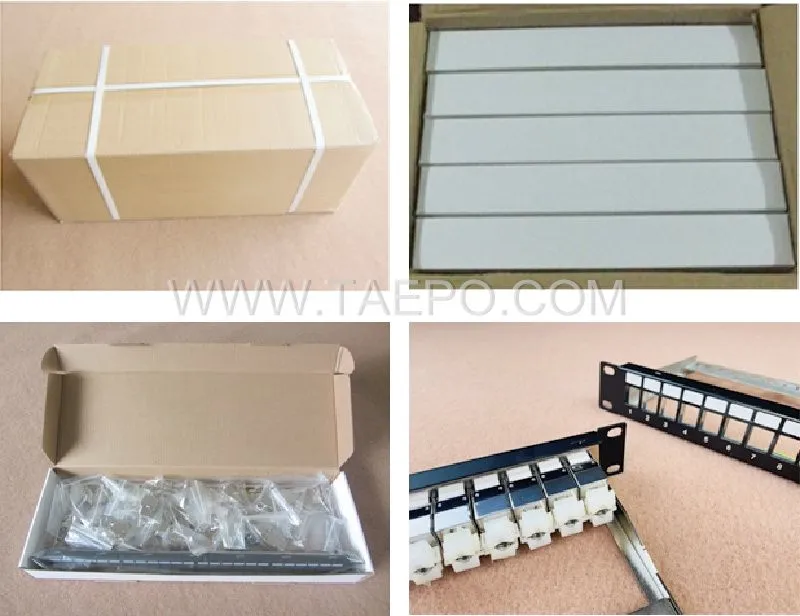

Packing Pictures
Order Data
| Item NO | Descriptions |
| TP-5307-24C5ESCM | 24-port patch panel, CAT5E, RJ45, STP, 19", 1U, with cable manager |
| TP-5307-24C6SCM | 24-port patch panel, CAT6, RJ45, STP, 19", 1U, with cable manager |
