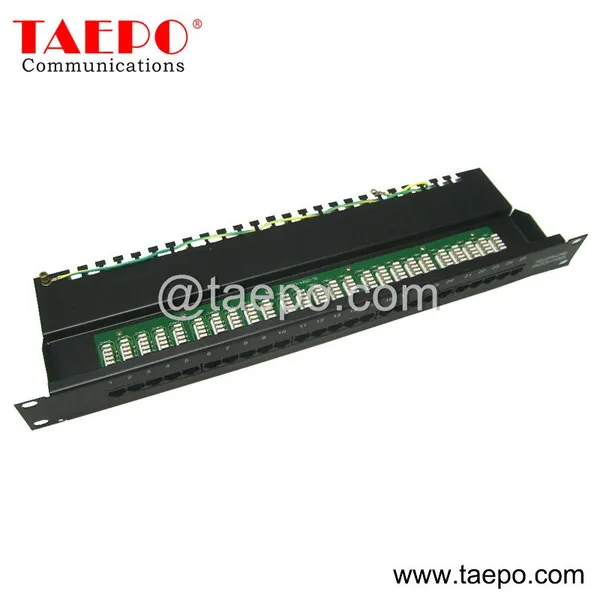

19 Inch 1U 25 Port CAT3 UTP RJ45 Telephone Patch Panel With Cable Management From China Factory TAEPO

    Service & Certificate

    Descriptions

A telephone patch panel is a device used in telecommunications to manage and organize connections between telephone lines and various devices. It serves as a central point for terminating and connecting multiple telephone lines in a structured cabling system.

We TAEPO have A 19-inch 1U 25-port CAT3 UTP RJ45 telephone patch panel with cable management is a piece of networking equipment designed specifically for managing telephone connections in a structured cabling environment.

Here's what each part of the description typically means:

19-inch: This refers to the width of the patch panel. It's designed to fit into a standard 19-inch equipment rack or cabinet, which is common in server rooms and network installations.

1U: This indicates the height of the patch panel in rack units (U). 1U is equal to 1.75 inches (44.45 mm). So, a 1U patch panel takes up 1.75 inches of vertical space in the rack.

25 port: This specifies the number of ports available on the patch panel. Each port is where you can connect a telephone cable (typically CAT3 UTP in this case) to establish telephone connections.

CAT3: This denotes the category of cables supported by the patch panel. CAT3 cables are specifically used for telephone and voice applications. They are capable of carrying voice signals but do not support data transmission like CAT5e or CAT6 cables.

UTP (Unshielded Twisted Pair): Indicates that the patch panel supports unshielded cables. UTP cables are commonly used in telecommunications for voice and data transmission.

RJ45: This refers to the type of connector used on the patch panel. RJ45 connectors are standard for Ethernet and telephone connections.

Telephone Patch Panel: Unlike Ethernet patch panels, which handle data connections, a telephone patch panel is designed to manage telephone lines specifically. It allows multiple telephone lines to be terminated and organized in a structured manner.

Cable Management: Includes features such as cable management arms or brackets to organize and secure cables neatly, reducing cable clutter and making maintenance easier.

In summary, a 19-inch 1U 25-port CAT3 UTP RJ45 telephone patch panel with cable management is used in environments where there is a need to organize and manage multiple telephone lines efficiently. It supports CAT3 cables for telephone connections, fits into standard equipment racks, and includes provisions for neat cable management. This type of patch panel is commonly found in offices, telecommunications closets, and other settings where telephone communication infrastructure is deployed.

    Main Features

The main features of a 19-inch 1U 25-port CAT3 UTP RJ45 telephone patch panel with cable management include:

High Port Density: Provides 25 ports in a compact 1U (1.75 inches) height, maximizing the number of telephone connections in a limited rack space.

CAT3 Compatibility: Designed specifically to support CAT3 cables, which are used for telephone and voice applications. CAT3 cables are capable of carrying analog voice signals.

RJ45 Connectors: Uses RJ45 connectors, which are standard for telephone connections in many modern telecommunications systems. Each RJ45 port allows for the termination of a single telephone line.

19-inch Rack Mountable: Fits into a standard 19-inch equipment rack or cabinet, making it suitable for installation in server rooms, telecommunications closets, and other structured cabling environments.

Cable Management: Includes integrated cable management features such as cable management arms, brackets, or clips. These help organize and route cables neatly, reducing clutter and facilitating easier maintenance and troubleshooting.

Labeling: Often includes labeling areas or numbered ports for easy identification of telephone lines, which aids in installation, configuration, and maintenance.

Durable Construction: Made from durable materials to withstand the demands of telecommunications environments and ensure long-term reliability.

Ease of Installation: Designed for easy installation with standard rack mounting hardware included, ensuring quick setup and integration into existing network infrastructure.

These features collectively make the 19-inch 1U 25-port CAT3 UTP RJ45 telephone patch panel with cable management an essential component for managing telephone connections in structured cabling systems. It provides organization, scalability, and reliability for telecommunication infrastructure in offices, businesses, and other settings where telephone lines are deployed.

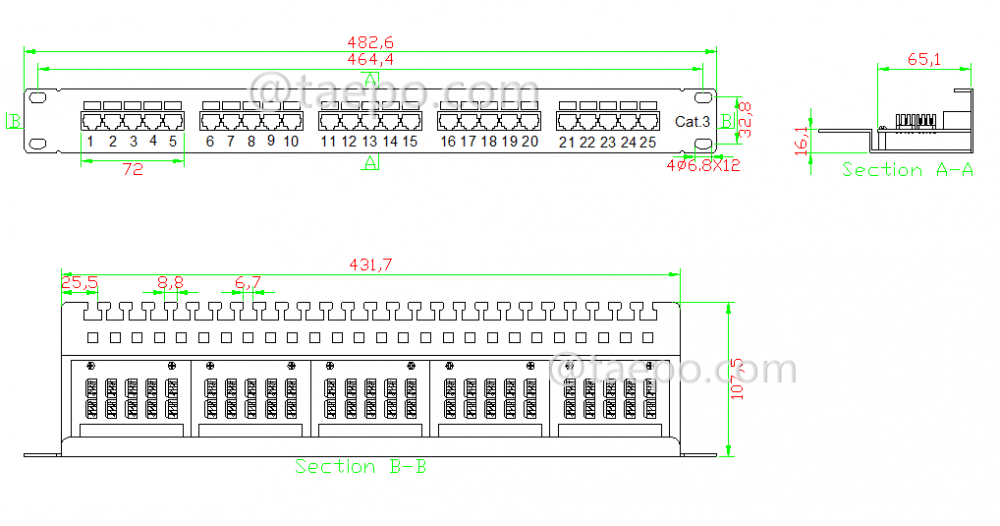

    Schematic Diagrams

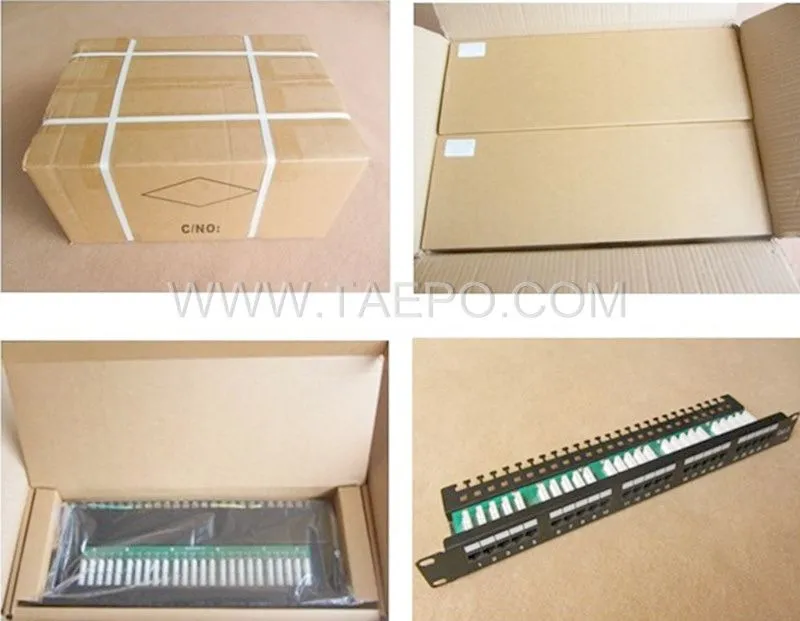

    Packing Pictures

    Order Data
