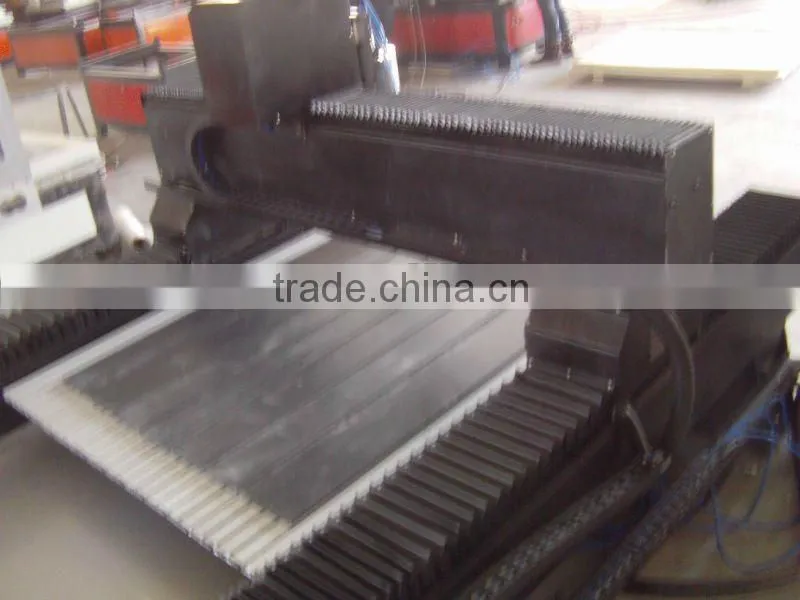

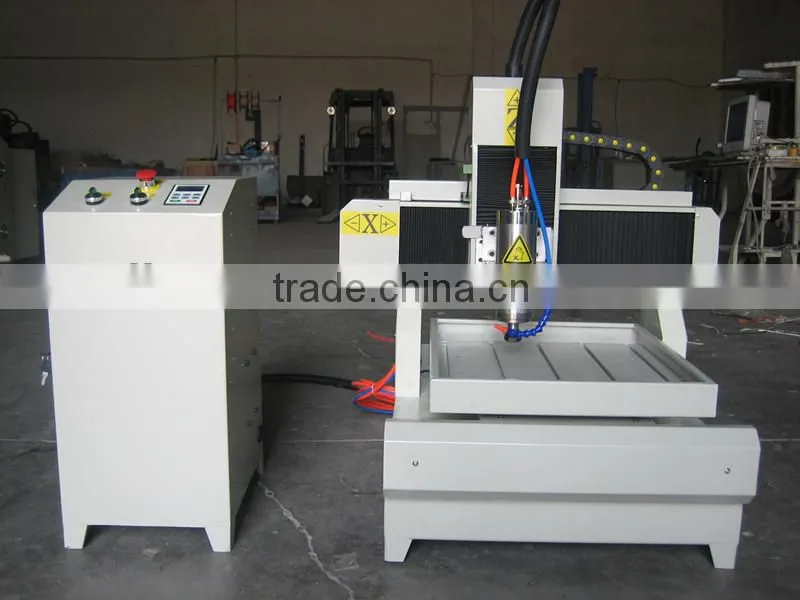

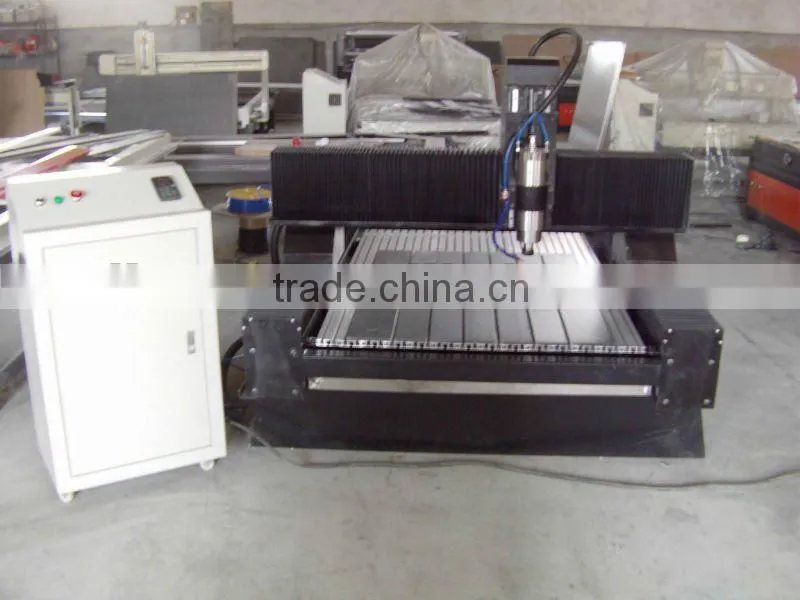

CNC Router Machine, Stone Engraving Machine ,Granite Tombs
US$ 6,000 - 12,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Laser Type:
Other
CNC or Not:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Stone Engraving Machine for Beautiful Stone Angel SculptureUS$ 6,000 - 12,000MOQ: 1 Set -
Granite Marble Rotogravure Cylinder Engraving MachineUS$ 28,000 - 30,000MOQ: 1 Set
-
Router Bits for Wood Stone Engraving MachineUS$ 6,000 - 12,000MOQ: 1 Set
-
CNC Engraving Machine Stone Engraving MachineUS$ 6,000 - 12,000MOQ: 1 Set
-
Multi Spindle 3d CNC Router, Tombstone Engraving MachineUS$ 5,000 - 10,000MOQ: 1 Set
Condition
New
Laser Type
Other
CNC or Not
Yes
Cooling Mode
Water Cooling
Applicable Material
Stone
Graphic Format Supported
BMP
Place of Origin
Guangdong, China
Brand Name
TIANJUN
Model Number
TJJZ
After-sales Service Provided
Engineers available to service machinery overseas
Heavy type stone engraving machine
Product Introduction | |||||||
| This series of models mainly used for heavy weight of the tile, bluestone, marble, granite, white marble, sandstone, such as a stone sculpture processing, category carved glass-cutting and engraving melting material. | |||||||
| Feature | |||||||

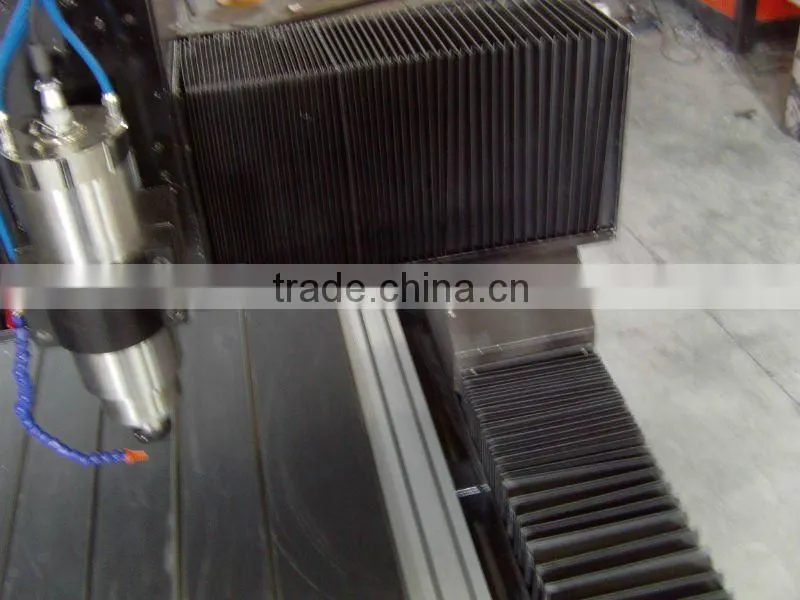

| 1. X, Y, Z three-axis all the imported linear square orbit . | |||||||

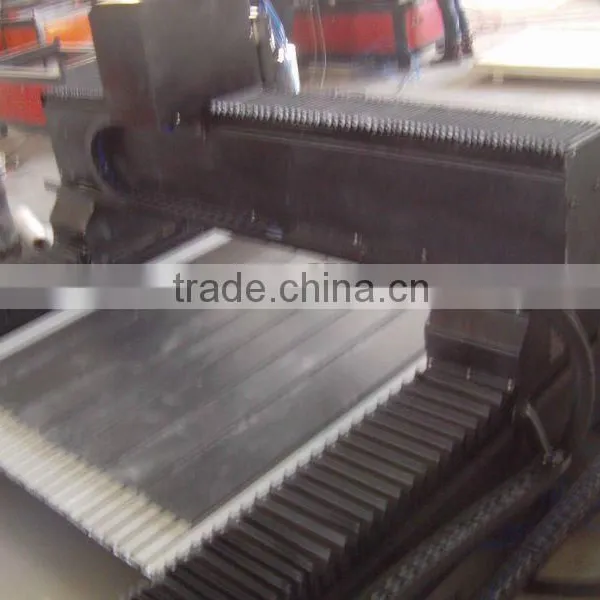

| 2. X, Y, Z three-axis all have the waterproof, dustproof system | |||||||
| 3. Water cooling constant torque spindle with the imported bearing, high power, low tone. | |||||||

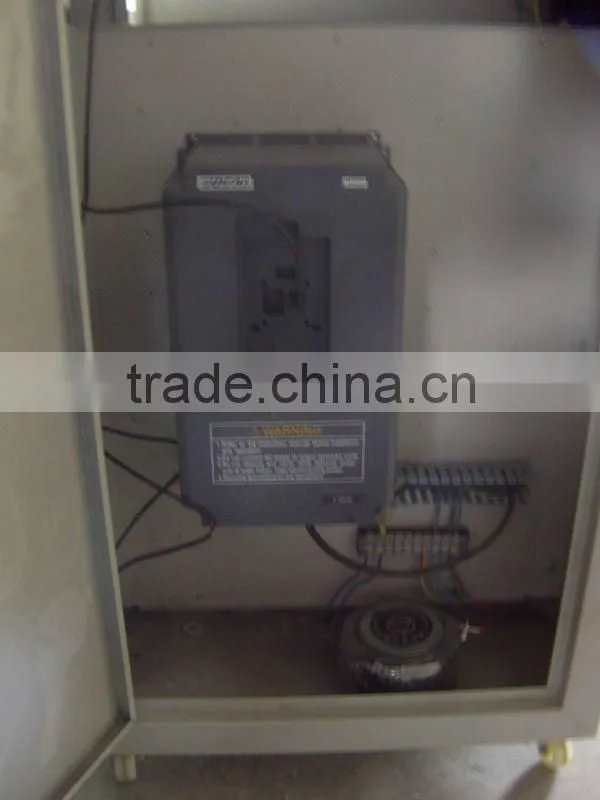

| 4. Adopt Taiwan transducer with stable output signals | |||||||

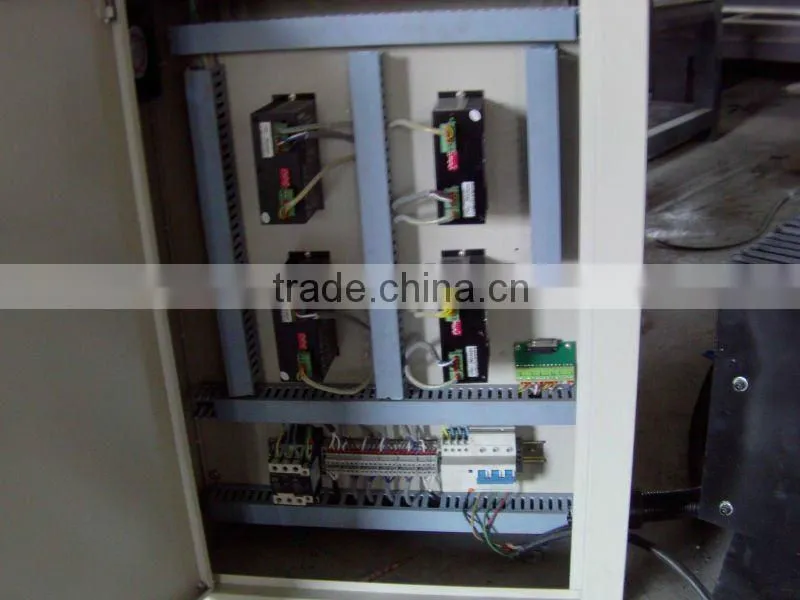

| 5. Fully sgielded,bending circuity, and imported electronic components. | |||||||
| 6. Adopt double drivers to drive y axis, motivity is more stronger | |||||||
| 7.Whole seamless steel structure,can load weight up to 1000kg | |||||||
| Performance Features: | |||||||
| 1. Three axises adopt import linear orbit, two line sliding track, heavy loading, stable working, high precision, long lifetime . | |||||||
| 2. Whole seamless weld steel structure, not easy to distort, the table back lining is armor plate, good rigidity, the machine can bear 1MT weight at least. | |||||||
| 3. Constant power spindle and motor, high cutting capability, high efficiency. | |||||||
| 4. Well compatibility, compatible software CAD/CAM, such as Type 3, Artcam, Castmate, Artcuti, Coredraw. | |||||||
| 5. Double direction cutters cooling system can prolong the lifetime of using. | |||||||
| 6. High flexility, uneasy distorted cable and imported electronic components guarantee the stability of operating the machines. | |||||||
| Technical Specifications | |||||||
| Performance parameter | 9015 | 1218 | 1224 | ||||
| X,Y Working area | 900x1500mm | 1200x1800mm | 1200x2400mm | ||||
| Z Working area | 250mm | 250mm | 250mm | ||||
| Table size | 1100x2000mm | 1400x2300mm | 1400x2900mm | ||||
| Processing precision | 0.05mm | 0.05mm | 0.05mm | ||||
| Reposition precision | 0.02mm | 0.05mm | 0.05mm | ||||
| Table structure | aluminium | aluminium | aluminium | ||||
| X,Y,Z structure | X,Y,Z ballscrew | X,Y,Z ballscrew | X,Y,Z ballscrew | ||||
| Command | G CODE | G CODE | G CODE | ||||
| Machine power | 2KW | 2KW | 2KW | ||||
| Max processing speed | 6000mm/min | 6000mm/min | 6000mm/min | ||||
| Max speed | 8000mm/min | 8000mm/min | 8000mm/min | ||||
| Working voltage | AC380V/50Hz | AC380V/50Hz | AC380V/50Hz | ||||
| Spindle power | 5.5KW | 5.5KW | 5.5KW | ||||
| Spindle rotating speed | 0-18000rpm/min | 0-18000rpm/min | 0-18000rpm/min | ||||
| Drive motor | Stepper | Stepper | Stepper | ||||
| Voltage/Frequency | 380V/50HZ | ||||||
| Operation system | PCI CARD control | PCI CARD control | PCI CARD control | ||||

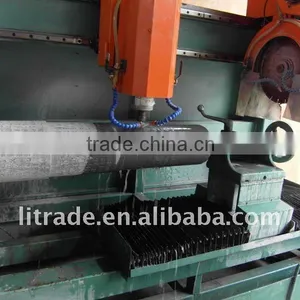

Engraving Machine and Engraving Products Samples
QUALITY CONTROL:
STONE FAIR:
OUR COMPANY:
OUR CUSTOMERS COVER:
We are the total supplier of stone machine and tools.For more products, please check our company website:. Thanks for your attention to our company!
