Stone Engraving Machine for Beautiful Stone Angel Sculpture

Stone Engraving Machine for Beautiful Stone Angel Sculpture thumbnail-1
Stone Engraving Machine for Beautiful Stone Angel Sculpture photo-1
US$ 6,000 - 12,000 MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Stone Engraving Machine
Use:
Granite
Contact Supplier Request Quote Chat Now
Xiamen Eastern Pegasus Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Stone Engraving Machine
Use Granite
Place of Origin Shandong, China
Brand Name TIANJUN
Model Number TJJZ
Voltage 380V
After-sales Service Provided Engineers available to service machinery overseas

Specifications

Stone Engraving Machine
For making sculpture
Heavy type special for stone engraving.
Different machine model offered

Heavy type stone engraving machine







Product Introduction

This series of models mainly used for heavy weight of the tile, bluestone, marble, granite, white marble, sandstone, such as a stone sculpture processing, category carved glass-cutting and engraving melting material.
Feature
1. X, Y, Z three-axis all the imported linear square orbit .
2. X, Y, Z three-axis all have the waterproof, dustproof system
3. Water cooling constant torque spindle with the imported bearing, high power, low tone.

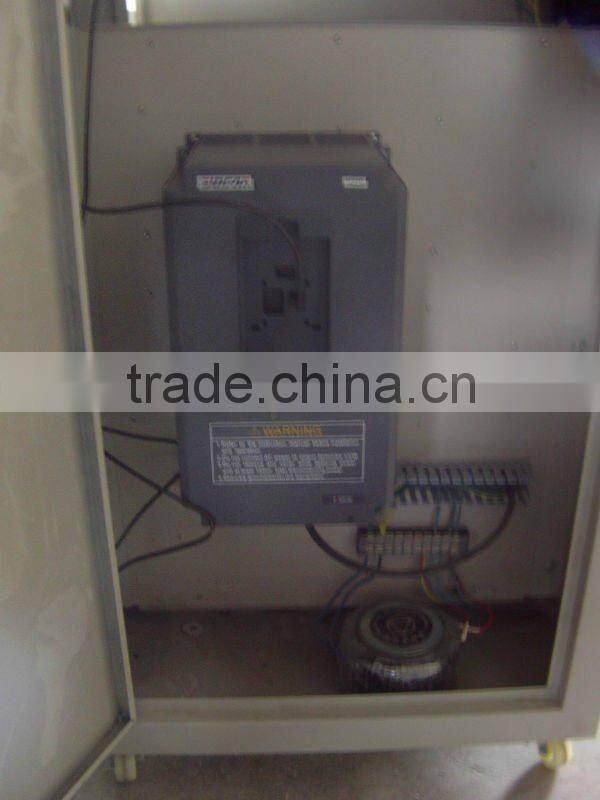

4. Adopt Taiwan transducer with stable output signals
5. Fully sgielded,bending circuity, and imported electronic components.
6. Adopt double drivers to drive y axis, motivity is more stronger
7.Whole seamless steel structure,can load weight up to 1000kg
Performance Features:
1. Three axises adopt import linear orbit, two line sliding track, heavy loading, stable working, high precision, long lifetime .
2. Whole seamless weld steel structure, not easy to distort, the table back lining is armor plate, good rigidity, the machine can bear 1MT weight at least.
3. Constant power spindle and motor, high cutting capability, high efficiency.
4. Well compatibility, compatible software CAD/CAM, such as Type 3, Artcam, Castmate, Artcuti, Coredraw.
5. Double direction cutters cooling system can prolong the lifetime of using.
6. High flexility, uneasy distorted cable and imported electronic components guarantee the stability of operating the machines.
Technical Specifications
Performance parameter 9015 1218 1224
X,Y Working area 900x1500mm 1200x1800mm 1200x2400mm
Z Working area 250mm 250mm 250mm
Table size 1100x2000mm 1400x2300mm 1400x2900mm
Processing precision 0.05mm 0.05mm 0.05mm
Reposition precision 0.02mm 0.05mm 0.05mm
Table structure aluminium aluminium aluminium
X,Y,Z structure X,Y,Z ballscrew X,Y,Z ballscrew X,Y,Z ballscrew
Command G CODE G CODE G CODE
Machine power 2KW 2KW 2KW
Max processing speed 6000mm/min 6000mm/min 6000mm/min
Max speed 8000mm/min 8000mm/min 8000mm/min
Working voltage AC380V/50Hz AC380V/50Hz AC380V/50Hz
Spindle power 5.5KW 5.5KW 5.5KW
Spindle rotating speed 0-18000rpm/min 0-18000rpm/min 0-18000rpm/min
Drive motor Stepper Stepper Stepper
Voltage/Frequency 380V/50HZ
Operation system PCI CARD control PCI CARD control PCI CARD control

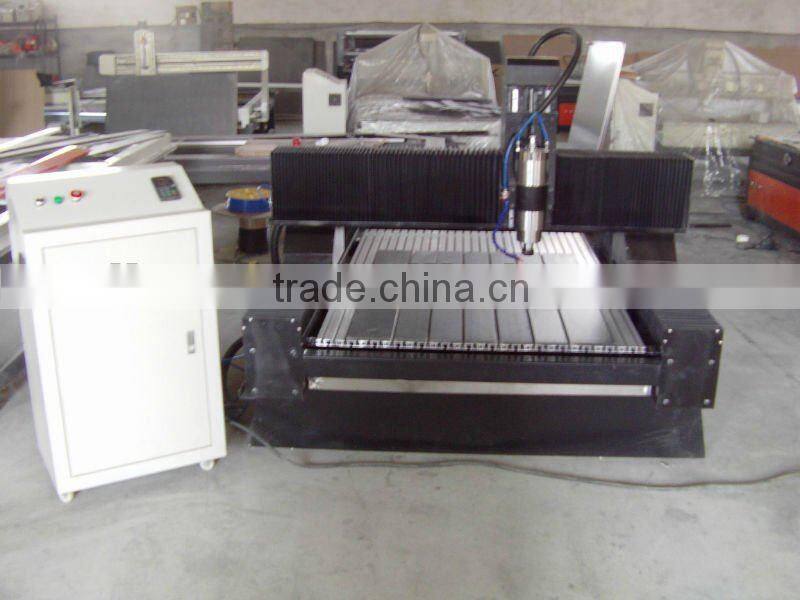

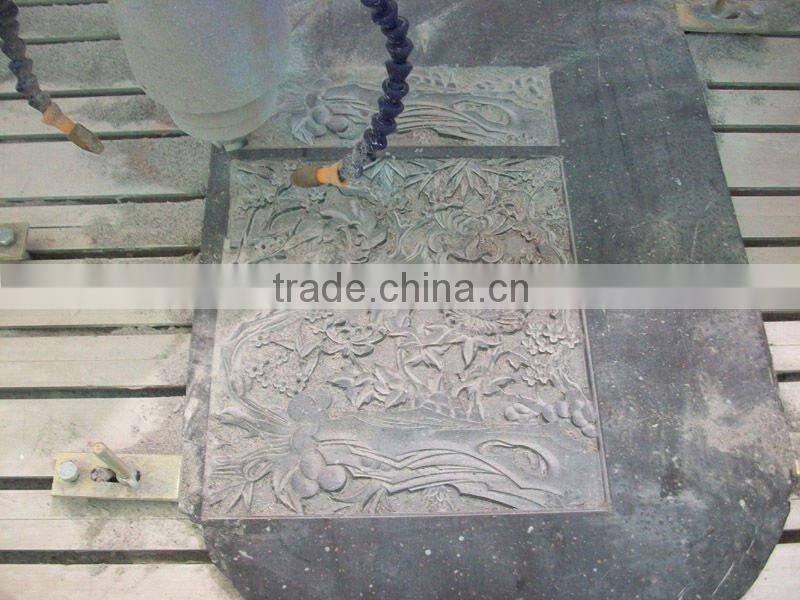

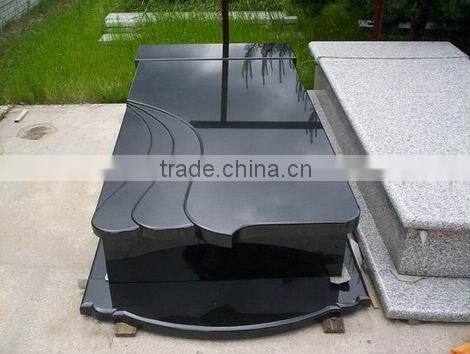

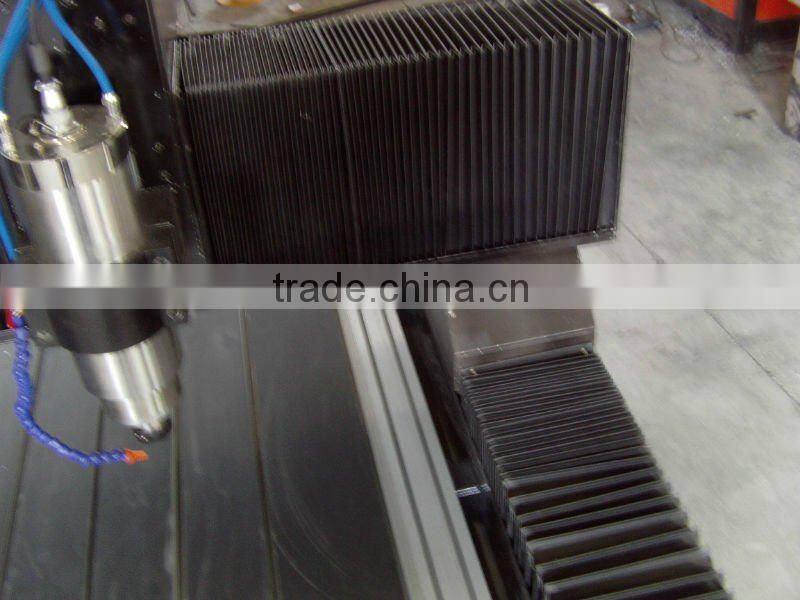

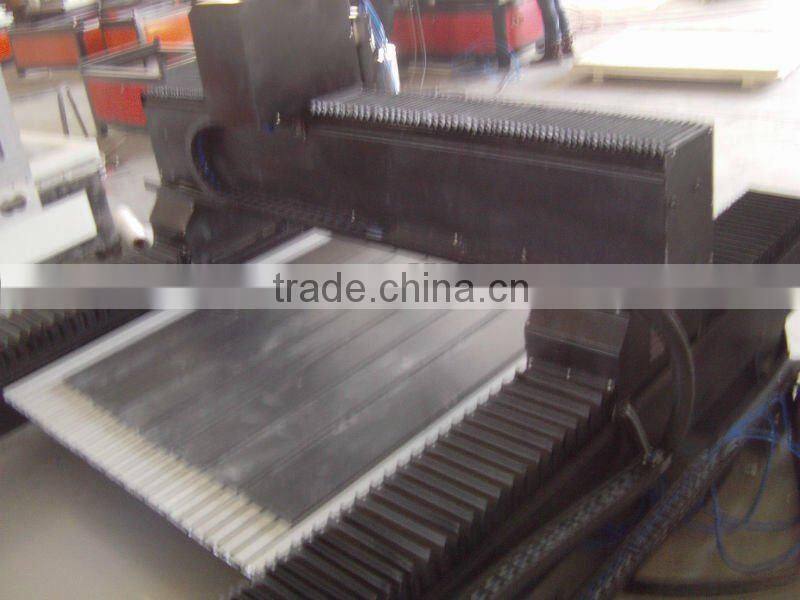

Engraving Machine and Engraving Products Samples





Stone engraving machine for beautiful stone angel sculpture  Stone engraving machine for beautiful stone angel sculpture







Stone engraving machine for beautiful stone angel sculpture   Stone engraving machine for beautiful stone angel sculpture







Stone engraving machine for beautiful stone angel sculpture   Stone engraving machine for beautiful stone angel sculpture









Stone engraving machine for beautiful stone angel sculpture







Stone engraving machine for beautiful stone angel sculpture

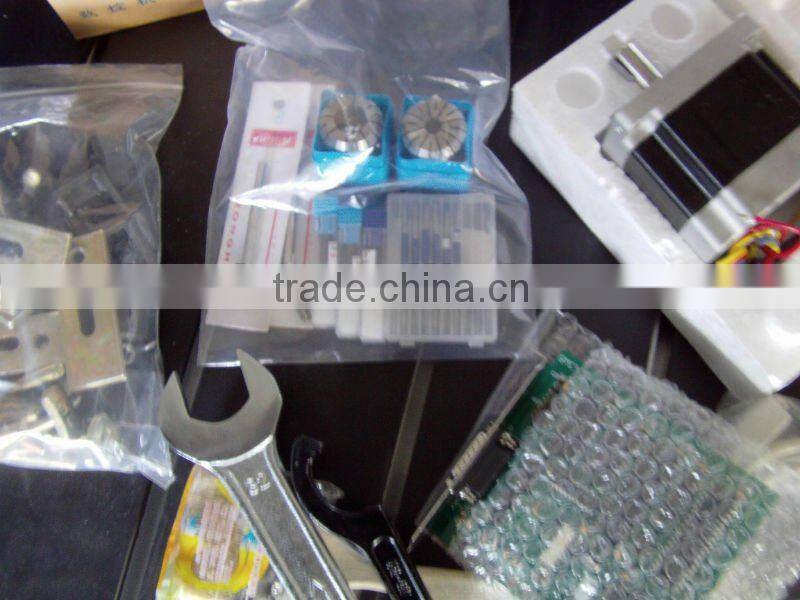

Engraving machine tools



Stone engraving machine for beautiful stone angel sculpture







QUALITY CONTROL:







STONE FAIR:



 Stone engraving machine for beautiful stone angel sculpture



OUR COMPANY:





OUR CUSTOMERS COVER:









 We are the total supplier of stone machine and tools.For more products, please check our company website:. Thanks for your attention to our company!
