Granite Marble Rotogravure Cylinder Engraving Machine
US$ 28,000 - 30,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Condition:
New
Type:
Stone Engraving Machine
Use:
Granite
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai port
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Router Bits for Wood Stone Engraving MachineUS$ 6,000 - 12,000MOQ: 1 Set -
CNC Engraving Machine Stone Engraving MachineUS$ 6,000 - 12,000MOQ: 1 Set
-
Multi Spindle 3d CNC Router, Tombstone Engraving MachineUS$ 5,000 - 10,000MOQ: 1 Set
-
Stone Engraving Machine 2014 High Quality,China White Marble MemorialUS$ 6,700 - 11,500MOQ: 1 Set
-
2014 Engraving Machine for Grave MonumentsUS$ 5,000 - 10,000MOQ: 1 Set
Condition
New
Type
Stone Engraving Machine
Use
Granite
Place of Origin
China
Brand Name
TIANJUN
Model Number
TJ-0315E-W
Voltage
380V
Power(W)
15KW
Weight
2000kg
After-sales Service Provided
Engineers available to service machinery overseas
TJ-0315E-W Engraving machine,Carving machine
| Model | TJ-0315E-W | ||||||
| Control system | 5-axis-linkage system+lathe tool 2-axis+spindle switching: 8axies totally | ||||||
| Cylinder charging size | Diameter 350mm,length1600mm | ||||||
| Cylinder carging size | Diameter 300mm,length1500mm | ||||||
| Cylinder carving depth | Max:100mm | ||||||
| Square-material size | Opposite angle 350mm, Length1600mm | ||||||
| Square-material carving size | Diameter 280mm,Length 1500mm | ||||||
| Square-material carving depth | Max:100mm | ||||||
| Carving speed | 6m every minute | ||||||
| Total power | 15KW | ||||||
| Voltage | 220v,alternatively 110v 60 HZ 380v,alternatively 220v 60HZ | ||||||
| 1#Electrical machinery of the main shaft | patent waterproof high-speed electrical machine | ||||||
| 2#Electrical machinery of the main shaft | patent waterproof high-torsion high-speed electrical machine | ||||||
| 3#spindle saw blade | high-torsion high-speed electrical machine(available for cutting 400mm pieces) | ||||||
| The rotation axis switching over the main shaft | The rotation axis switches over the main shaft. It can be used for late lathe and cylinder polishing | ||||||
| Mechanical shelf of speed 6of rotation axis | The rotation axis switching over the main shaft can regulate the speed under mechanical shelf. | ||||||
| Driving electrical machinery | patent low-speed high-torsion electrical machine | ||||||
| Driver | special protection driver | ||||||
| Transmission part | Original German small modulus ,high-accuracy gear wheel rack | ||||||
| Straight line guide rail | Original Taiwan rectangle heavy-load high-accuracy gear wheel rack | ||||||
| pipeline | Antioxidant patent water pipe and oil pipe | ||||||
| Electric apparatus circuit | Antioxidant long-life electric wire | ||||||
| cool | Circulating water-refluxing patent design | ||||||
| Weight | 2000kg | ||||||
Our Telephone No.: 0086-592-5551199

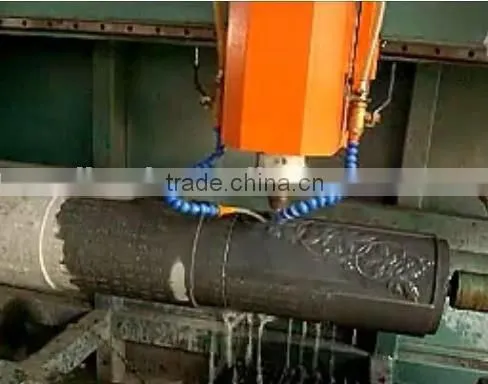

Carving machine photos:
