Home > Manufacturing & Processing Machinery > Metallic Processing Machinery > Metal Processing Machinery Parts > Multi Spindle 3d CNC Router, Tombstone Engraving Machine
US$ 5,000 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Place of Origin:
Fujian, China
Brand Name:
Tian Jun
Model Number:
TJ-JZ
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Stone Engraving Machine 2014 High Quality,China White Marble MemorialUS$ 6,700 - 11,500MOQ: 1 Set -
2014 Engraving Machine for Grave MonumentsUS$ 5,000 - 10,000MOQ: 1 Set
-
2016 New Type High Quality Machine for Engraving MetalUS$ 29,000 - 35,000MOQ: 1 Set
-
Stone Machine, Laser Engraving Machine, Headstone Engraving EquipmentUS$ 4,500 - 5,500MOQ: 1 Set
-
2014 Marble Machinery,CNC Headstone Engraving Equipment,with CE, Cheap Cnc MachineUS$ 7,000 - 9,000MOQ: 1 Set
Place of Origin
Fujian, China
Brand Name
Tian Jun
Model Number
TJ-JZ
Condition
New
After-sales Service Provided
Engineers available to service machinery overseas
Stone Engraving Machine,CNC router,CNC machinery
Product Introduction | |||||||
| This series of models mainly used for heavy weight of the tile, bluestone, marble, granite, white marble, sandstone, such as a stone sculpture processing, category carved glass-cutting and engraving melting material. | |||||||
| Feature | |||||||
| 1. X, Y, Z three-axis all the imported linear square orbit . | |||||||
| 2. X, Y, Z three-axis all have the waterproof, dustproof system | |||||||
| 3. Water cooling constant torque spindle with the imported bearing, high power, low tone. | |||||||
| 4. Adopt Taiwan transducer with stable output signals | |||||||
| 5. Fully sgielded,bending circuity, and imported electronic components. | |||||||
| 6. Adopt double drivers to drive y axis, motivity is more stronger | |||||||
| 7.Whole seamless steel structure,can load weight up to 1000kg | |||||||
| Performance Features: | |||||||
| 1. Three axises adopt import linear orbit, two line sliding track, heavy loading, stable working, high precision, long lifetime . | |||||||
| 2. Whole seamless weld steel structure, not easy to distort, the table back lining is armor plate, good rigidity, the machine can bear 1MT weight at least. | |||||||
| 3. Constant power spindle and motor, high cutting capability, high efficiency. | |||||||
| 4. Well compatibility, compatible software CAD/CAM, such as Type 3, Artcam, Castmate, Artcuti, Coredraw. | |||||||
| 5. Double direction cutters cooling system can prolong the lifetime of using. | |||||||
| 6. High flexility, uneasy distorted cable and imported electronic components guarantee the stability of operating the machines. | |||||||
| Technical Specifications | |||||||
| Performance parameter | 9015 | 1218 | 1224 | ||||
| X,Y Working area | 900x1500mm | 1200x1800mm | 1200x2400mm | ||||
| Z Working area | 250mm | 250mm | 250mm | ||||
| Table size | 1100x2000mm | 1400x2300mm | 1400x2900mm | ||||
| Processing precision | 0.05mm | 0.05mm | 0.05mm | ||||
| Reposition precision | 0.02mm | 0.05mm | 0.05mm | ||||
| Table structure | aluminium | aluminium | aluminium | ||||
| X,Y,Z structure | X,Y,Z ballscrew | X,Y,Z ballscrew | X,Y,Z ballscrew | ||||
| Command | G CODE | G CODE | G CODE | ||||
| Machine power | 2KW | 2KW | 2KW | ||||
| Max processing speed | 6000mm/min | 6000mm/min | 6000mm/min | ||||
| Max speed | 8000mm/min | 8000mm/min | 8000mm/min | ||||
| Working voltage | AC380V/50Hz | AC380V/50Hz | AC380V/50Hz | ||||
| Spindle power | 5.5KW | 5.5KW | 5.5KW | ||||
| Spindle rotating speed | 0-18000rpm/min | 0-18000rpm/min | 0-18000rpm/min | ||||
| Drive motor | Stepper | Stepper | Stepper | ||||
| Voltage/Frequency | 380V/50HZ | ||||||
| Operation system | PCI CARD control | PCI CARD control | PCI CARD control | ||||

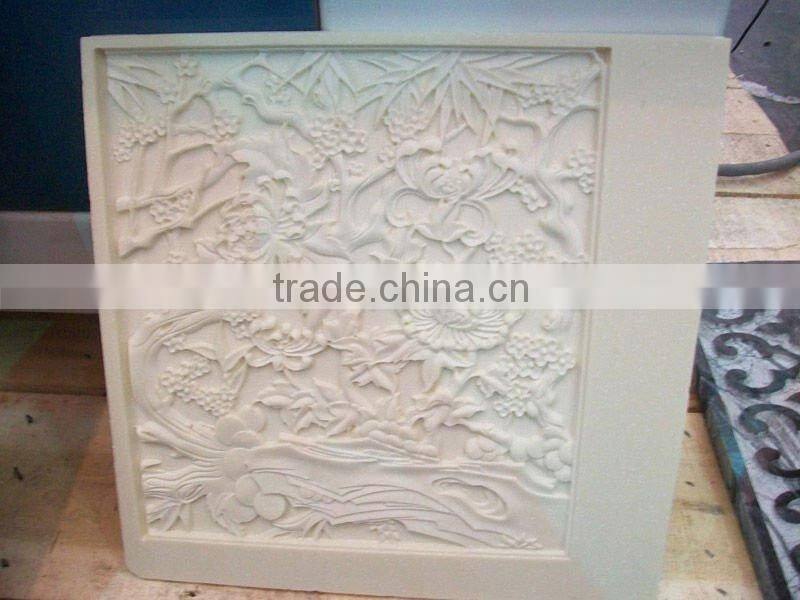

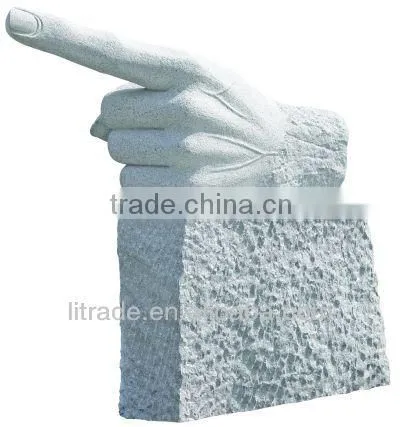

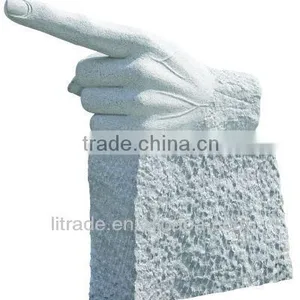

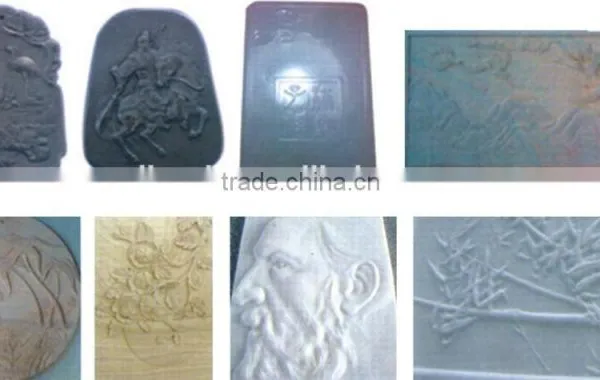

CNC Machine Samples

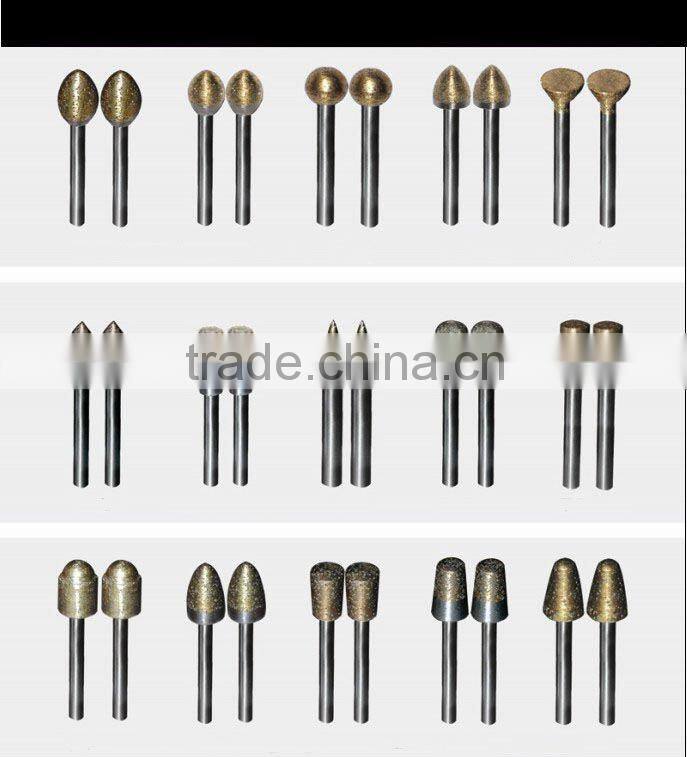

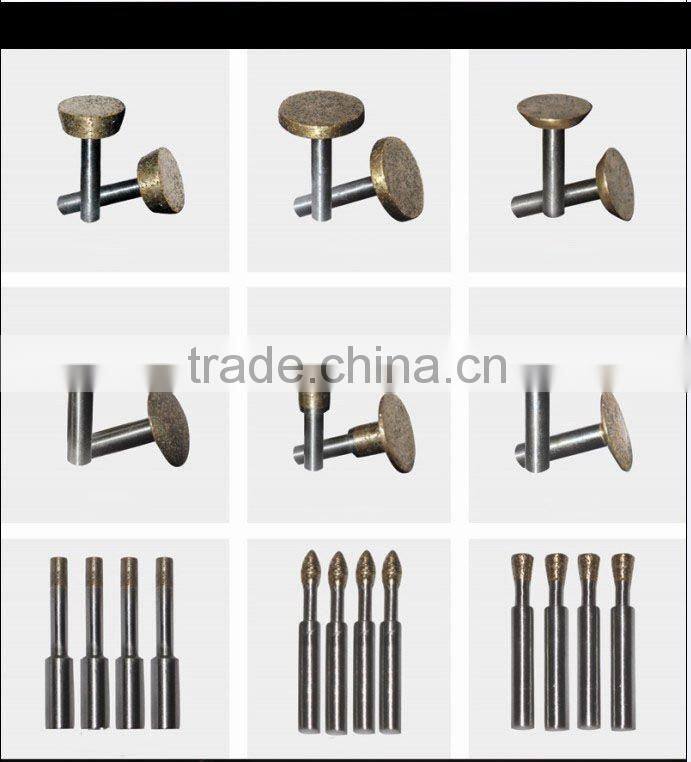

CNC machine engraving tools
