company introduce

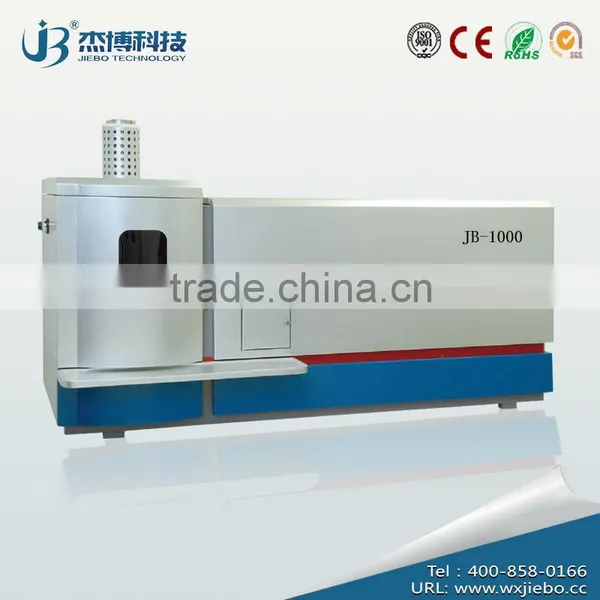

Wuxi Jiebo Electrical Technology Co., LTD. is the professional manufacture factory for analytical instrument with solid technical strength.The model JB-1000 Type Inductively coupled plasma single channel scan Atomic Emission Spectrometry is a large precisional and analytical instrument that complex light,machine,electricity and computer all-in-one.
The ICP can measurate elements more than seventy that diversified from microanalysis to constant analysis. It is wide-ranging application in geologic,metallurgy, thulium, plating, cement,oil,chemical, environmental detection, coloured metal, physic sanitation, food, geoponics, scientific research, college and mine factory etc. It is not only good selling within the similar goods in our country but also have good reputation in international market.
It is the honesty that our company based on. Relying on the strong after-selling service system, our client can incisively use the instrument performance to the advantage, that can satisfy the requirement of the quick and exact analysis performance of clients and avoid the trouble after selling.
Main characteristics:
1,The Self-sustaining radio frequency generator with power controlling makes the output power steady.
2,The design of the optimization optical reducing mottle light ,the high reticle ion etch holographic grating guarantee the high resolving power.
3,Adoptation of importation step motor and low modulus big-gear transmission framework guarantee scan precision.
4,Adoptation of intelligentize data transmission system heighten the analysis speed.
5,Adoptation of the Windows operating system of good operating system make the instrument operation convinient.
6,Adoptation of two grating for interconvert satisfy demanding of different users.
Technique index
Sample introduction system
1,Quartz tubes: 20mm three concentric type
2,Nebulizer: 6mm coaxial type
3,Atomization chamber: 35mm double canister type
4,Plasma gas flow: 100-1000L/h
5,Assistant gas flow: 6-60L/h
6,Carrier gas volume: 6-60L/h
7,Carrier gas pressure: Maximum 0.3Mpa
Radio frequency generator
1,Circuit type: Self oscillate circuit,coaxial-cable output, matching tune
2,Work frequency: 40MHz
3,Frequency stability: <0.1%
4,Power output: 800-1200W
5,Power output stability: <0.2%
6,Power supply: 220V 25A
Scaning spectrophotometer
1,Light way system: Czerny Turner type
2,Focus: 750mm,1000mm
3,Grating: Ion etch holographic grating,
reticle density 3600line/mm&2400line/mm.
reticle area (80x100)mm
4,Resolving power: ≤0.008nm
5,Scan wavelength range: 3600line/mm scan wave length range:195 nm-500nm
2400line/mm scan wave length range:195nm-800nm
6,Scan step distance: 0.0006nm
7,Scan repeat quality: ≤0.0006nm
Inspection system
1,The F/V switch circuit controlled by singlechip
2,Sampling time: 100ms-10s
3,Photomultiplier Tube: R212UH
4,PMT negative high voltage: 200-990V, stability ≤0.05%
Equipment technical index:
1,Analytic speed: Over 10 element per minute
2,Precision: Relatively standard deviation RSD≤2%(short time stability)
3,Stability: Relatively standard deviation RSD≤3%(one hour measure)
4,Measure line range: ≥5 scalar class
5,Inspect lowest limit: Typical element inspect limit reference below table
name | quantity | specifications |
RF generator | 1 | 40MHz,800-1200W |
Sample introduction system | 1 | Concentric quartz tubes,nebulizer,atomization champer,sealed water bottle |
Scan spectrophotometer | 1 | 750mm&1000mm |
Inspecting system | 1 | The F/V switch circuit controlled by single-chip |
Software of instrumental operating | 1 | The Chinese Windows operating system with compact disc |
Illumination and configure list | 1 |
|
