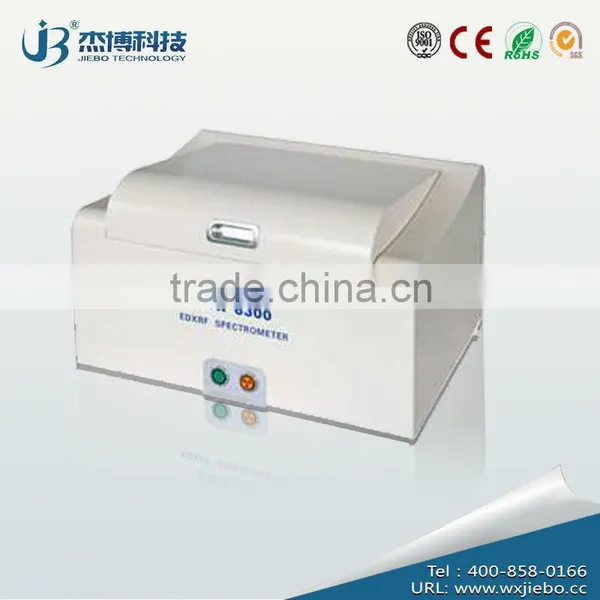

Help CenterEDX 8300 X-ray Fluorescence Spectrometer
Related Products
-
New JB-750 Wide Measuring Range Direct Reading Optical Emission QuantometerUS$ 15,000 - 35,000MOQ: 1 Set -
High Quality JB-750 Optical Emission SpectrometerUS$ 15,000 - 35,000MOQ: 1 Set
-
JB-750 Wide Measuring Range Direct Reading Optical Emission SpectrometerUS$ 15,000 - 35,000MOQ: 1 Set
-
JB-750 Qualified Metal Elements Quantometer/Optical Emission SpectrometerUS$ 15,000 - 35,000MOQ: 1 Set
-
New JB-750 Wide Measuring Range Optical Emission SpectrometerUS$ 15,000 - 35,000MOQ: 1 Set
Application:
ROHS,toy safety,electronics,ceramics and plastics,leather jewelry,environmental protection,food safety,plating thickness,metal alloy and so on.
Technical specification:
Measurable element: element K (potassium) - element U (uranium),total 72 elements.
Element content:2 PPM - 99.99%;
Measurement time: 100-300 Seconds
Energy Resolution: 149 ± 5 ev
X-ray tube maximum output current: 1mA;
High voltage maximum output power: 50w(Voltage:5-50Kv Current:50-1000uA)
Sample chamber size: 610mm*320mm*100mm
Volume: 700mm*430mm*400mm
Weight: 68kgs
Main Feature:
EDX8300 is a special product which designed by ROHS, EN71 environmental directives.
Break the traditional instruments’ straight design,adopt the streamlined design in overall body, really
fashion and simple.
Adopt Newest Si-pin detectors, Cooling by electric rather than liquid nitrogen,small size, accurate
data analysis,and low sped in maintenance cost.
Using self-developed SES signal processing system,could effectively improve the sensitivity in
measurement,and give a accurate measurement.
One-touched automatic test,more easier operation,more convenient,and more humane.
Seven kinds correct systems for lighting path correction,could be switched automatically by different
kinds of sample.
Multiple protection design against radiation leakage,own the highest level among the similar
products in same level.
Advanced integrated radiating design,which greatly improve the whole cooling performance,and
ensure the safe operation of the core components.
Unique movement temperature control technology, which ensure the safe and reliable operation of
the X-ray source,extend its long-life time,and reduce the using cost.
Multiple protection system in instrument parts,could control the entire process through Software,
which will make the instrument more stable and secure while working.
Special test software for RoHS,standard window design,friend interface,easy Operation.
Adopts USB2.0,effectively ensure the data’s accurate and rapid transmission.
Main Configuration
Si-pin Electric Cooling Semiconductor Detectors: (The Newest Detector Type)
Si-pin Electric Cooling semiconductor detector;Resolution: 149±5 Electron Volts
Amplifier Circuit Modules:Detect the sample feature X-ray;Enlarge the collected Information.
X-ray Excitation Device:
Filament Current Maximum Output: 1mA;
Belongs to the semi-loss components,Lifetime use more than 20,000 hours.
High Voltage Transmit Device :
Maximum Voltage Output: 50kV.
Minimum 5kv Controllable Adjustment.
Overvoltage Protection by itself.
Muti-channel Analyzer:
Convert analog signal into a digital signal,and send the results to the host computer Software.
Maximum Channels Number:4096.
Including the signal enhancement processing.
Light Path Filtering Module
Reduce the interference of the X-ray light send,ensure the accurate detector signal data.
Integration the collimator and the filter.
Collimator Automatical Switch Module
Up to six options, caliber are 8-1#, 8-2#, 8-3#, 3# ,1#, 1-2v#.
Filter Automatical Switch Module
Free selection and switching of the five kinds filter.
Free Combination Module between Collimator and Filter
Up to dozens free combination between collimator and filter.
Automatical Curve Selected Module
Select the working curve automatically,without manually operation.Avoid human error,perfect combine the automation with the intelligent operation,make it more ser-friendly, and more
convenient.
Working Conditions:
Working temperature:15-30°C
Relative humidity: 40%~50%
Power Source: AC :220V ±5V
Sample configuration
Standard samples be used to making working curve
Sample Chamber:Open Type Large style sample chamber
Standard Sample:EU Standard Sample EC680K
Pure silver samples
Warranty and After-sale Service
Free Training to customers.
Free training in user’s location about installation,debug,test,training and technical services.
We provide one year warranty against normal daily use problems or material defects,but the term is there are no other person disassemble action besides our own engineers.
Lifelong Maintenance.
Provide Free Software Upgrades;
Provide the most effective technical services,and respond customers within 24hours.
