2015 Newest Paper Cup Flexo Printing Press With Doctor Blades

Name: 2015 Newest Paper Cup Flexo Printing Press With Doctor Blades
Brand: Tiansheng
SKU: 119542749
Availability: InStock

US$ 20,000 - 100,000 MOQ: 1 Set

Key Specifications

Condition:

New

Plate Type:

Letterpress

Place of Origin:

Zhejiang, China

Ruian Tiansheng Packing Machinery Co., Ltd.

Payment & Shipping

Payment Methods:

Port of Shipment:

Ningbo

Delivery Detail:

Delivery time depends on order quantity.

Condition New

Plate Type Letterpress

Place of Origin Zhejiang, China

Brand Name Tiansheng

Model Number YTB-4600

Usage Other, packing material printer

Automatic Grade Automatic

Voltage 380V,3Ph,50Hz

Gross Power 22kw

Dimensions(L*W*H) 5*1.8*2.6m

Weight 2800kg

Certification CE and SGS

After-sales Service Provided Engineers available to service machinery overseas

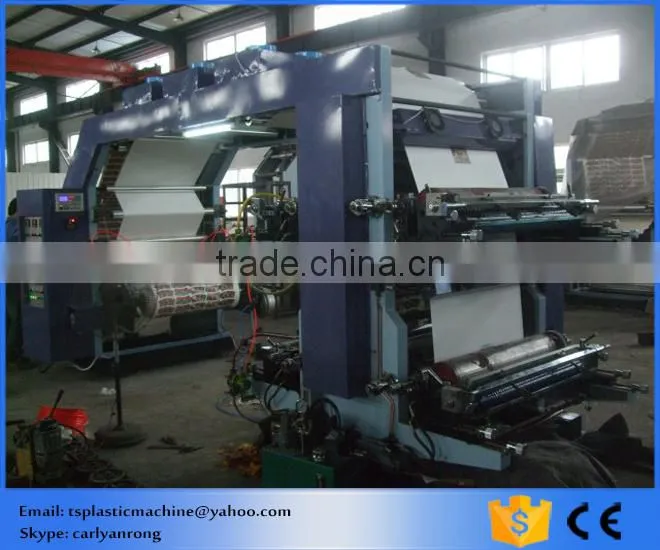

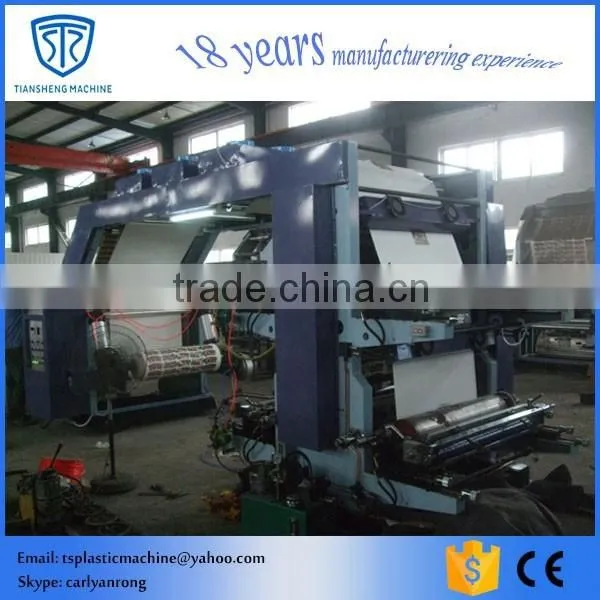

paper cup flexo printing press with doctor blades

Usage:	This paper cup flexo printing press is suitable for printing such material like, glass paper and roll paper, etc.
Colors:	4 colors
Material:	Plastic film in roll, paper in roll, non-woven in roll, ect.

paper cup flexo printing press

Model of Machine	YTB-4600
Max. Printing Width	560mm
Length Range of Printed Product(mm)	7.5"~40"(190mm~1000mm)
Printing material	PVC:35~70μm,OPP:20~70μm,BOPP:18~60μm,PE:35~100μm, NY:20~50μm,PET:12~60μm,CPP:20~60μm, paper20~350g/m2
Max. Diameter of Roll Material	Φ600mm (for unwinding) Φ600mm (for rewinding)
Printing Speed	50-80m/min
Printing plate lifting system	Automatic Hydraulic cylinder control printing lifting system
Tension system	Full automatic tension control for unwinding and rewinding (2PCS)
Web guider(EPC system):	infrared edge position control(1pcs)
Unwinding loading and rewinding unloading way	By air shaft , with magnetic 2 pcs With 3.5 kw motor compages rewinding
Printing Pressure	Mecahnical adjust
Anilxo roll	Ceramic anilox roller
Drying power	20kw centralized drying system (it is special with double surface blowing ,wind cooling circulate, ceil cooling blower, drying fast,also with high speed drying for fastness
Drying system	Centralized drying system
Doctor blade system	Doctor blade system for each unit
Gear system	Helical gear system
Thickness of plate(Including Two-sided Glue Paper)	2.38mm
Total Power	22kw
Weight of Machine	2800kg
Overall(mm)Dimensions	5000X1800X2600

paper cup flexo printing press

Features of paper cup flexo printing press
1.Low speed and full load startup; stable running by tension control when increasing and decreasing speed, noise is decreased	2.High dots presentation rate under high speed; clear and vivid stratification of screen printing; strong stereo effect and accurate registering
3.Aluminum roller adopts the Japan semi-sealing small bearing; flinty oxidation,static and dynamic balancing treatments are conducted; low resistance and small flop.	4.The special made modulus angular gears adopted printing size and full printing specifications (5mm is spec)
5.With the air exhaust, blowing and heating settings; the heating system adopts the central thermostatic control system and group management, also with the cold air forming devices	6.Printing rolls should keep moving while machine halted
7.Material holder use air shaft	8.Auto tension control
9.Unwind with auto deviation correction system (EPC)	10.one set of printing cylinder, size 15 inches

Free spare parts with paper cup flexo printing press
No.	Name	Quantity
1	Tool Box	1 set
2	1-10# screwdriver	1 pcs
3	oil gun	1 pcs
4	Inner Hexagon Spanner	1 set
5	Switches	2 pcs
6	Contactor	2 pcs
7	heating tube	2 pcs
8	Machine operation instruction	1 pcs
