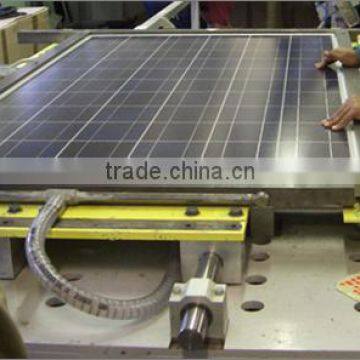

Keyland Solar Panel Framing Machine
- 50 Set / Sets per Month
- Shanghai
- T/T Credit Card
- Keyland Solar Framing Horizontal Machine
- Jiangsu KEYLAND Automatic Solar Module Framing Machine
- Keyland Solar Panel Framing Machine for Solar Panel Encapsulation Quality Choice
- Keyland Solar Module Casing & Framing Machine
- Jiangsu KEYLAND PV Frame Machine for Solar Production Line
- Jiangsu KEYLAND Solar Panel Manufacturing Equipment Type Framing Machine
Product Details
Place of Origin: | Jiangsu, China | Brand Name: | Keyland | Model Number: | GSP-A solar panel framing machine |
Type: | Other |
Packaging Details
plywood package for solar panel framing machine
Product Description
Hydraulic Drive Solar Panel Framing Machine
Keyland Solar Panel Framing Machinery Technical specification:
without bump horny Air cylinder, linear rail, steel structure
The equipment can combine solar aluminum frame and solar panel at one time. Combining frame and riveting as a whole four corners of aluminum rectangular frame can be riveted at the same time. Long and wide size stepless adjustable operation easy, flexible and convenient.
First, the safety instructions:
1. Must use the single-phase AC power supply 220V/50Hz, prohibited the use of other power sources.
To prevent electrical shock and electrostatic interference, equipment power supply must be good grounded.
2. Stable and continuous gas supply, pressure 0.4Mpa-0.8Mpa.
3. During pneumatic advancing process, the operator can not touch the device, to prevent hand clamped.
4 must cut off the power before servicing, gas source.
5 non-professionals can not operate the equipment.
Second, the main performance and technical parameters:
1 Suitable for aluminum alloy frame - angle position using angle code riveted connections.
2. For aluminum alloy frame, other metallic and non-metallic materials, extrusion positioning screw connection
(user specified before ordering).
3. Sizes for a variety of border profiles.
4. Technical parameters:
a. Min. framing Dimensions: 350 × 350 × 35 mm
b. Max framing Dimensions: 2100 × 1150 × 500 mm
c. Framing accuracy: the difference of right edge size is ±1mm, the difference of diagonal size ± 1.5mm
d. Power supply: 220V ± 10% 50HZ
e. Gas source: Pressure 0.4Mp-0.7Mp
f. Working ambient temperature: 10 °C -40 °C
g. Weight: 900Kg
Third, equipment installation:
1, Framing machine should be installed near power supply, gas supply and having spacious place.
2, Adjusting foundation bolts, keep the guide rails of machine bed consistent level.
3, Access to power and gas supply, gas supply pressure is 0.4Mpa-0.8 Mpa.
Other Solar Panel Production line Equipments:
More details will be answered , if you kindly leave us a massage .
