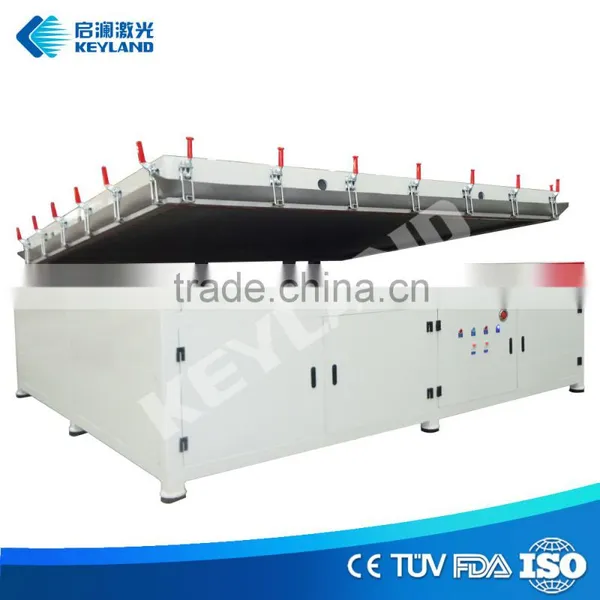

Solar system producer Semi Automatic Pv module Solar panel laminating / laminator machine 2200x2200 / 2200x3600
Solar module/cell laminating area:
2200mm*1100mm (Semi-automatic type)
2200mm*2200mm(Semi-automatic type)
2200mm*3600mm( full-automatic type)
Solar Panel Laminator Machine Function
The solar panel laminating machine is most important process in the solar panel production line.it use to bond multiple layers of materials (EVA, Glass, Backsheet, Solar cell) together by heating vacuum in laminator chamber.
Spec. of Solar Semi Automatic Laminator :
Power:AC380V 3 Phase five line | |
Mode of heating |
Oil |
Degree of vacuum |
200----20Pa |
Way of temperature control |
PLC Intelligent Temperature Control |
Laminated cavity height |
20mm |
Compressed air pressure |
0.6----1.0MPa |
Evacuation time up to operating pressure |
5----6 minutes |
Control way |
Touch screen |
Control Method |
AUTO/MAN |
Lid height |
Max 500mm |
Temperature control precision |
≤±1°C |
Temperature uniformity |
±1.5°C |
Compressed air flow |
0.42-0.8m³/min |
Laminating time |
2----4 minutes |
Solar Semi Automatic Laminator 's Spec.
Model |
Laminating area(mm) |
Solar module power (W) |
Laminating QTY |
Production capacity per year (MW) |
|
KL-1122 |
1100*2200 |
160w |
1 set |
2.6 |
200w |
3.2 |
|||
230w |
3.8 |
|||
270w |
4.4 |
|||
|
KL-2222 |
2200*2200 |
160w |
2 sets
|
5.2 |
200w |
6.4 |
|||
230w |
7.5 |
|||
270w |
8.7 |
*The production capacity is based on 20 working hours per day in 300days (just for reference)
Character of Solar Semi Automatic Laminator :
1. Mode of heating:High temperature thermal oil heating,Intelligent PID Control,Good temperature uniformity.
2. Lamination pressure: Adjustable pressure,range0.02----0.1MPa
3. Device structure
- Feed in/ out mode: Platform board for easy access to materials
- Way openings:Hydraulic chain lift arms,high balance,Secure and Reliable.
- Heating plate design:High manganese steel,flatness indeformable,oil by-hole loop structure,fast heat conduction,high heat efficiency.
- Character: Upper flange structural design
- PLC Intelligent Temperature Control
- Intelligent control
- High vacuum indicator
Ready material carrier
Module transfer carrier
Laying upstation
Inspection station
Trimming table
Cleaning table
More detials will be confirm , if you kindly leave a massage or contact us as follow :
CLICK "CONTACT SUPPIER" or "SEND MESSAGE" to send offer to me through alibaba.
