Specifications
Solar Module Frame Machines PricePneumatic hydraulic power
100% On time Delivery
Frame Solar Panel Machine
Solar Panel syst
Hydraulic Pressure Solar Module Frame Machines Cost
10 Years Solar Produce experience / Solar PV Production line/ Solar Panel System
Main Parameter
| Max. Frame dimension (Four corners): 1000mmx2000mmx50mm | Working pressure: 0.4Mpa—0.8Mpa |
| Accuracy of Frame: The difference of the edge size is(+/-)1mm | The hydraulic pressure: 1.0Mpa-16.0Mpa |
| Min.Frame outside Dimension (Four Corners): 400mmx400mmx35mm | Machine size: 3000mm*1800mm*920mm |
| Power of frame: Pneumatic, hydraulic power | Working voltage: 380v |
| The difference between the diagonal dimension: (+/-)1mm | Model:KL-M1 |
| The difference between the four angles: (+/-)0.50 | Weight:1200kg |
Solar Panel Frame Machines Pictures
Machine of Solar Panel Frames Machine Efficiency
Solar Panel’s box group must be operated by Two people, It take 40-60 Seconds to Finish a working -cycle.

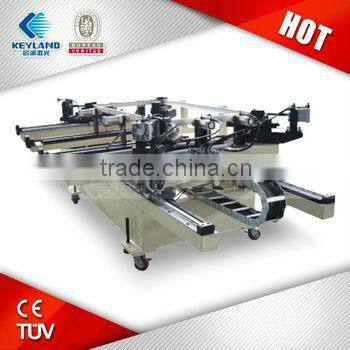

Solar Panel Frame MachineCharacteristic
1.Panel frame machine are component with Cylinder and steel structure,can realize the finished solar panel Aluminium edge positioning. To Make Sure the work simply and save time, enhance the product quality.
2> Frame machine have the rotary wheel, can make sure the different direction to assembly of solar panel and protect the surface of solar panel, easy to operation
3> The accuracy can reach:+1mm
4> Suitable for different aluminium product, One time to finished pressing and frame
|

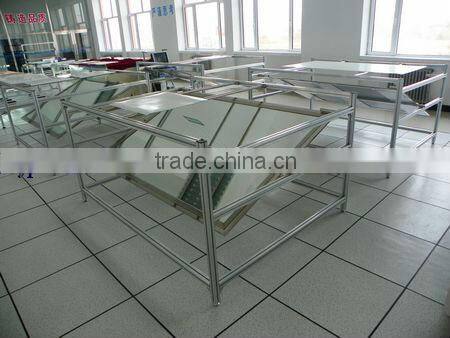

Surface observation mirror Function: Testing solar panel Broken or Crack 2> Angel can adjust |
|
EVA Cutting Table Size:2.9*1.22*0.87M Characterize :Feixable, can both Alternate cutting Can custom made
|
|
|

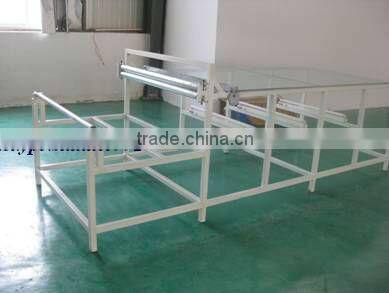

Lay up Station Size:2.32*1.1*0.86M Characterize:
|
|
|

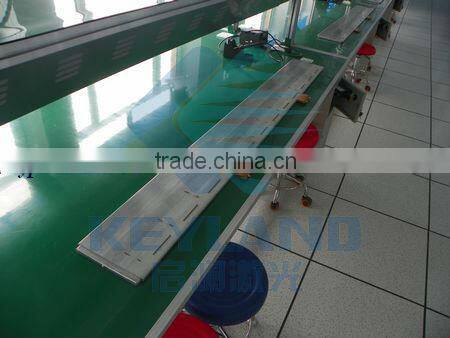

Welding table Device Description: it is made of 40x40mm aluminum profile, 0.8mm steel plate spray smoke duct, Philips lighting, 2mm thick grass green matte anti-static carpet, 1 string-welding, 2 Single- welding heating position, four table in a line; each table equip with two 40W Matsushita lamps
|
| Jiangsu KEYLAND Laser Technolog Co.,LTD | |
| Contact person: Simmer | Skype:simmer991 |
| Email: simmer"at" keylandlaser "dot" com | Phone Number:+86-159 2648 1511 |
