Specifications
Solar Module Framing Machine1.Compound-Framing-machine -Aluminum alloy materials
2.By Air cylinder
3.Steel structure
4.CE

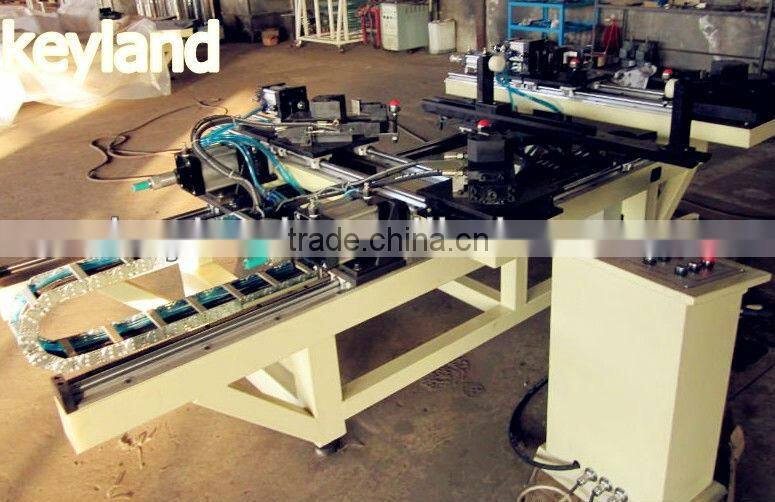

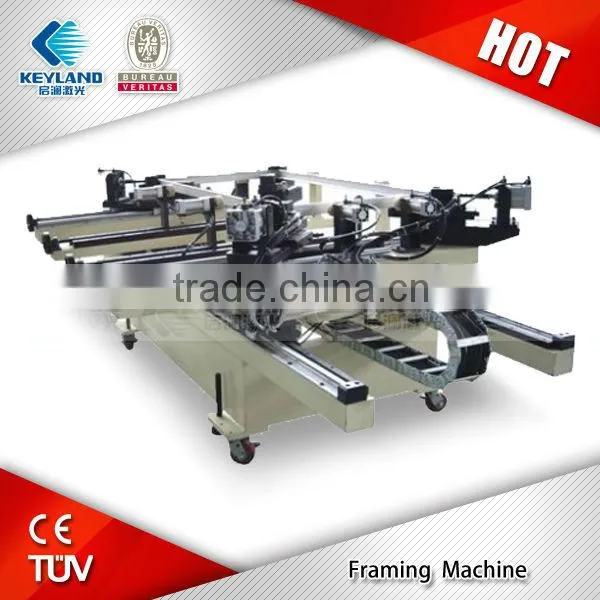

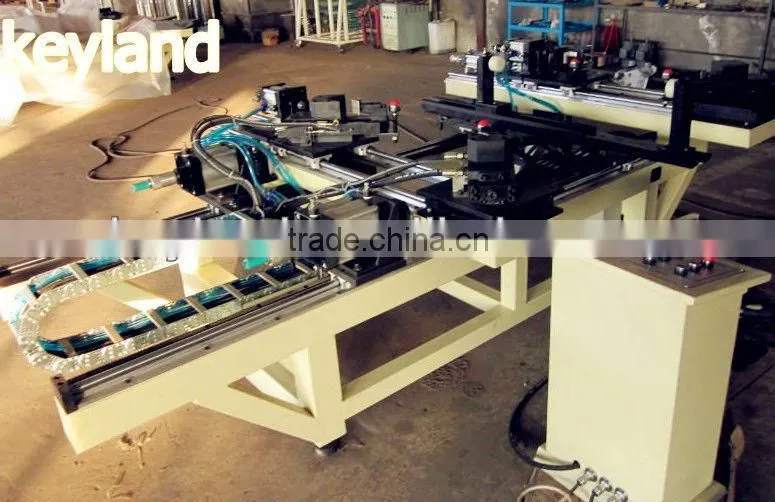

Automatic Solar Module Framing Machine
Solar module framing machine is framing up various materials in the automatic solar module production line, like silicone rubber and gummed strip.
|
(Model:KL-ZKJ) without ram
|
Compound-Framing-machine -Aluminum alloy materials By Air cylinder, and steel structure Universal wheel makes operation Convenient Two-way fixed end and two-way activity Framing accuracy:+1 Scope of framing:0.18*0.18m 2.0*2.0m Can be designed according to your request. |
|
|
(Model:KL-M1) with Ram
Compound-Framing-machine -Aluminum alloy materials By Air cylinder, cylinder, direct rail and steel structure
|
Model No |
KL-m1 |
Max. Framed Dimensions |
2000*1200*(35~30)mm |
|
Min. Framed Dimensions |
200*180*(35~30)mm |
|
Framing precision |
1mm |
|
Diagonal size of the difference |
±1.5mm |
|
Square angular deviation |
±0.5 |
|
Driving force of frame |
Pneumatic, hydraulic |
|
Working Pressure |
0.4Mpa~0.7Mpa |
|
Size of mc |
2.9*1.9*0.97m |
|
Hydraulic Pressure |
1.0 Mpa~15Mpa |
|
Operation |
manual |
|
Weight |
1200KG |
|
Perform Accuracy: |
Difference between the opposite sides within ±1mm |
|
Difference between the diagonal sides within 1.5mm; | |
|
Difference between the four angles within ±0.5degree; |
* Can be designed according to clients' request.
Also other solar panel making line's equipments can be supplied by keyland:
Our production line include:
1.Solar module tester
2.Semi-automatic laminator
.Solar cell tester
4.Extrude framing
5.El Tester
6.Single welding heating plate
7.String welding hearing plate
8.String welding hearing plate
9.String welding cell cassette
10.Auxiliary working table
11.soldering station
12.Laying up station
13.Ready material carrier
14.Ready pressing table
15.Multi-angle observations holder
16.EVA, TPT cutting station
17.Cell string shelf
18.Cell sorting table
19.Trimming working table
20.Thermostatic electric iron
Contact Lucia Lv ,
Exact details with good price will be sent.
Hope to cooperate with you.
