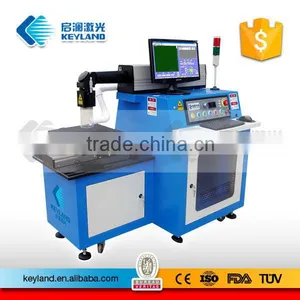

Low Consumable 50watt Diode Solar Cell Laser Cutter
US$ 9,500 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Laser Type:
Diode
Applicable Material:
Other, silicon wafer, solar cell
CNC or Not:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Keyland Diode Laser Scribing Machine for Solar CellsUS$ 5,000 - 13,000MOQ: 1 Set -
Tiny Cutting Kerf Silicon Wafer Laser Cutting MachineUS$ 9,500 - 10,000MOQ: 1 Set
-
PC Based Silicon Wafer Laser Cutting MachineUS$ 9,500 - 10,000MOQ: 1 Set
-
1064 Nm/ 532 Nm/ 355 nm Thin Film Laser Scribing MachineUS$ 9,500 - 10,000MOQ: 1 Set
-
30-60um A-Si C-Si Thin Film Laser Scribing MachineUS$ 9,500 - 10,000MOQ: 1 Set
Laser Type
Diode
Applicable Material
Other, silicon wafer, solar cell
CNC or Not
Yes
Control Software
KEYLAND
Graphic Format Supported
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Cooling Mode
Water Cooling
Place of Origin
Jiangsu, China
Brand Name
KEYLAND
Model Number
GSC
Certification
CCC, CE, GS, ISO, SGS, UL
After-sales Service Provided
Engineers available to service machinery overseas
Low Consumable 50watt Diode Solar Cell Laser Cutter
Application
KEYLAND GSC's series solar cell laser cutter has been widely used for solar cell cutting.
Individual cells can vary in size from about 1 cm (1/2 inch) to about 10 cm (4 inches). Most photovoltaic cells are about ten percent efficient in covering sunlight to electricity with further research being conducted to raise this efficiency to fifteen-twenty percent. t.

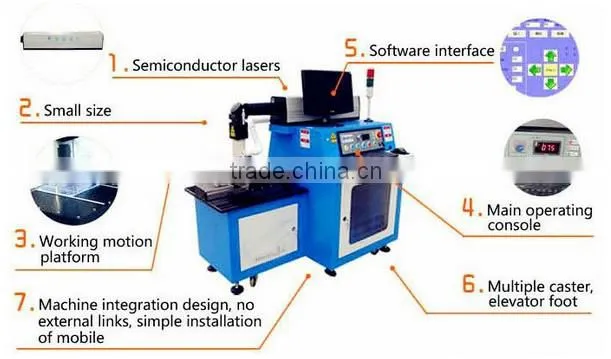

Features

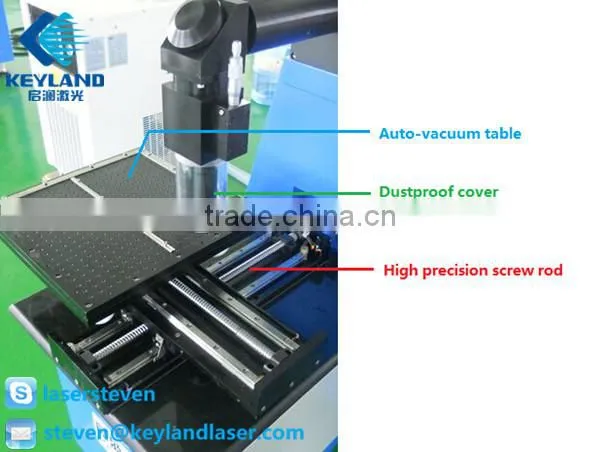

- Auto vacuum worktable.
- Lower cost compared to fiber laser.
- High precision motion system: Panasonic servo motor + screw rod.

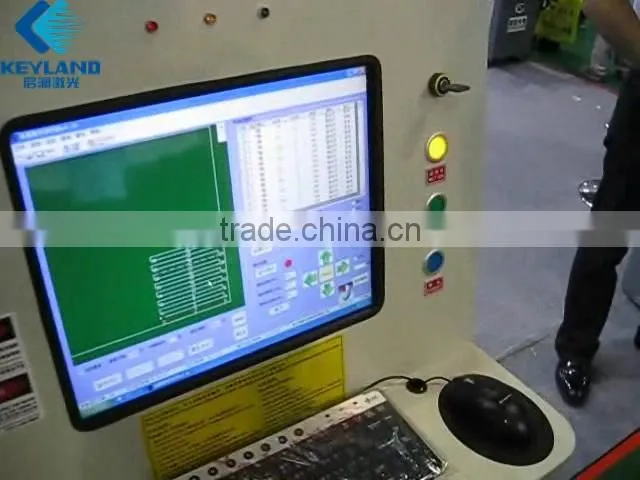

- Powerful software easy to operate with cutting path preview.
- Foot-switch control
Specs
| Model | GSC-50S | GSC-50K |
| Output power | 50W Diode | 50W YAG |
| Cooling way | Water | Water |
| Wavelength | 1064nm | |
| Scribing line width | 0.05mm | |
| Max cutting speed | 120mm/s | |
| Scribing accuracy | 0.01mm | |
| Laser repetition frequency | 20KHz-100KHz | |
| Worktable moving speed | ≥80mm/s | |
| Working table |
Automatic vacuum 350*350mm |
|
| Temperature control accuracy | 0.5°C | |
| Power supply | 380V/220V, 50Hz, 3kVA | |

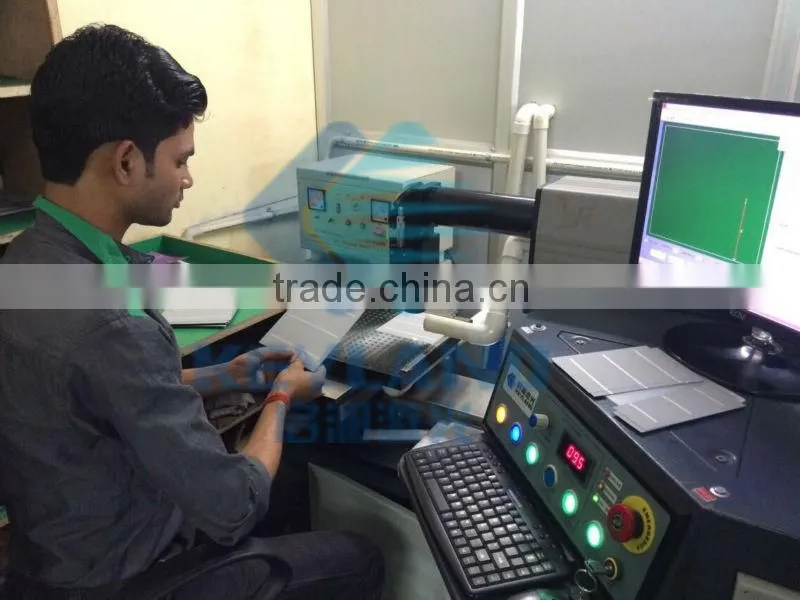

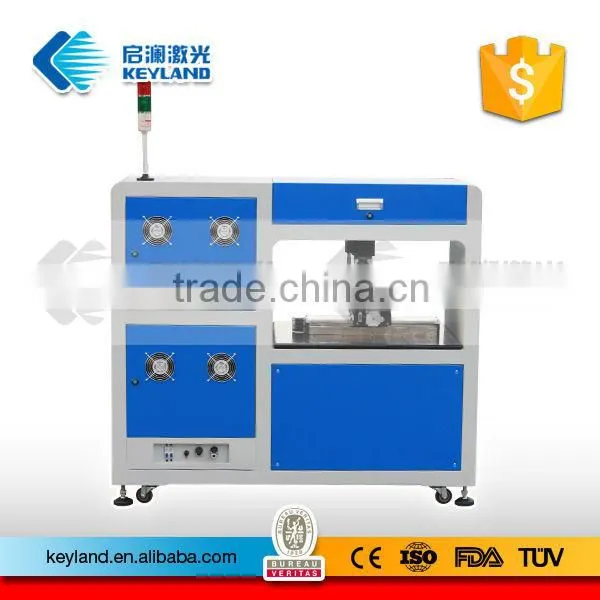

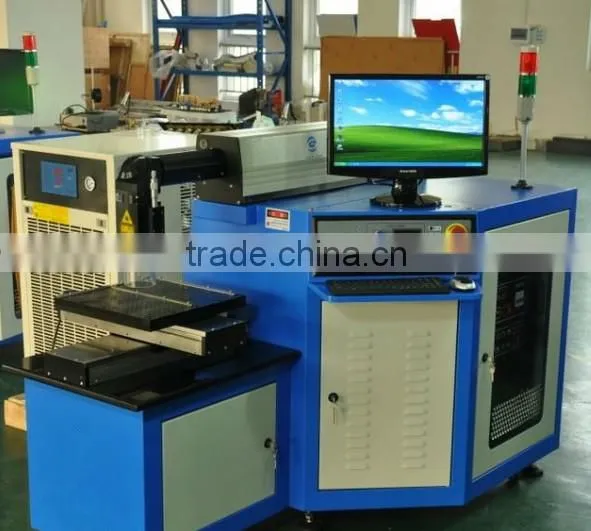

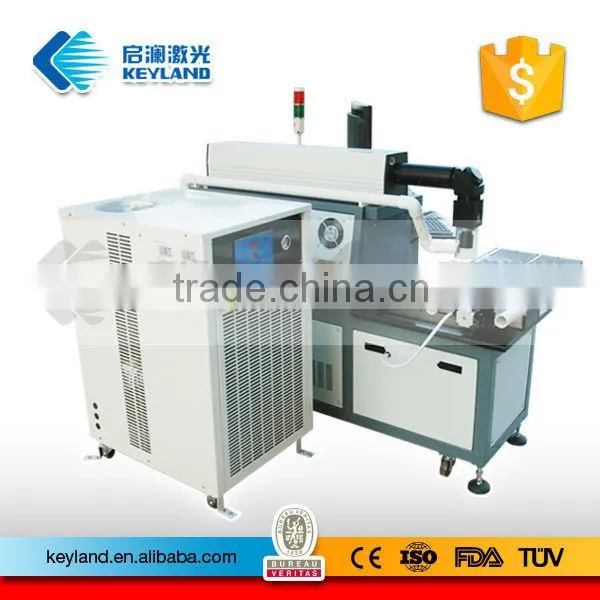

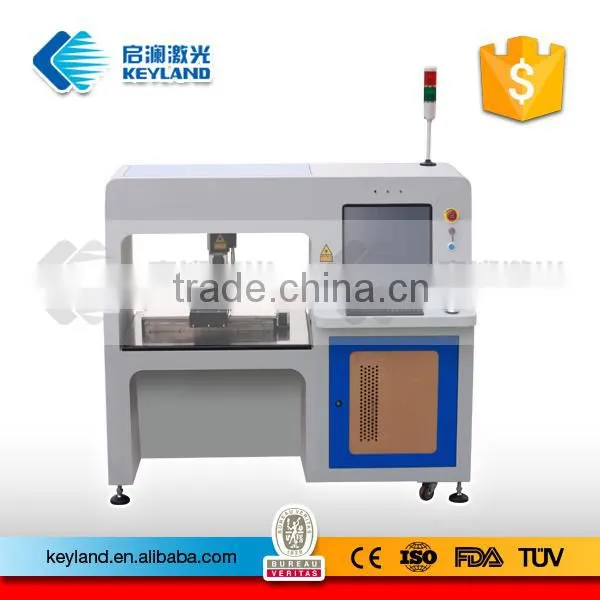

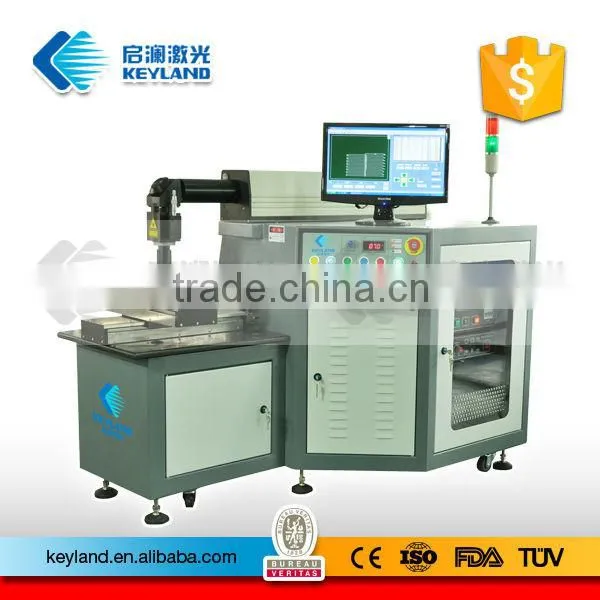

Machine Photos

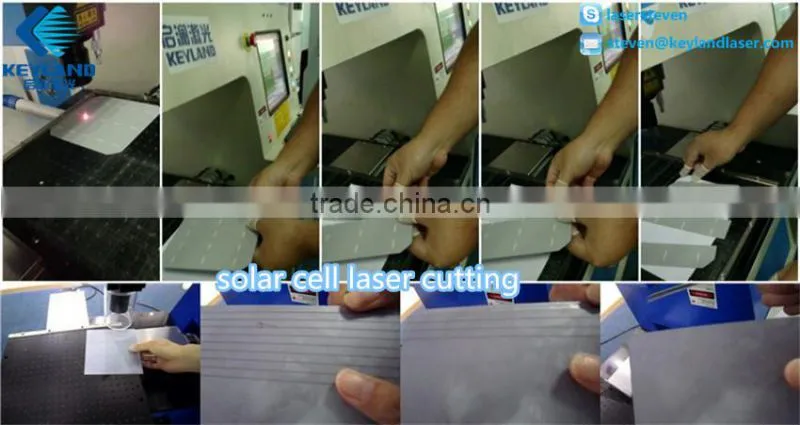

Work sample
DEMO VIDEOS
(copy the link to a new tab to watch)
| Solar cell scribing | http://youtu.be/j8coMUMP5Qs |

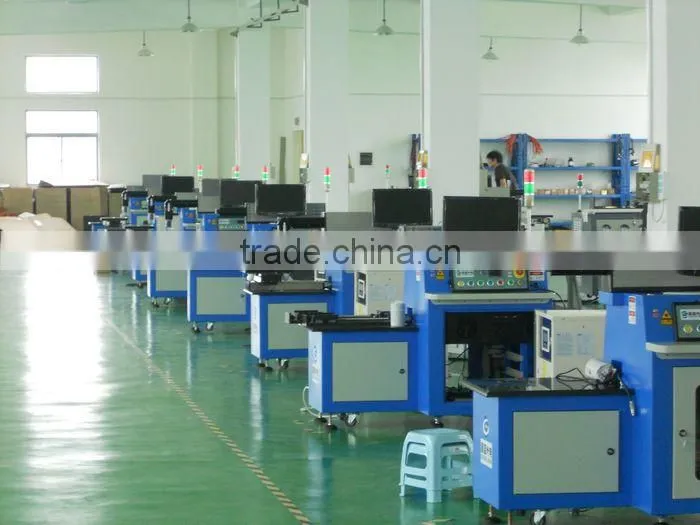

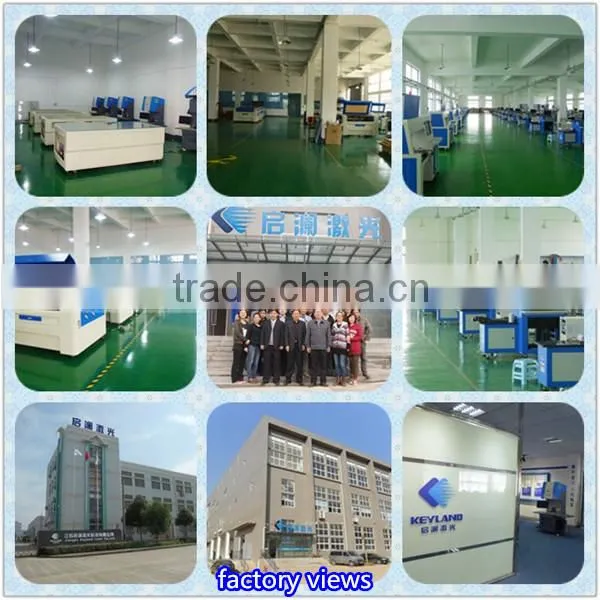

Company View
Why Buy From Us?
Doing business with KEYLAND is SAFE and BENEFICIAL.
- Alibaba Trade Assurance
- Onsite Checked by BV
- Golden Suppliers for Years
- CE, ISO, FDA approved products
- Warranty Up To 2 Years
- Full Operator Training & Support
How to Contact Us?
More details about our Solar Cell Laser Cutter please contact us.
