Machine for Sale! 500W Fiber Laser Cutting Machine for Sale
- 50 Set / Sets per Month
- Wuhan-Shanghai
- T/T
- high stability and easy maintenance green picosecond femtosecond laser new energy perovskite laser etching scribing machine
- Automatic Level laser machine AL 24
- LED Wafer High Precision UV Laser Scribing Machine Price
- LED Wafer High Precision UV Laser Scribing Machine Price
- 2013 LED Wafer High Precision UV Laser Scribing Machine For Sale
- High Precision LED Wafer UV Laser Scribing Machine For Sale
Product Details
Laser Type: | Fiber Laser | Applicable Material: | Metal | CNC or Not: | Yes |
Control Software: | CNC | Graphic Format Supported: | BMP, DWG, DXF | Cooling Mode: | Water Cooling |
Place of Origin: | Hubei, China | Brand Name: | TIANQI LASER | Model Number: | TQL-MFC500-3015 |
Certification: | CE, SGS | After-sales Service Provided: | Engineers available to service machinery overseas |
Product Description

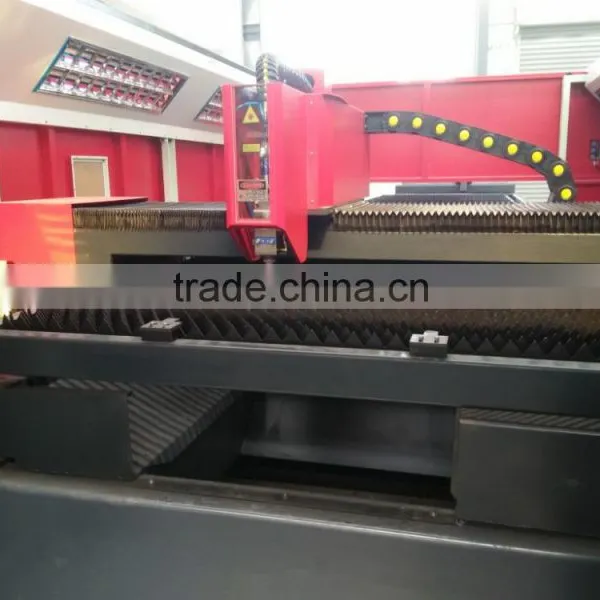

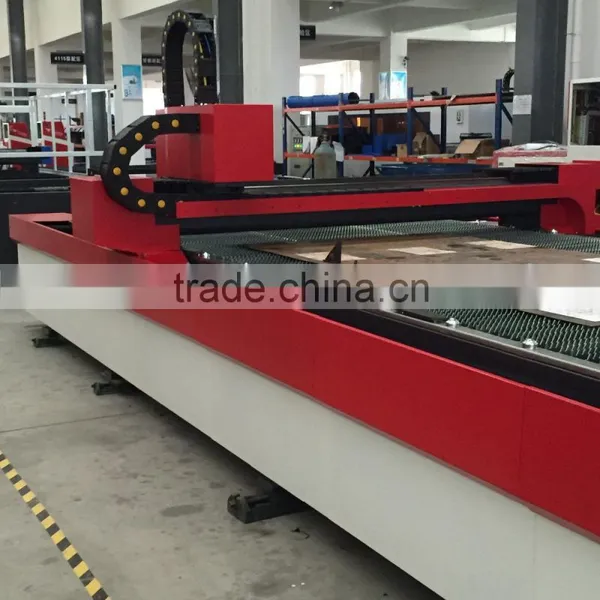

Machine for Sale! 500W Fiber Laser Cutting Machine for Sale
What is the details of our machine?

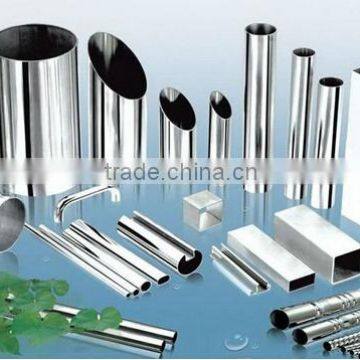

1. Cantilevel Mechanical construction, multi-function for cutting metal sheet and tube, convenient to change working table, it is not only able to cut round and square tube, but also can cut holes on the molding box.
2. Can cut lines and holes with different diameters from different directions.
3. Can cut inclined section at the end of the pipe.
4. Can cut branch pipe intersected with the main circular pipe.
5. Can cut squre hole, waist-shaped hole and circular hole on the pipe.
6. Can cut all kinds of graphics on the surface of the square pipe.
7. Can cut different size of metal sheets.
8. Can cut holes on the molding box.
Laser Head
500W IPG Laser Source Generates Laser Radiation λ=1070nm
Laser Source Lifetime 100,000 hours We provide 1 years warranty
Cutting Head Imported LASER MECH cutting head, good sealed, high pressure resistant, longer life time of lens. Auto tracking system, anti-crash and stop system protect good cutting quality. Cutting Head Protection alarm: a) Anti-Crash, stop running and alarm b) Detect out of material edge stop cutting and alarm c) Out of up and down limit stop and alarm.

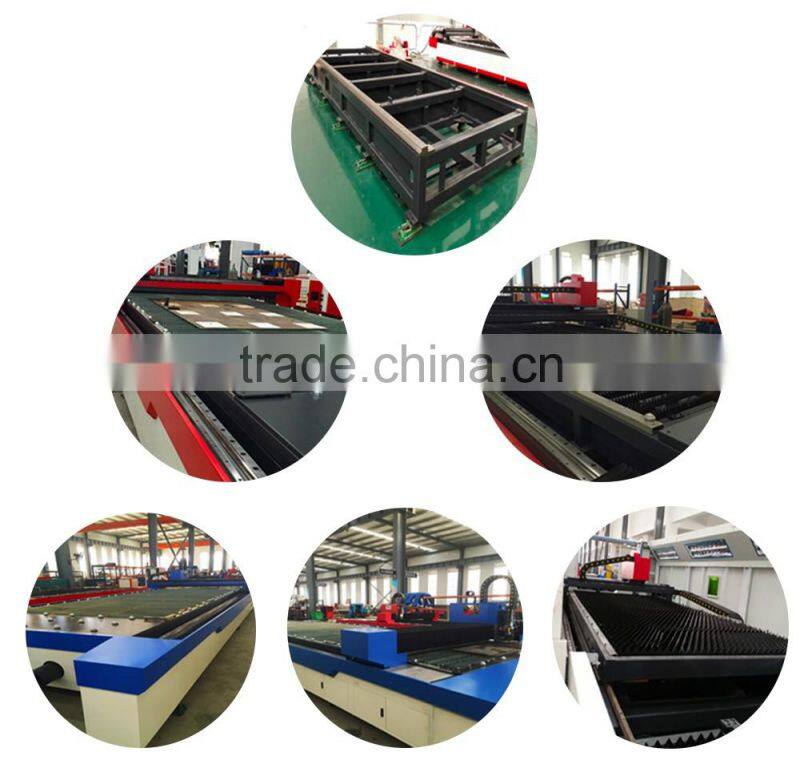

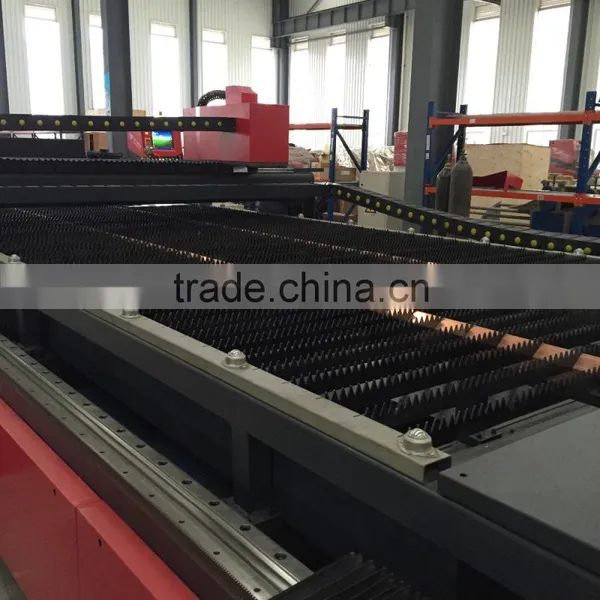

Stable working table
A.16mm thick steel side board strength weld
B. 1 ton more than YAG working table
C. Aging treatment, stress relief test
D. Installation require lay fundations
E. Use special Pipe cutting machine table, the precision is 0.01mm.
F. For 6M pipe cutting table weight 4 tons, and 4M pipe cutting table weight 3.5 tons. To insure fast running with less shaking and good cutting effect, long time running without change shape
Fixed height cutting, can automatically adjust the horizontal; Can automatically find the center point; Dual-side driven, synchronous compensation, can keep the machine long time fast running and high precision cutting; 4-Axis control, well sloved diffcult problems in technique, such as higher precision for machine motion control.
Pueumatic Chuck and Dust Removal Device
What is the strength of our products?
What is application of our products?
Why choose us?
Warranty and service
One year warranty for machine. English technical to door service.
English manual and Video CD for machine using and maintenance.We offer free training in our factory,
welcome to visit and learn more about our machines.
Free accessories :Software ,manual, book, cd videos, PCI control
1.Pre-sales service
A. Free sample making
For free sample making/testing, please send your samples or products CAD Graphics to our company in China. Try before you buy.
B. Progressing Solution Design
According to customer’s product processing requirement, we can design the unique solution that supports higher manufacturing efficiency and better processing quality for customer.
2.After-sales service:
Training to install(3options):
A. We will supply the machine with training video and user's manual in English for installing, operation, maintenance and trouble-shooting, and shall give technical guide by e-mail, fax, telephone/MSN/ICQ and so on, when you meet some problems of installation, using or adjusting.
B. You can come to our factory for training. Tianqi Laser will offer professional guide. Direct and effective face-to-face training. Here we have assembled equipments, all sorts of tools and testing facility,we will also provide accomadation during training period.Training Time: 10working days.
Engineers service machinery overseas
Delivery and transport
We can send machine to your port or door address by sea or airplane.
Please kindly tell us your near port or address with postcode.
We have reliable shipping agent to insure the safe,convenient and timely delivery.
Please let us know following informations:
1.What materials you want to cut ?
2.What is the mostly used thickness and what is the maximum thickness?
3. What is the MAX dimension of your materials ?
4. After cut, what will be the metal used for? (application)
5. Are you an end user or reseller?
According to your above information,we'll recommend the most suitable machine to you.
