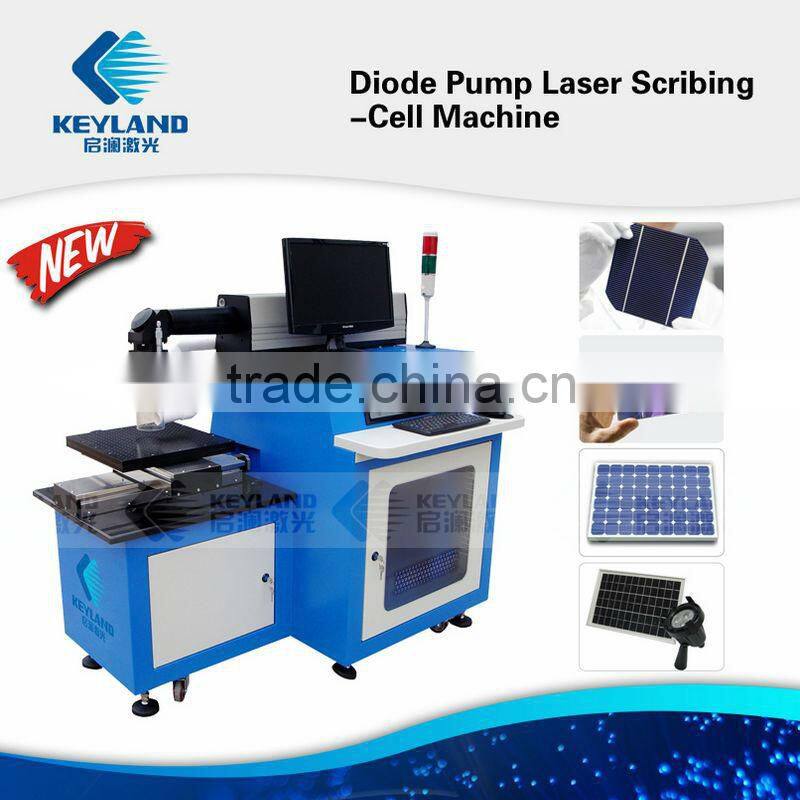

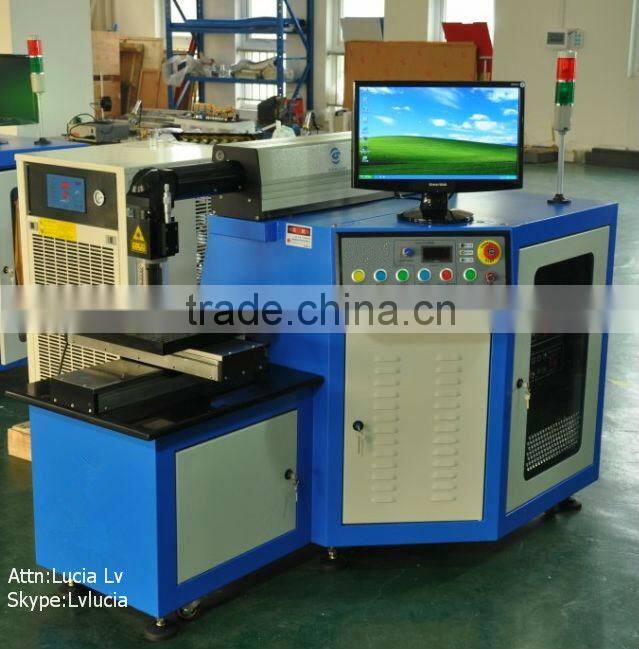

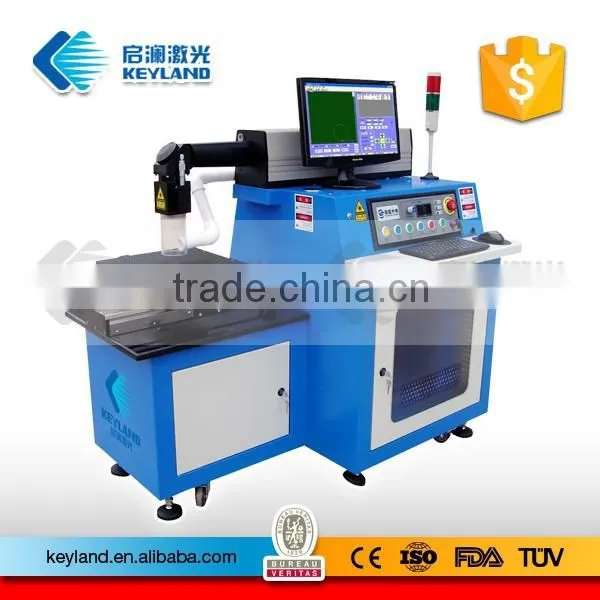

Keyland Diode Laser Scribing Machine for Solar Cells
Laser Power:50W
Laser modulation: Acousto-optic

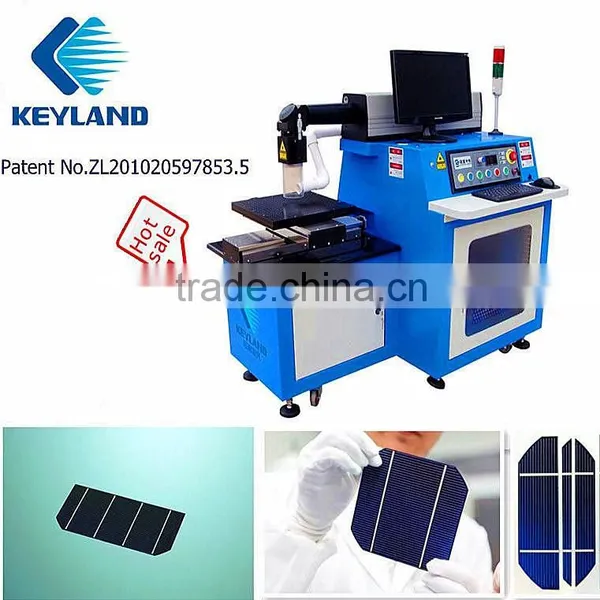

Laser Scribing Machine for Solar Cells for solar mono crystalline silicon,poly crystalline silicon solar cell,amorphous ribbon silicon and silicon wafers and etc.
Diode Solar Cell Laser Scribing Machine 's Working Principle :
Diode laser,Cooling by unified rotative homothermal water cooling system, Pulse Output of Continuous laser in Q-state ; Laser incidents from cell back , the whole piece or incomplete cell sorting divided into the size of need in special software control.
Some Spec. of : Photovoltaic Cell Laser Cutter
Type specification | Solar Silicon Wafer Cutting Machine GSC-50S/ GSC-10E |
Laser Power | 50W/10W |
Laser wavelength | 1064nm |
Scribing /cutting precision | ±10μm |
Scribing /cutting line width | 50μm |
Max scribing/cutting speed | 120mm/s |
Worktable size | 350×350mm |
Powe supply | 380V(110-220V)/ 50-60Hz/3kVA |
Analog Type | Analog Type |
Pulse rate | 200H-50kH |
Pulse Width | 3-5um |
Cooling way | Integration constant temperature circulation water cooling |
Worktable | Adsorption of double gas warehouse vacuum, the T model platform is double position works in turn |
Floor size | 2m*4m |
Power consumption | 5KW |
Pump life | 1500hours |

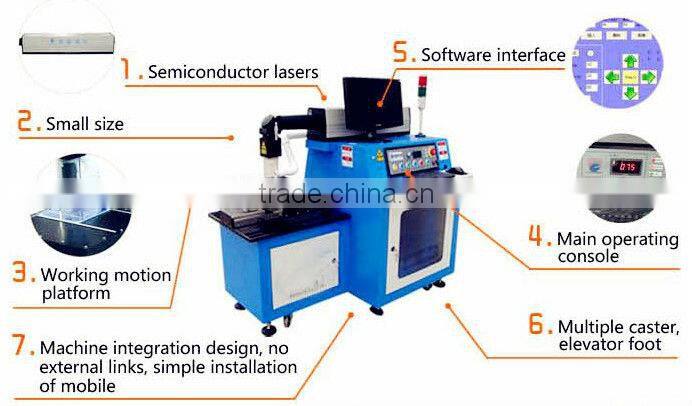

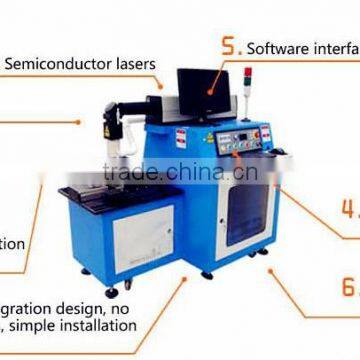

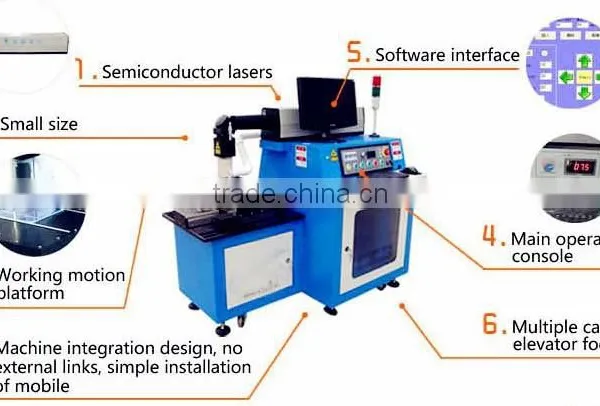

Equipment components of Diode Solar Cell Laser Scribing Machine :
1, Laser system
2, Power and electrical control system
3, Motion control systems
4, Thermostatic cooling system

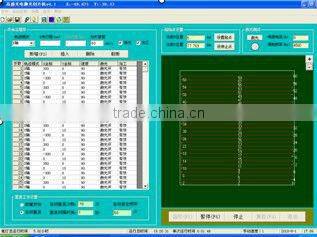

5, Software control system
6, Adsorption dust removal system
Diode Solar Cell Laser Scribing Machine 's Characters:
Imported Key parts
♥Automatic vacuum
1.Improved & new generation machine
2.Integration design,no exterior connect
3.Easy to install and move the machine
4.High precision and unified rotative homothermal water cooling system
5.Stable and continuous processing
6.Easy and convenient operation ,No to replace the Krypton lamp,maintenance-free.
7.Diode side-pump laser and high integration,better quality beam & high speed
8.Acousto-optic modulation

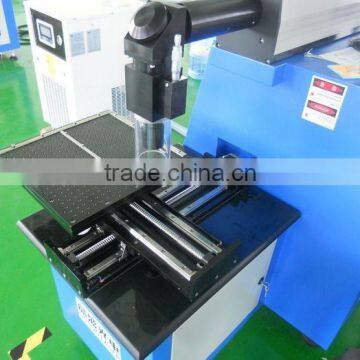

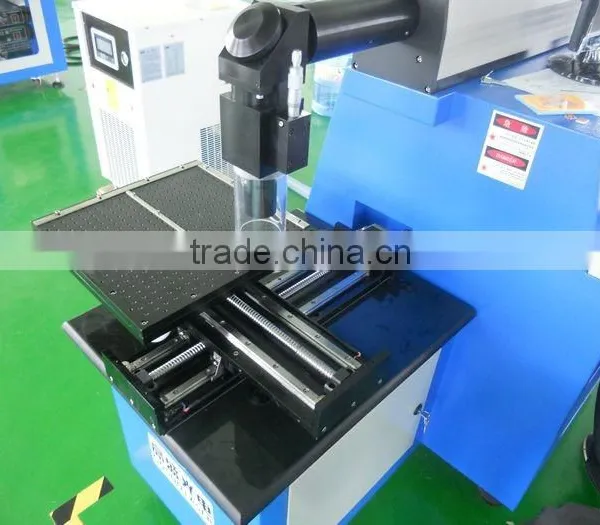

9.X-Y movable working table
10.Updated Software
Diode Solar Cell Laser Scribing Machine 's Application:
We have three types of Diode Solar Cell Laser Scribing Machine for option.
There is always a right for your needs

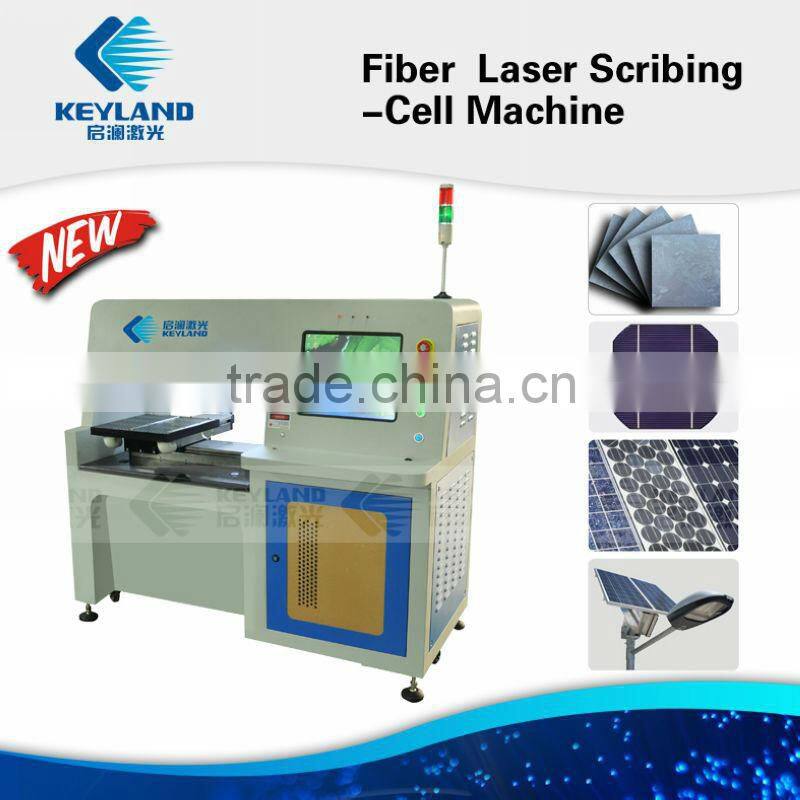

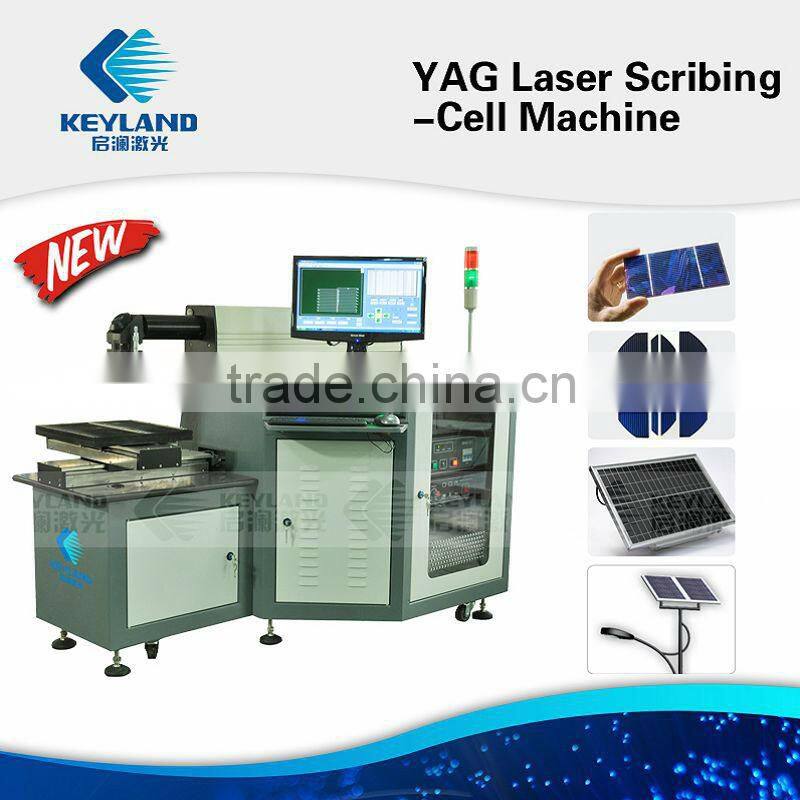

YAG Solar Cell Laser Scribing Machine | Diode Solar Cell Laser Scribing Machine | Fiber Solar Cell Laser Scribing Machine |
| | | |

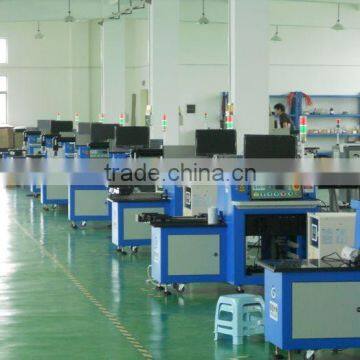

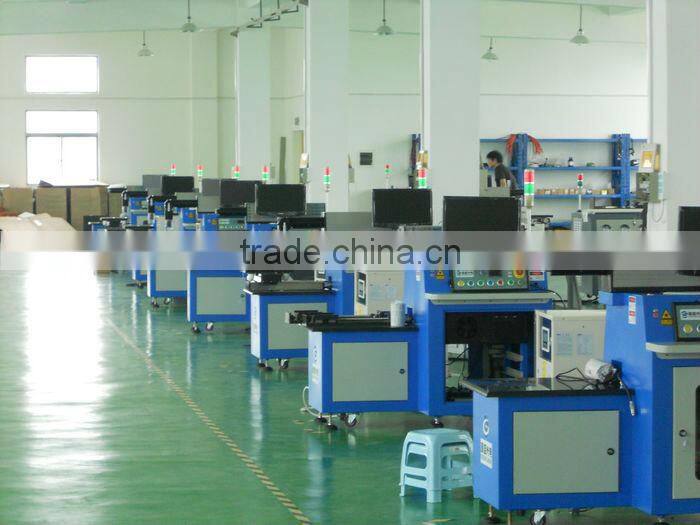

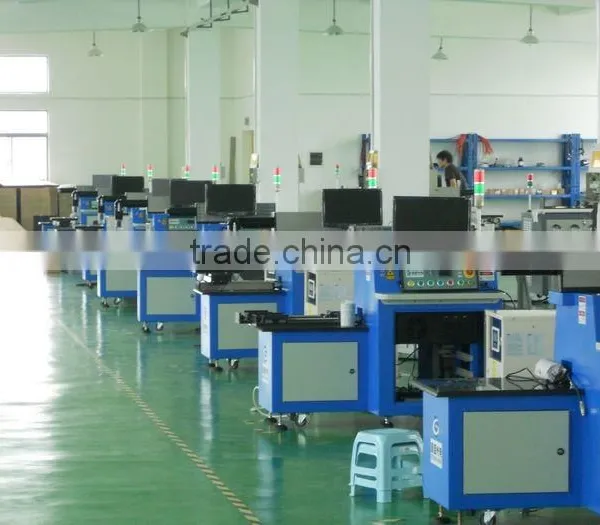

We Manufacture
Keyland Laser |
Tel: 027 8797 0569 ext 8126 Fax:027 8797 0568 |
Cell: 18672917139 |
Skype:lvlucia mail:lucia at keylandlaser dot com |
Solar Cell Laser Scribing Machine agent/dealer/distributor wanted Hope our competitive price, good quality,comprehensive service will help you expand market sucessful |
