PC Based Silicon Wafer Laser Cutting Machine
US$ 9,500 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Laser Type:
Semiconductor
Applicable Material:
Other, silicon wafer, solar cell
CNC or Not:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
1064 Nm/ 532 Nm/ 355 nm Thin Film Laser Scribing MachineUS$ 9,500 - 10,000MOQ: 1 Set -
30-60um A-Si C-Si Thin Film Laser Scribing MachineUS$ 9,500 - 10,000MOQ: 1 Set
-
Low Price Solar Cell Cutting Laser Cutter Scribing Machine CostUS$ 5,000 - 15,000MOQ: 1 Set
-
Keyland Solar Cell Fiber Laser Scribing Cutting MachineUS$ 5,000 - 15,000MOQ: 1 Set
-
Cheap Keyland 20w IPG Fiber Laser Scribing-Cell Machine Without MaintenanceUS$ 1,000 - 15,000MOQ: 1 Set
Laser Type
Semiconductor
Applicable Material
Other, silicon wafer, solar cell
CNC or Not
Yes
Control Software
KEYLAND
Graphic Format Supported
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Cooling Mode
Water Cooling
Place of Origin
Jiangsu, China
Brand Name
KEYLAND
Model Number
GSC
Certification
CCC, CE, GS, ISO, SGS, UL
After-sales Service Provided
Engineers available to service machinery overseas
PC based Silicon Wafer Laser Cutting Machine
Features
- Auto vacuum worktable.
- Lower cost compared to fiber laser.
- High precision motion system: Panasonic servo motor + screw rod.
- Powerful software easy to operate with cutting path preview.
- Foot-switch control
Specs
| Model | GSC-10F | GSC-20F |
| Laser source | Fiber | |
| Output power | 10W | 20W |
| Wave length | 1064nm | |
| Scribing line width | 30μm | |
| Max scribing speed | 300mm/s | |
| reposition accuracy | ±10um | |
| Laser pulse frequency | 20kHz-100kHz adjustable | |
| The laser pulse width | 25ns | |
| Work table | Auto vacuum 350x350mm / 14"x14" |
|
| Power supply | 220V, 50Hz, 1kVA | |
| Cooling way | Air cooling | |
Machine Photos

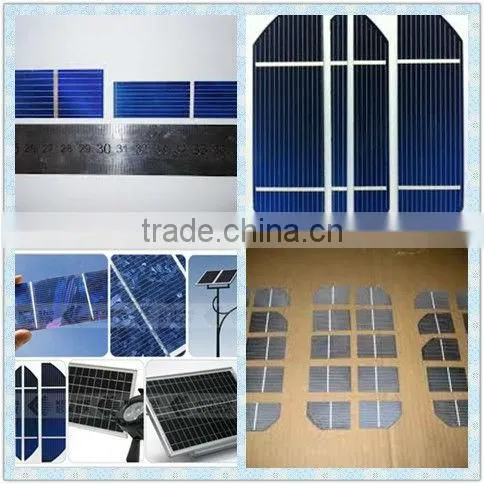

Work sample
DEMO VIDEOS
(copy the link to a new tab to watch)
| Solar cell scribing | http://youtu.be/j8coMUMP5Qs |
