30-60um A-Si C-Si Thin Film Laser Scribing Machine
US$ 9,500 - 10,000
MOQ: 1 Set
Key Specifications
Get Latest Price
Laser Type:
Diode
Applicable Material:
Other, Thin film
CNC or Not:
Yes
Payment & Shipping
Payment Methods:
Port of Shipment:
Shanghai
Delivery Detail:
Delivery time depends on order quantity.
Related Products
-
Low Price Solar Cell Cutting Laser Cutter Scribing Machine CostUS$ 5,000 - 15,000MOQ: 1 Set -
Keyland Solar Cell Fiber Laser Scribing Cutting MachineUS$ 5,000 - 15,000MOQ: 1 Set
-
Cheap Keyland 20w IPG Fiber Laser Scribing-Cell Machine Without MaintenanceUS$ 1,000 - 15,000MOQ: 1 Set
-
IPG Fiber PV Solar Cell Laser Cutting Machine For SaleUS$ 15,000 - 30,000MOQ: 1 Unit
-
Keyland Laser Cut Silicon Solar CellsUS$ 5,000 - 15,000MOQ: 1 Set
Laser Type
Diode
Applicable Material
Other, Thin film
CNC or Not
Yes
Control Software
KEYLAND
Graphic Format Supported
AI, BMP, DST, DWG, DXF, DXP, LAS, PLT
Cooling Mode
Water Cooling
Place of Origin
Jiangsu, China
Brand Name
KEYLAND
Model Number
GSF
Certification
CCC, CE, GS, ISO, SGS, UL
After-sales Service Provided
Engineers available to service machinery overseas
30-60um a-Si c-Si Thin Film Laser Scribing Machine
Applications

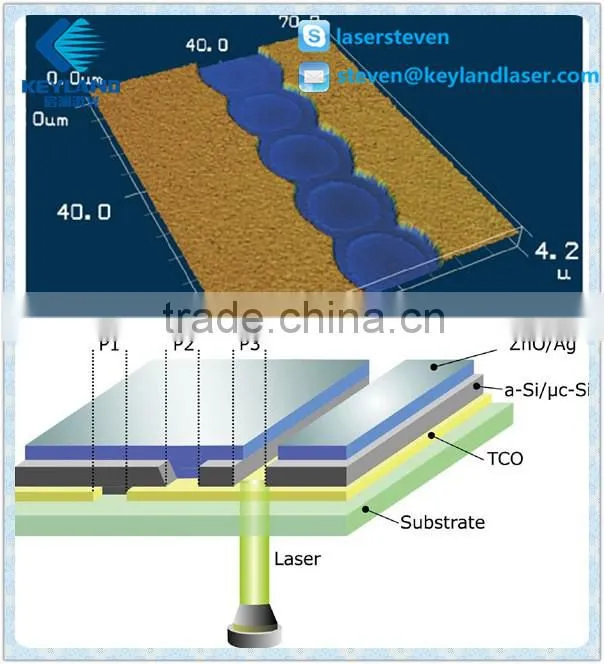

Scribing and cutting thin film cells like: A-Si( Amorphous Silicon ) solar cells NESA(FTO, AZO, BZO), electrode film(ZnO,Al).
Features

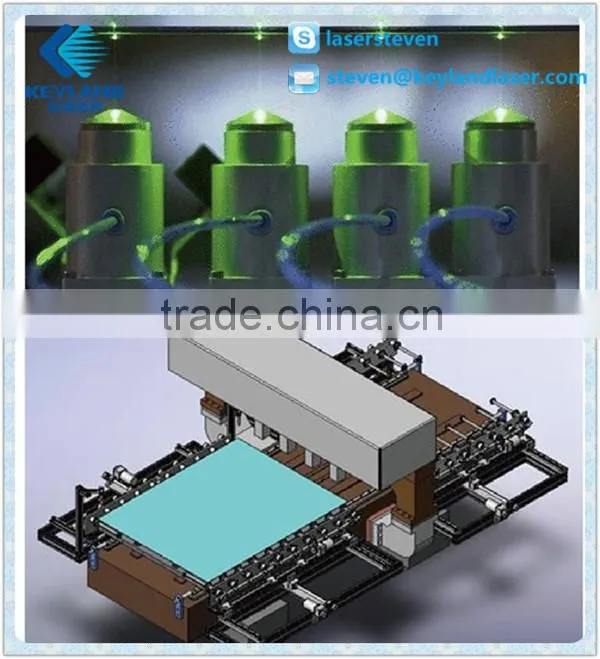

- Diode end pump laser with four optical output.
- Two-axis synchronous motor
- Electrostatic dust collection
- High speed air floating worktable
- Automatic loading/unloading materials
- Automatic tracking and positioning
- Automatic temperature compensation
Specs
| Model | GSF-P1 | GSF-P2 | GSF-P3 |
| Laser wavelength | 1064nm/355nm | 532nm | 532nm |
| Working area | 1.1x1.4m/635x1245mm | ||
| Max working speed | 2000mm/s | ||
| Avg working speed | 800-1500mm/s | ||
| Repeatability | 0.01mm | ||
| Straightness accuracy | 0.01mm/1000mm | ||
| Min scribing kerf | 0.03-0.06mm | ||
| Three line width | 0.25-0.35mm | ||

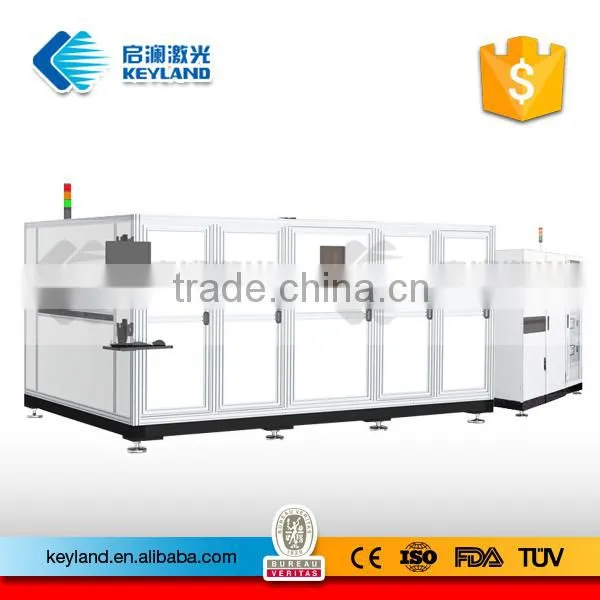

Machine Photos
Sample
Company View
Why Buy From Us?
Doing business with KEYLAND is SAFE and BENEFICIAL.
- Alibaba Trade Assurance
- Onsite Checked by BV
- Golden Suppliers for Years
- CE, ISO, FDA approved products
- Warranty Up To 2 Years
- Full Operator Training & Support
