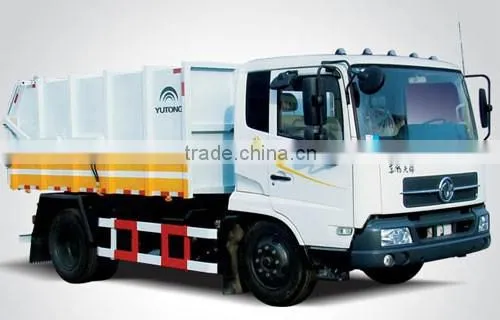

YTZ5252ZXX40F Detachable Container Refuse Collector - Performance Features
The sub-frame is made of high-strength steel plate rolled into Z-shaped steel, which has adequate strength and can integrate with the automobile frame, so as to maintain a certain degree of natural deflection, enabling better comfort of the complete truck.
In order to ensure the welding quality and reliability of the steel members, the welding process is strictly controlled and in compliance with the ISO3834 international welding special certification.
The telescopic distance is up to 1100mm, which is not only able to deal with the long container, but also can cope with a shorter length of container. In the meanwhile, it is able to reduce the operating height.
The front-end of the hooklift pedestal is designed with the reinforced front cross member, maximizing the consideration on the damage caused by the possible preshoot of the hook arm and container in the event of unforeseen circumstances. The telescopic distance is up to 1100mm, which is not only able to deal with the long container, but also can cope with a shorter length of container. In the meanwhile, it is able to reduce the operating height.
YTZ5252ZXX40F Detachable Container Refuse Collector - Main Technical Parameters
Vehicle model |
YTZ5252ZXX40F |
Chassis model |
ZZ3257N4347D1 |
Tail gas emission standards |
State IV |
Engine model |
D10.34-40 |
Engine Power |
249kW |
Max. gross mass |
25000kg |
Loading mass |
12200kg |
Dimensions |
8230×2500×3125 |
Wheel Tread |
4325+1350(mm) |
Tyre model |
12.00-20 |
Model of pull arm superstructure |
LBH2055 |
Height of hook center |
1570mm |
Rated hoisting capacity |
20T |
Packing time |
<60s |
Discharging time |
<60s |
Lifting time (discharge) |
<60s |
Discharging time |
<60s |
Maximum lifting angle |
48° |
Anti-squat unit |
Rear roller supporting device |
Rear door opening power |
Hydraulic opening |
