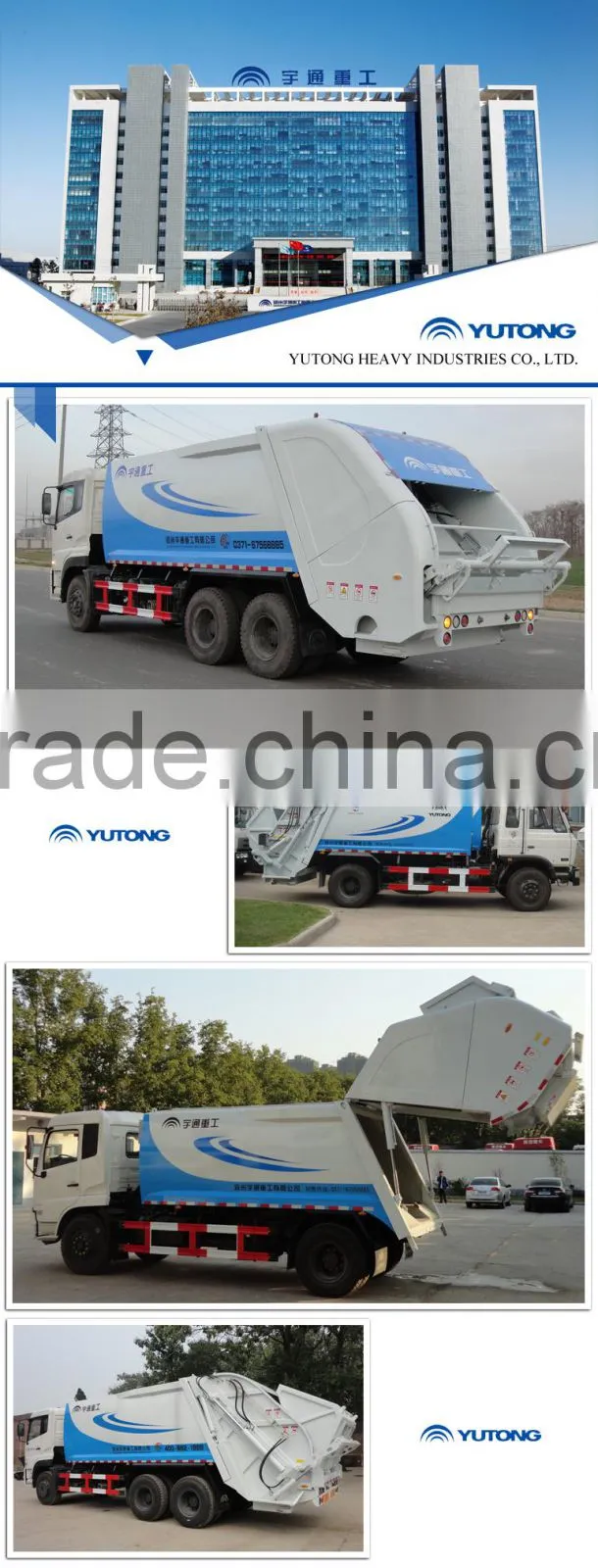

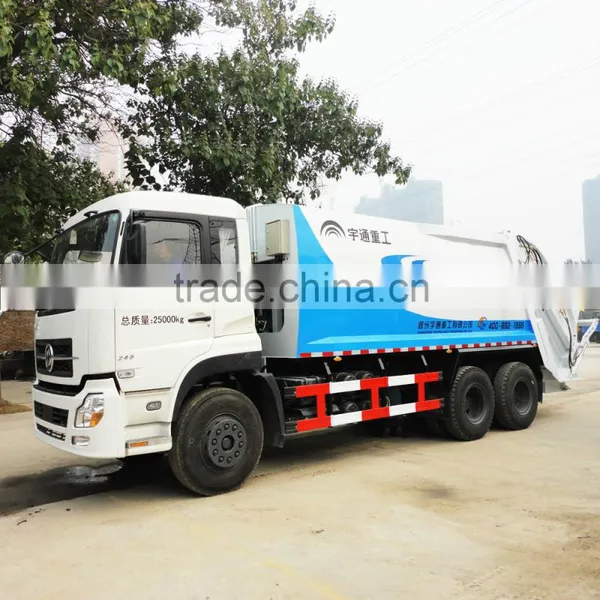

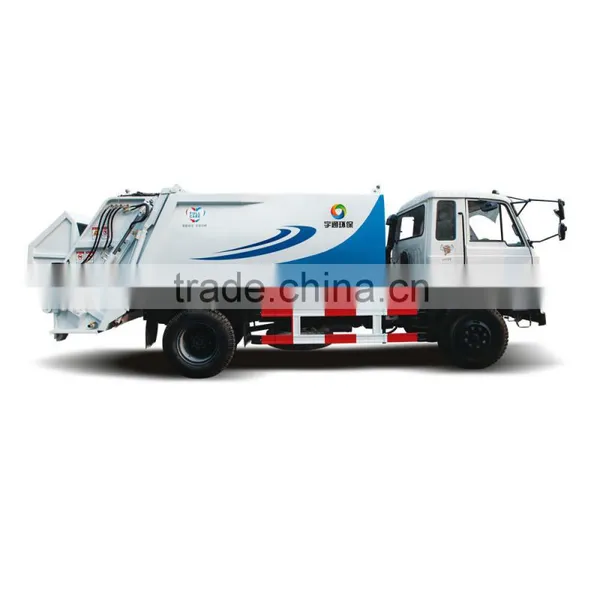

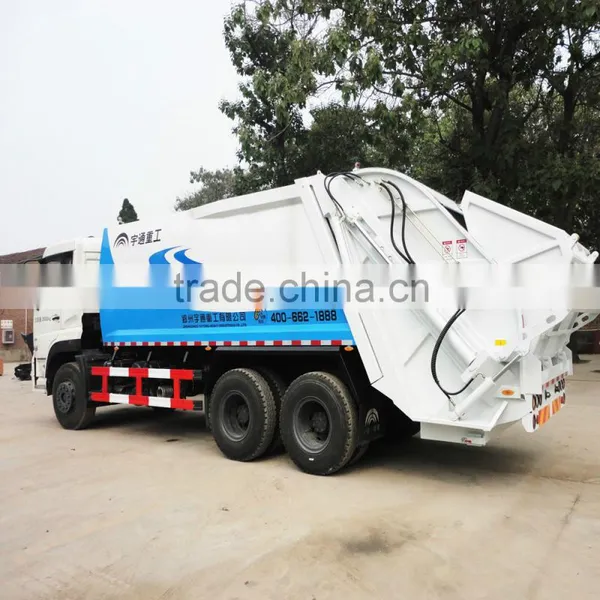

YUTONG Garbage compactor truck
The chassis of garbage compactor truck adopts the domestic well-known Dongfeng forward control Type-B automobile chassis with high market share rate, in compliance with the National Ⅲ Emission Standard.
Performance characteristics of Garbage compactor truck
a. Powerful power and high reliability:
b. Superior performance and reliable quality:
c. High tightness, elimination of pollution:
d. Automatic control, easy operation:
- Major technical parameters of YTZ5250ZYS20E/F
Product model |
YTZ5250ZYS20E |
YTZ5250ZYS20F |
Chassis model |
DFL1250A8 |
DFL1250A11 |
Chassis manufacturer |
Dongfeng Automobile Co., Ltd. |
Dongfeng Automobile Co., Ltd. |
Overall dimension of complete vehicle (mm) |
9740(9990,10160)X2480X3250 |
9770(9990,10160)X2500X3330 |
Wheelbase (mm) |
4350+1300 |
4350+1300 |
Wheel track of front wheel (mm) |
1986 |
1986 |
Wheel track of middle and rear wheels (mm) |
1860, 1860 |
1860, 1860 |
Kerb mass (kg) |
14410,14530,14650 |
14410,14530,14650 |
Rated load (Kg) |
10460,10340,10220,10395,10275,10155 |
10460,10340,10220,10395,10275,10155 |
Gross mass (kg) |
25000 |
25000 |
Maximum vehicle speed (km/h) |
90 |
90 |
Maximum gradeability (%) |
20 |
20 |
Maximum turning diameter (m) |
22 |
22 |
Minimum ground clearance (mm) |
250 |
250 |
Approach angle (°) |
20 |
20 |
Departure angle (°) |
13 |
11 |
Dustbin volume (m3) |
20 |
20 |
Volume of precompressor (m3) |
2.0 |
2.0 |
Compression cycle time (s) |
30 |
30 |
Garbage dumping time (s) |
60 |
60 |
Compression density (t/m3) |
0.6-0.8 |
0.6-0.8 |
3. Main configurations of YTZ5250ZYS20E/F
Product model |
YTZ5250ZYS20E |
YTZ5250ZYS20F |
Chassis model |
DFL1250A8 |
DFL1250A11 |
Chassis manufacturer |
Dongfeng Automobile Co., Ltd. |
Dongfeng Automobile Co., Ltd. |
Engine model |
ISDe245 30 |
ISDe245 40 |
Rated power of engine |
180 kW |
180 kW |
Model of gearbox |
8JS118T-B |
8JS118T-B |
Tyre |
11.00R20 Steel wire tire |
11.00R20 18PR Steel wire tire |
Optional Configuration |
Bucket hanging type turnover feeding mechanism |
Bucket hanging type turnover feeding mechanism |
As a specialized supplier of construction machinery of PLA Construction Engineering Corps, Yutong Heavy Industries has made outstanding contributions to the national defense construction, supplied thousands of various equipment like high-speed bulldozers and loaders for this Corps, and been highly appraised by the army due to the high quality of its products in the past 60 years.
Yutong has formulated various operation instructions such as “products inspect and control procedures” “Receiving inspection control procedures” “sampling inspection operation instruction” “process quality inspection operation instruction”, etc.
We provide pre-sale service and free consultation service. The quality control service includes pre-acceptance, departure inspection, arrival inspection, PDI delivery inspection.
1. Guarantee period is subjected to warranty instruction (one year or 2000 hours whichever comes first).
2. Free after-sale service during the warranty refers to problems caused by quality issues; if any non-quality problem occurred, we will charge the maintenance fee according to relevant standard.
3. We provide customized service according to customers’ requirements including technically improvement and so on.
welcome to contact us any question you have !
