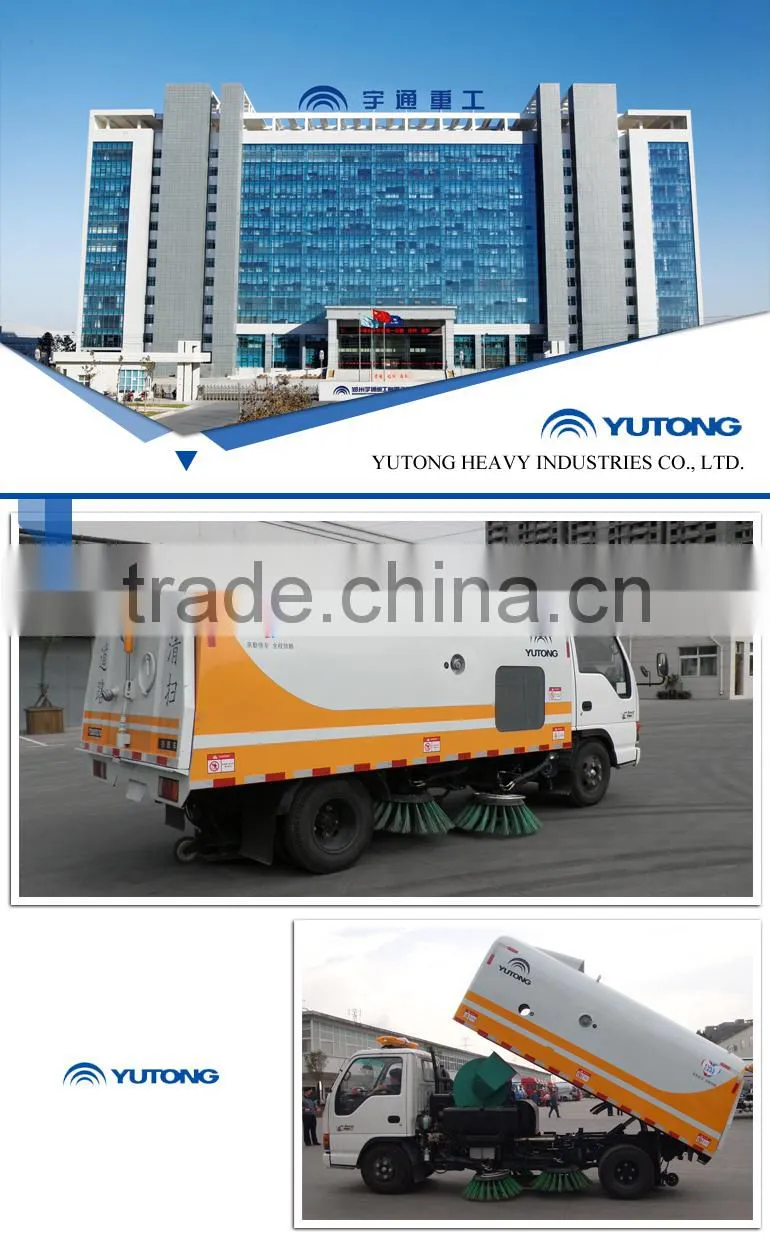

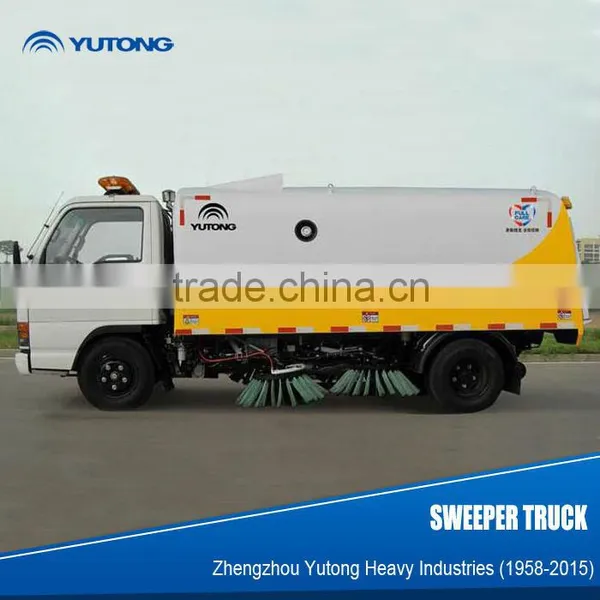

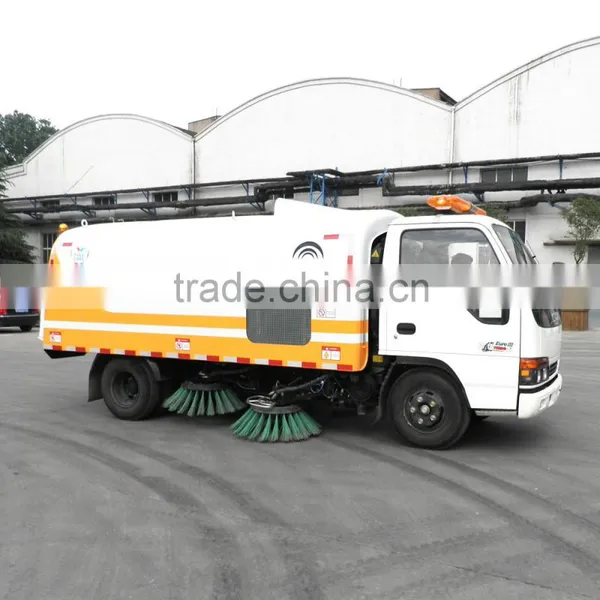

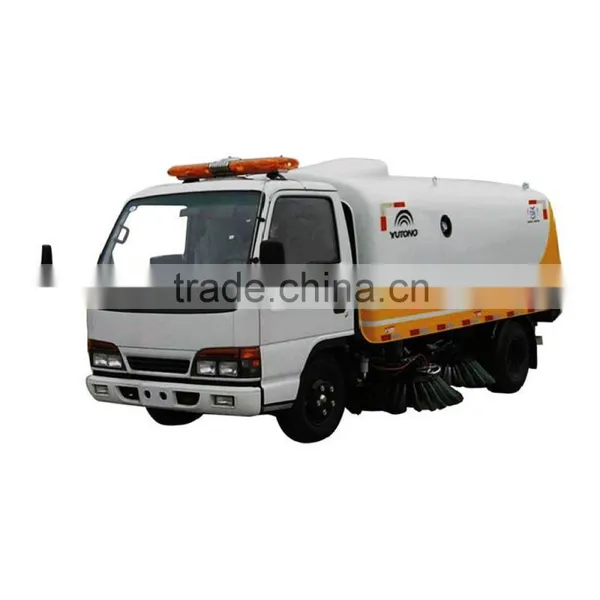

Road Sweeper Truck
As an environmental sanitation equipment, the road sweeper integrates road sweeping, garbage collection and garbage transportation into one machine, which is widely used for sweeping arterial highway, airfield pavement, uptown and park, etc.
Item |
Parameter |
|
1. Dimension parameters | ||
Overall dimension (L × W × H) |
5650×2000×2350mm |
|
Front suspension |
1015 mm |
|
Rear suspension |
1275 mm |
|
Angle of approach |
24° |
|
Angle of departure |
25° |
|
Minimum ground clearance |
190 mm |
|
Volume of garbage compartment |
5 m3 |
|
Volume of water tank |
1100 L |
|
2. Mass parameters | ||
Kerb mass (kg) |
4420kg |
|
Mass of front axle (no load) |
1800kg |
|
Mass of rear axle (no load) |
2620kg |
|
Mass of front axle (full load) |
1920kg |
|
Mass of rear axle (full load) |
3380kg |
|
Max. gross mass |
5300 kg (Including two people) |
|
3. Performance Parameters | ||
Sweeping width |
2.5-3.2m |
|
Operating speed |
3-15 km/h |
|
Maximum vehicle speed |
98 km/h |
|
Tipping angle for garbage |
60° |
|
Maximum cleaning efficiency |
96% |
|
Operating fuel-consumption (8Km/h) |
6.8L/h |
|
Driving fuel-consumption |
10.6L/100 km |
|
Main Configurations of YTZ5050TSL70E Sweeper Truck
Chassis model |
QL10508HARY (Qingling Brand) |
Model of chassis-mounted engine |
4JB1–TC1 |
Maximum power |
70kW /3400 rpm |
Max. torque |
206N.m/1700rpm |
Model |
In-line, four-stroke, water cooling, electronic controlled VE pump, turbocharged |
Model of auxiliary engine |
JE493G3-201 |
Maximum power |
57kW /3600 rpm |
Performance Characteristics of TZ5050TSL70E Sweeper Truck
a. It adopts a technological structure: four sweeping brushes are mounted on left and right sides and a wide suction nozzle is mounted in the middle. Sweeping brushes are equipped with automatic avoidance device. The truck is featured by centralized operating devices, constant space between suction nozzle and ground, etc;
b. Both of water tank and dustbin are made of 304 stainless steel materials. The water tank, with double stainless steel structure, is firm and durable and has strong corrosion resistance!
c. A low water level sensing alarm system is equipped within the water tank. It will automatically give an alarm when there is no water in the tank, so as to prevent the water pump from being damaged due to water shortage;
d. The truck selects and uses "imported hydraulic block". The hydraulic system is further optimized. As for the heat dissipation of hydraulic oil, water cooling system is equipped, which can fully guarantee the normal operation of the truck in the hot summer;
e. The truck uses Qingling chassis; the cab is equipped with air conditioner; turbocharged and inter-cooled engine; low fuel consumption, powerful power, good handling, comfortable and luxurious; the cab is wide and bright and has wide field of view!
f. Centralized electrical control box is used to control the truck and it can be controlled by one key in the cab, with high level of automation; a voice alarm device is equipped to accurately broadcast a variety of safety tips and failures; meanwhile, through working camera, optional GPS satellite positioning, reversing radar and other devices, operator can conduct real-time monitoring on the truck!
As a specialized supplier of construction machinery of PLA Construction Engineering Corps, Yutong Heavy Industries has made outstanding contributions to the national defense construction, supplied thousands of various equipment like high-speed bulldozers and loaders for this Corps, and been highly appraised by the army due to the high quality of its products in the past 60 years.
Welcome to consult us any question you have !
- We supply the package of service to minning works. such as drilling, stone crushing, granule delivery, etc.
- We supply the package of service to sanitation works, such as road cleaning, city garbage compactor, delivery, etc.
- We supply the technique support to these customer for better usage of our products.
- 24 hours response principle, let us to help you faster and better.
- Some products can be found below, (Click the name or the picture for quick browsing)
| Catalogue | Products Description | |
|

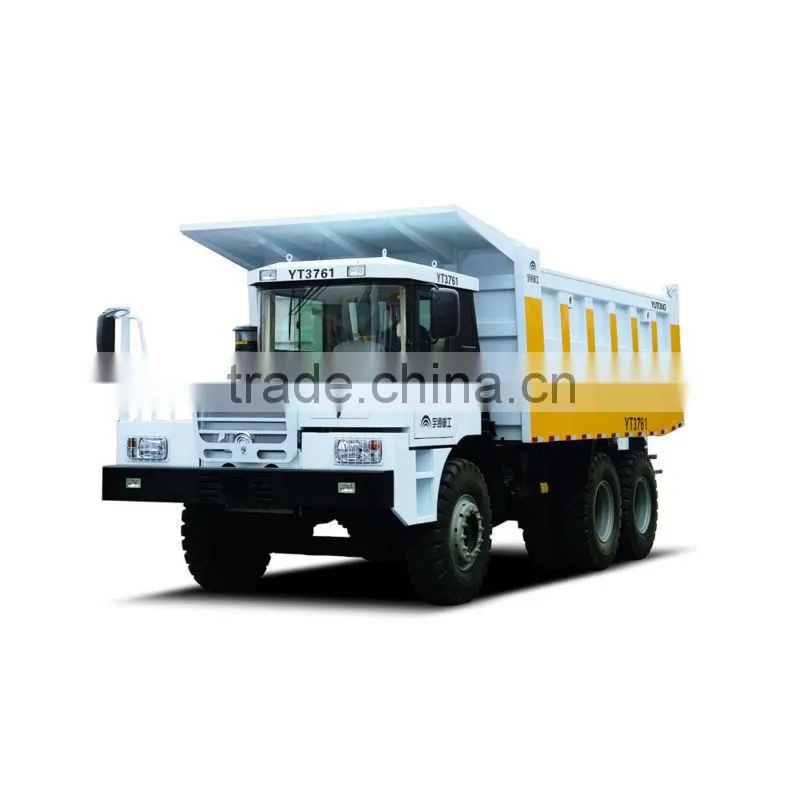

Dump truck | Loadage can be 40t -100t |
|

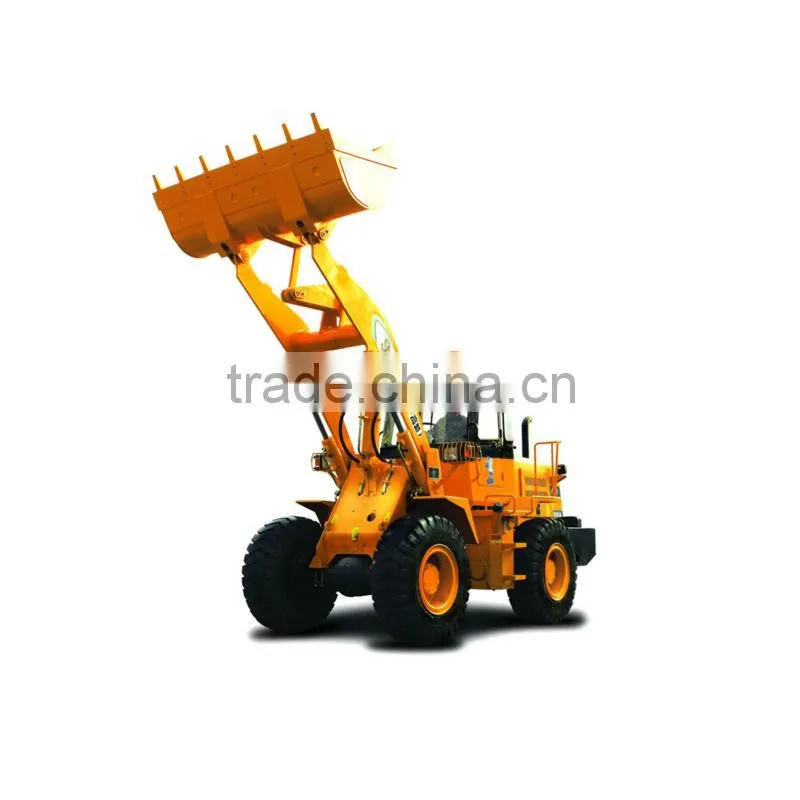

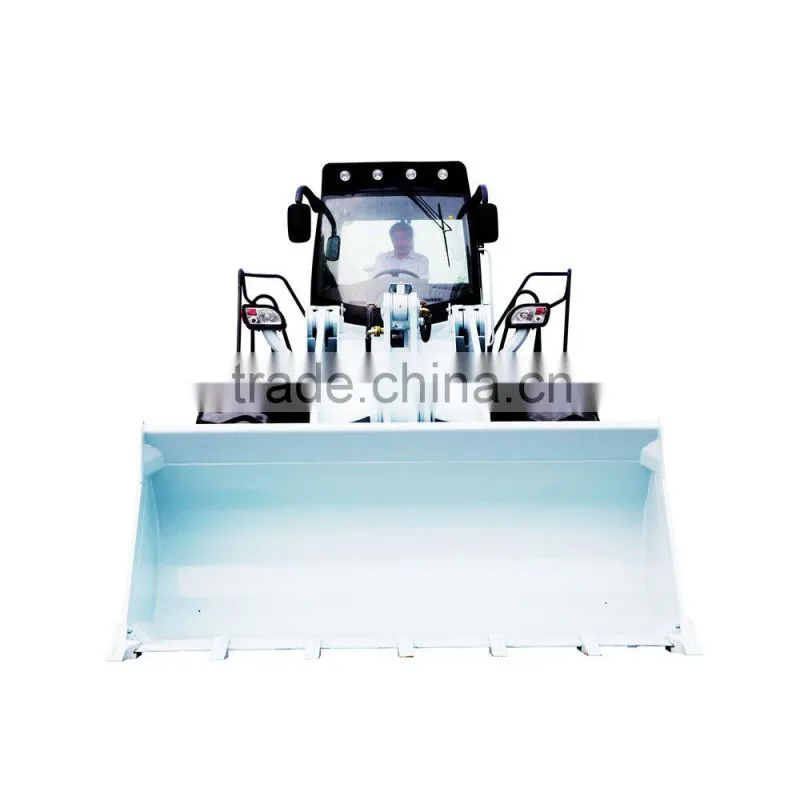

Wheel loader | Loadage can be 3t - 8 t |
|
Bulldozer | 3 m3 capcity and other capcity |
|

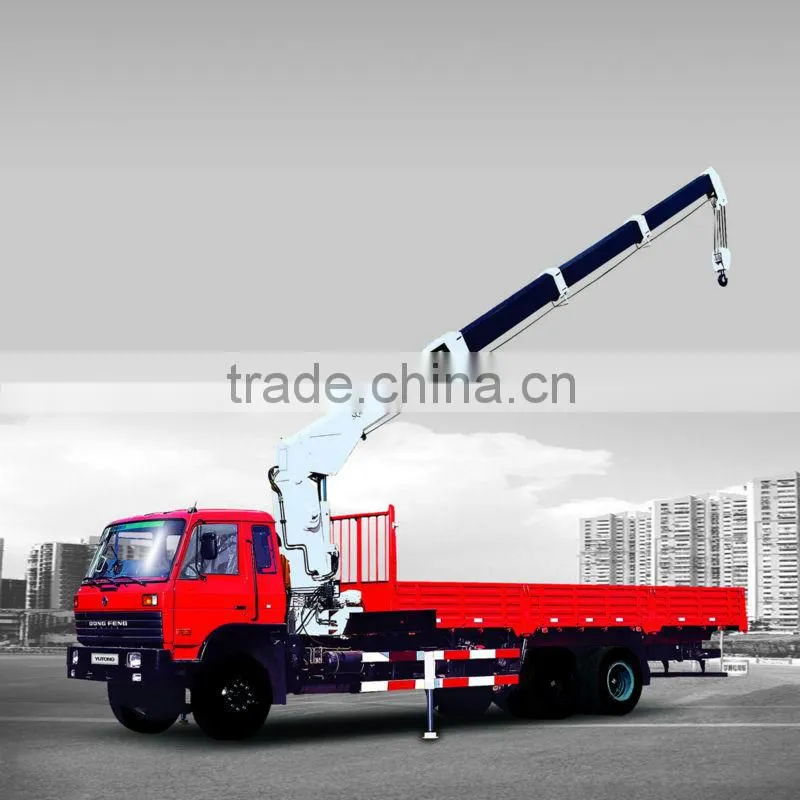

Truck mounted crane | 5t - 50 t |
|

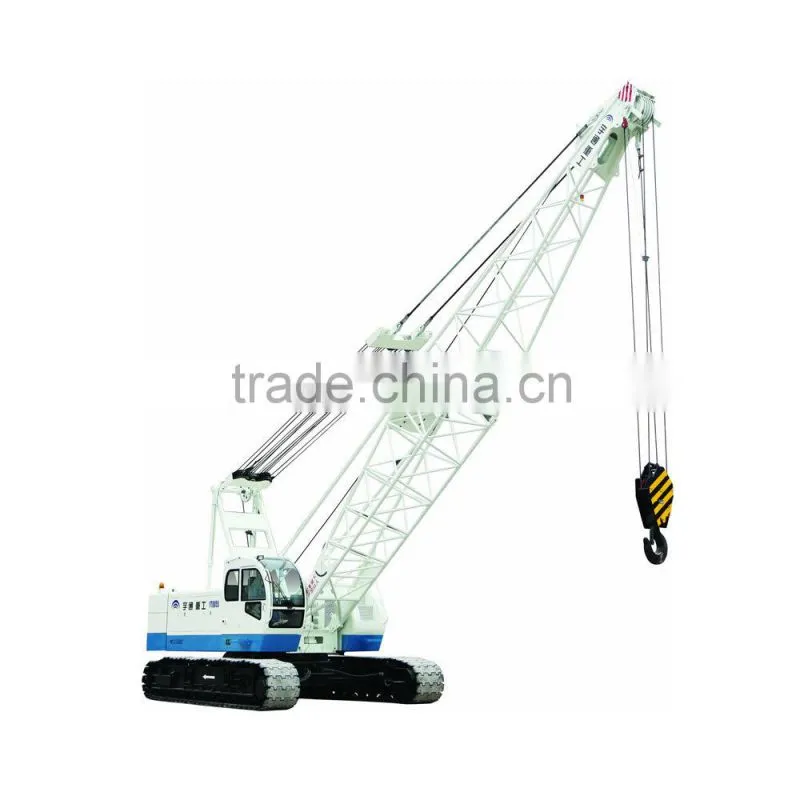

Crawler crane | 50t - 360 t |
|

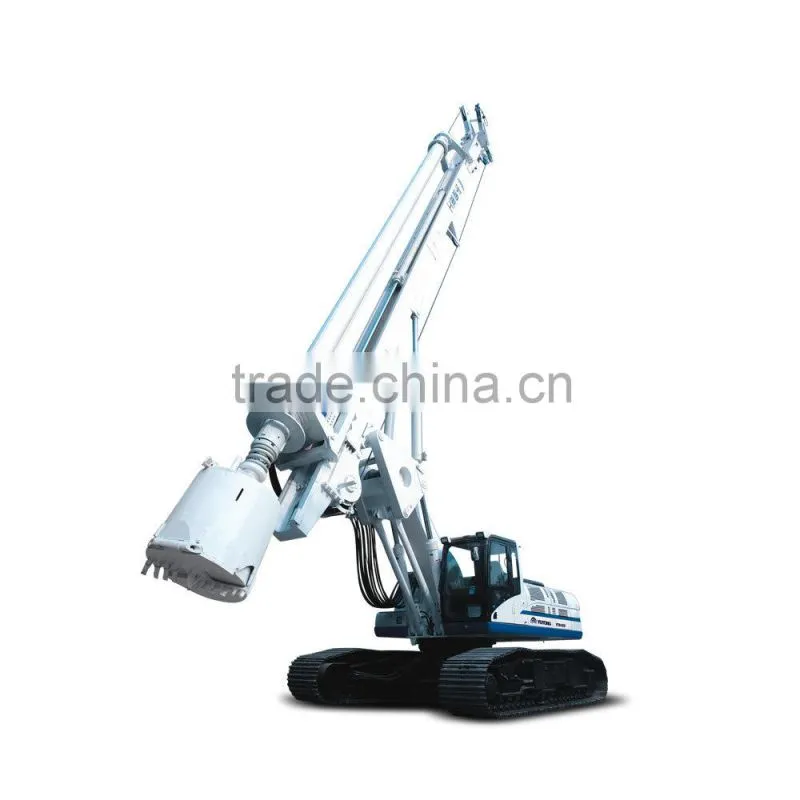

Drilling rigs | Rotary Drilling Rigs; Auger Rigs; Anchor rigs |
|

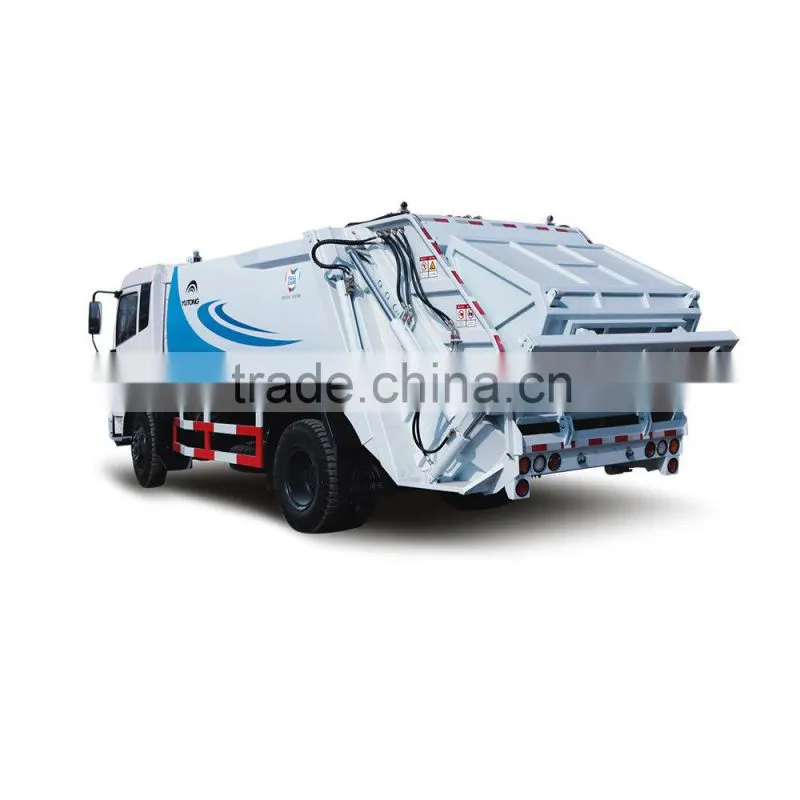

Sanitation equipment | Sweeper; garbage compressing machine; sewage suction truck; Sprinkler Vehicle etc. |
|

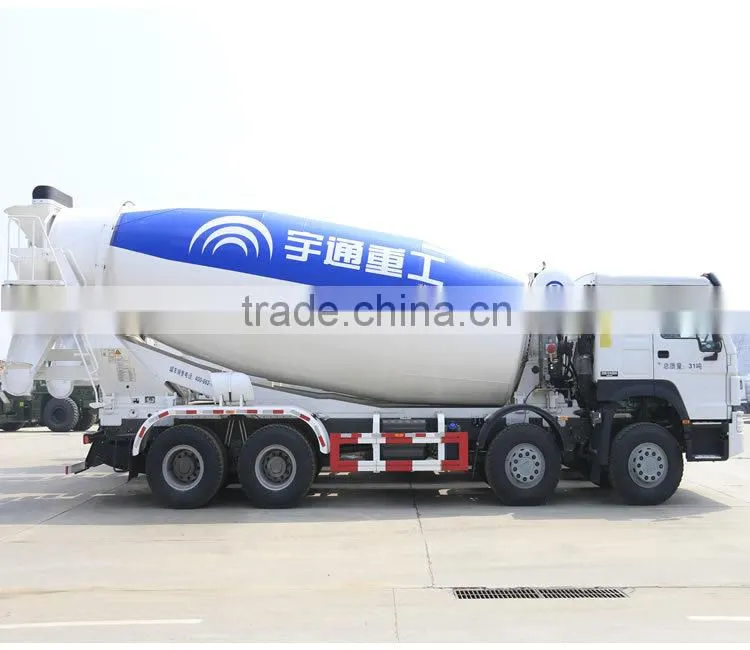

Concrete Mixer Truck | 8 m3 - 10 m3 |
You can contact with me for more information and serive.
There is no packing to the main machine, small parts and wear parts will be packed in box . |
We usually use roll-on-roll-off ship because the volume is too big to be put into a container. |
|
|
|
