YUTONG Max Drilling Depth 200mChinese Drilling Rig For Sale
- Qingdao Port Tianjin port Lianyungang port Shanghai port
- T/T D/P D/A
You May Like
Product Details
| Condition | New | Type | Other, Soilmec Drilling Rig | |
| Power Type | Diesel | Place of Origin | Henan, China | |
| Brand Name | YUTONG | Model Number | YTA820A | |
| Usage | Other, fixed | Voltage | 24V | |
| Power(W) | 155kW(2300rpm) | Dimension(L*W*H) | 7430x2350x2800(mm) | |
| Certification | ISO | Warranty | 12 mouths /2000 hours | |
| After-sales Service Provided | Engineers available to service machinery overseas |
Product Description

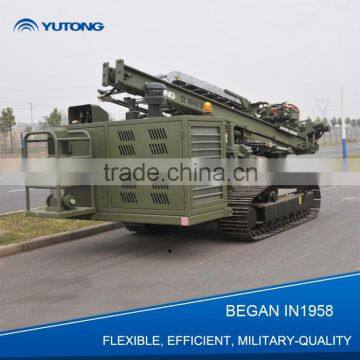

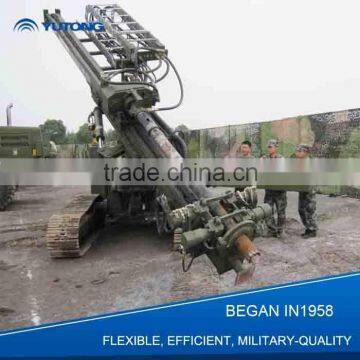

YUTONG Max Drilling depth 200m Chinese Drilling Rig For Sale
Overall dimension of complete vehicle (mm) | 7430×2350×2800 |
Travelling speed of Chinese drilling rig | 2.5 km/h |
Gradeability of Chinese drilling rig | 30° |
Maximum traction of Chinese drilling rig | 132kN |
Engine power of Chinese drilling rig | 155kW(2300rpm) |
Flow of hydraulic system | 240L/min+240L/min+32L/min |
Pressure of hydraulic system | 250bar |
Push force/Pull force of Chinese drilling rig | 100/100 kN |
Drilling speed of Chinese drilling rig | 60/40,10/6 m/min |
Drilling stroke of Chinesedrilling rig | 4020mm |
Maximum rotation speed | 102/51 r/min |
Maximum rotation torque | 6800/13600 Nm |
Impact frequency of Chinese drilling rig | 2400/1900/1200 Min-1 |
Impact energy of Chinese drilling rig | 420/535/835 Nm |
Drill hole diameter of Chinese drilling rig | ≤φ400 mm (Standard state: φ90-φ180 mm) |
Drilling depth of Chinese drilling rig | ≤200m (According to geological conditions and operating methods) |
:

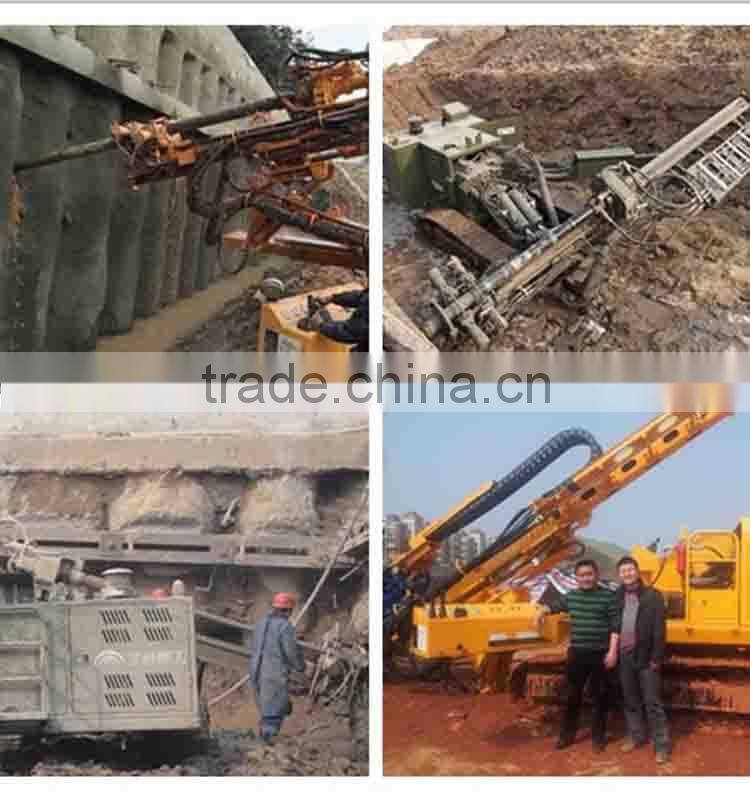

1.YTA series Chinese drilling rig is applicable to the construction of rock bolt, anchor rope, geological drilling, grouting reinforcement and underground micro pile in different types of geological conditions such as soil, clay, gravel, rock-soil and water-bearing stratum.
2.The Chinese drilling rig can realize double-deck rotary drilling or percussive-rotary drilling and auger drilling (through screw rod). By matching with air compressor and down-hole hammer.;
4.The main control system of YTA series Chinese drilling rig adopts reliable proportional technology, but also can realize high and low speed switching quickly. The operation is more simple, easy, and reliable.
service. We will offer the “12380”service:
1: After receiving the customer mobile, we will help
customer solve problem through removing the
resources of YUTONG service and reply the customer
clearly in one hours;
2: To improve the service quality all the time, in 2
working days of the end of on-sit service, we will pay
a return visit about the satisfaction of after sale
service;
professionally maintenance and repair for the
customer product, we will have 3 times On-Site
Inspection forwardly in warranty period;
8:The service engineer will solve problem in 8 hours
after getting to on-sit. If the problem is not solve ,the
service engineer can not leave the on-sit;
0: To eliminate customer worries, from receiving
order to product scrapping, YUTONG will provide
full reliance,seamless docking and service in the
period of product using.
