YUTONG YTR230D Construction Rotary Drilling Rig

YUTONG YTR230D Construction Rotary Drilling Rig thumbnail-1
YUTONG YTR230D Construction Rotary Drilling Rig thumbnail-2
YUTONG YTR230D Construction Rotary Drilling Rig thumbnail-3
YUTONG YTR230D Construction Rotary Drilling Rig thumbnail-4

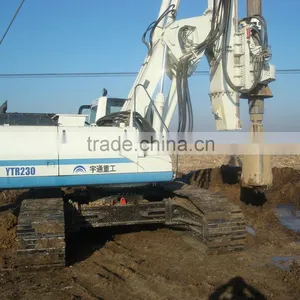

YUTONG YTR230D Construction Rotary Drilling Rig thumbnail-5
YUTONG YTR230D Construction Rotary Drilling Rig photo-1
YUTONG YTR230D Construction Rotary Drilling Rig photo-2

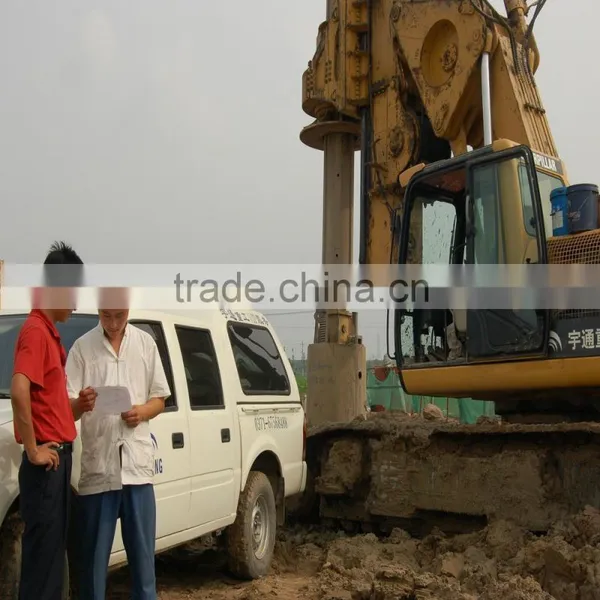

YUTONG YTR230D Construction Rotary Drilling Rig photo-3

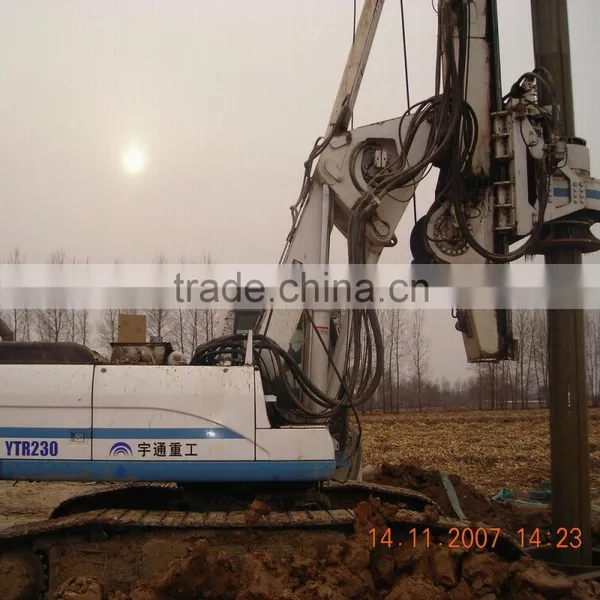

YUTONG YTR230D Construction Rotary Drilling Rig photo-4
YUTONG YTR230D Construction Rotary Drilling Rig photo-5
US$ 650,000 - 800,000 MOQ: 1 Unit
Key Specifications
Get Latest Price
Condition:
New
Type:
Rotary Drilling Rig
Power Type:
Diesel
Contact Supplier Request Quote Chat Now
Zhengzhou Yutong Heavy Industries Co., Ltd.
Payment & Shipping
Payment Methods:
Port of Shipment:
Qingdao Port Tianjin port Lianyungang port Shanghai port
Delivery Detail:
Delivery time depends on order quantity.

Related Products

  • Product Details

  • Company Profile
  • Contact Us
Condition New
Type Rotary Drilling Rig
Power Type Diesel
Place of Origin China
Brand Name YUTONG
Model Number YTR230D
Usage Ore
Power(W) 230(KW)
Dimension(L*W*H) 16070*3000*3590(transportation)
Weight 72
Certification the European Union CE certification
Warranty 12 mouths/2000hours
After-sales Service Provided Engineers available to service machinery overseas



Product Description



Maximum drilling diameter of YTR230D Rotary drilling rig

mm

2000

Drilling depth of YTR230D Rotary drilling rig

m

52/68

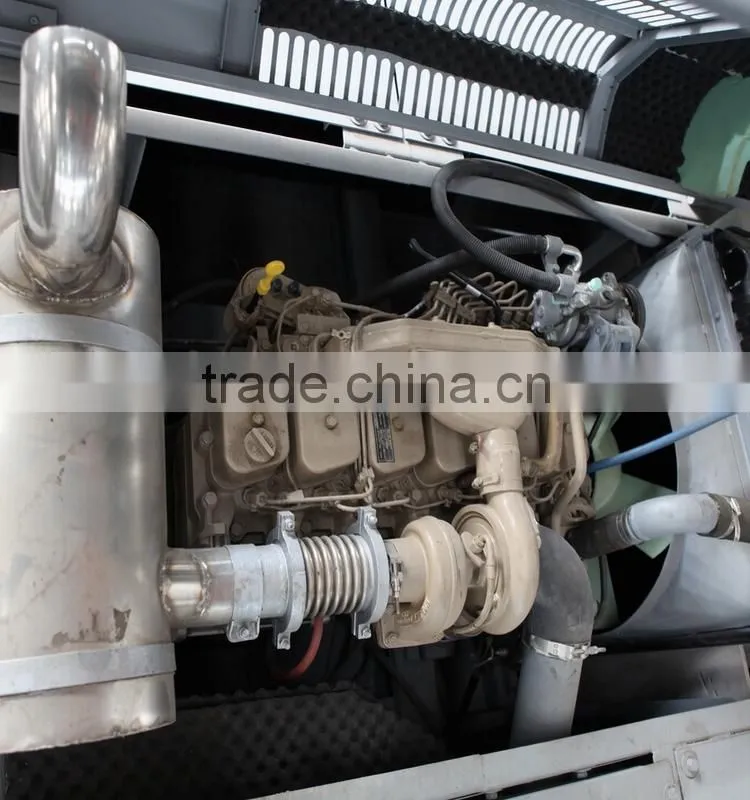

Engine of YTR230D Rotary drilling rig

Model

DE12TIA

Manufacturer

DOOSAN

Configured power

kW

230

Power head of YTR230D Rotary drilling rig

Max. output torque

kN·m

230

Drilling speed

r/min

7~35

Pressurized cylinder of YTR230D Rotary drilling rig

Maximum pressure

kN

215



Maximum pull force

kN

230

Stroke of sledge

mm

5330

Main winch

Lifting force

kN

240

Maximum line speed

m/min

65



Diameter of steel wire rope

mm

28

Placement

Rear-mounted

Impact winch

Pull force (first floor)

kN

100

Maximum line speed

m/min

50

Diameter of steel wire rope

mm

26

Mast

Forwards inclination

°

3

Sideward inclination

°

±3.5

Chassis of YTR230D Rotary drilling rig

Width of crawler board

mm

800

Towing force

KN

410

Overall chassis length (wheel track)

mm

4950

Overall dimension of YTR230D Rotary drilling rig

Equipment width under working state

mm

4300

Equipment height under working state

mm

22420

Equipment length under transportation state

mm

16070

Equipment height under transportation state

mm

3590



Equipment width under transportation state

mm

3000 (3 machines are surplus)

3300

Weights of YTR230D Rotary drilling rig

Working state

t

72

Transportation state

t

60.8

Specification of standard drill rod (drilling depth of 52m)

Machine-locked drill rod φ440-4X14.5m-200B

Specification of longest machine-locked drill rod (drilling depth of 54m)

Machine-locked drill rod φ440-4X15m-200B

Specification of longest friction drill rod (drilling depth of 68m)

Friction drill rod φ440-5X15m-200B
YUTONG YTR230D Construction Rotary Drilling RigYUTONG YTR230D Construction Rotary Drilling RigYUTONG YTR230D Construction Rotary Drilling Rig







Certifications

YUTONG YTR230D Construction Rotary Drilling RigYUTONG YTR230D Construction Rotary Drilling RigYUTONG YTR230D Construction Rotary Drilling Rig





Trade Shows

YUTONG YTR230D Construction Rotary Drilling RigYUTONG YTR230D Construction Rotary Drilling RigYUTONG YTR230D Construction Rotary Drilling RigYUTONG YTR230D Construction Rotary Drilling Rig
