380 level Construction Crawler-type Dynamic Compactor
- 20 Set / Sets per Month
- Shanghai&Tianjin&Qingdao
- T/T L/C D/P D/A
- Excavator drum compactor
- Easy to use vertical impact rammer low price gasoline rammer hand rammer
- Diesel powered vertical rammer skip rammer internal combustion rammer
- Gasoline small vibration hopping rammer hand - supported vibration rammer
- Model 330 reversible plate rammer large vibrating rammer groove compaction foundation compaction rammer
- Model 330 reversible plate rammer large vibrating rammer groove compaction foundation compaction rammer
Product Details
Condition: | New | Place of Origin: | Henan, China | Brand Name: | YUTONG |
Model Number: | YTQH350B | Power(W): | 179 | Weight: | 31.9 |
Dimension(L*W*H): | 7025X3360X3200 | Certification: | CE&ISO | Warranty: | one year |
After-sales Service Provided: | Overseas service center available |
Product Description

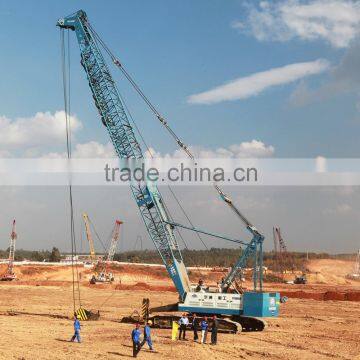

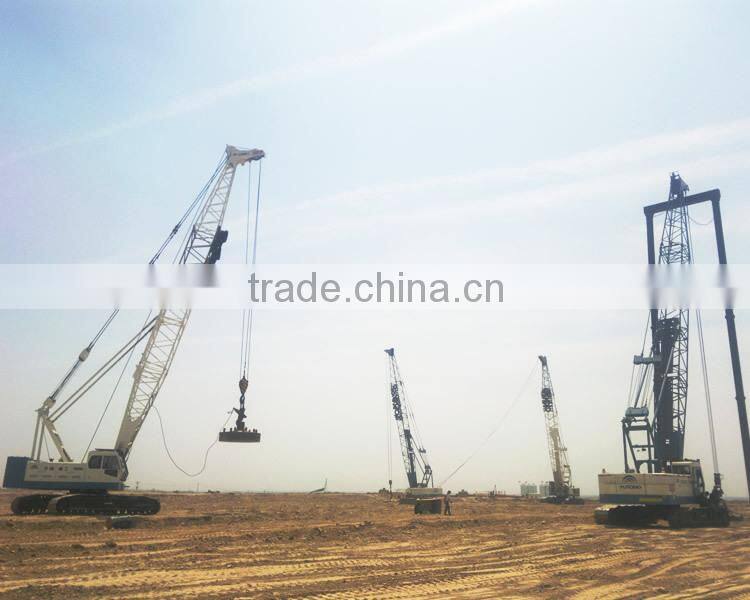

Hydraulic Dynamic Compaction
According to the market demands and based on many years experience in the production of lifting, compacting and tamping equipments, Zhengzhou Yutong Heavy industries has developed YTQH series hydraulic dynamic compaction which is a special tamping equipment.
Performance characteristics of YTQH350B
Hydraulic drive system
Strong power system
Extension-type chassis mechanism
Multi-level security devices
Artistic outline and Comfortable ride
Major technical parameters of YTQH350B
Compacting Capacity Level (t.m) | 350 (Reaching 700 with portal frame) |
Allowed Pounder Weight (t) | 17 (Ground adsorption coefficient is 1.5) |
Wheel Tread (mm) | 5090 |
Chassis Width (mm) | 3360(4520) |
Track Shoe Width (mm) | 760 |
Boom Length (mm) | 19-25 |
Maximum Hoisting Height (mm) | 25.7 (The distance between the center of the pulley on the top and the ground) |
Operating Radius (m) | 6.3-14.5 |
Hoisting Pull (t) | 14 (First floor) |
Hoisting Speed (m/min) | 0-118 (Speed is fastest at the fourth floor) |
Gradeability (%) | 40% |
Travelling Speed (km/h) | 0-1.4 |
Rotary Speed (km/min) | 0-2.3 |
Working Angle (°) | 60-77 |
Engine Power (Kw) | 179 |
Rated Speed of Engine (r/min) | 2100 |
Weight of complete machine (t) | 58 |
Weight of Balance Weight (t) | 18.9 |
Weight of Main Unit (t) | 31.9 (Transportation State) |
Overall Dimension of Complete Vehicle(mm) | 7025X3360X3200 (Transportation State) |
Ground Pressure (MPa) | 0.065 |
As a specialized supplier of construction machinery of PLA Construction Engineering Corps, Yutong Heavy Industries has made outstanding contributions to the national defense construction, supplied thousands of various equipment like high-speed bulldozers and loaders for this Corps, and been highly appraised by the army due to the high quality of its products in the past 60 years.
Manufacturing
Yutong Heavy Industries has more than 60 kinds of products that can be classified to such 5 categories as shoveling and transporting machinery, environmental protection equipment and environmental protection engineering, piling machinery, special purpose vehicle, construction hoisting machinery, with its business covering the roads, railways, hydraulic engineering, architectural engineering, coal mines, petroleum engineering, civil engineering, environmental protection.
R&D Center
Located in Zhengzhou City, Henan Province and occupying a land of four hundred sixty-five thousand square meters, the company has about 3500 employees including more than 470 construction technicians. It has its own academician working station and provincial corporate technical center so it has a powerful technical innovation and new product development ability.
Welcome to consult us any question you have !
Contact Us
- Zhengzhou Yutong Heavy Industries Co., Ltd.
- Contact nameTom Xu
- Phone0086-371-89993225
- Address No. 88, Yugong Road, Economic And Technological Development Zone Zhengzhou,Henan
