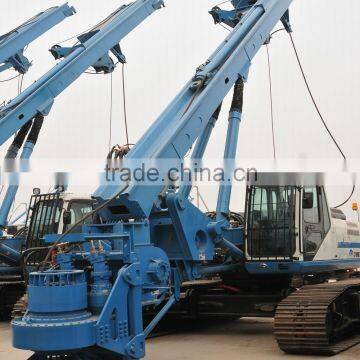

Power Head Max Output Torque 128(KN*M) Construction Rotary Drilling Rig For Sale
Main Technical Parameters of YTR150D Rotary Drilling Rig
Major technical parameters of YTR150D rotary drilling rig | |||
Maximum drilling diameter of YTR150D rotary drilling rig |
mm |
1500 |
|
Maximum drilling depth of YTR150D rotary drilling rig |
m |
54 |
|
Engine of YTR150D rotary drilling rig |
Model |
DE08TIS |
|
Manufacturer |
Korea DOOSAN |
||
Configured power |
kW |
120 |
|
|
Power head of YTR150D rotary drilling rig |
Max. output torque |
KN*m |
128 |
Drilling speed |
r/min |
6~35 |
|
|
Pressurized cylinder of YTR150D rotary drilling rig |
Maximum push force |
KN |
150 |
Maximum pull force |
KN |
160 |
|
Stroke of sledge |
mm |
3500 |
|
|
Main winch of YTR150D rotary drilling rig |
Lifting force |
KN |
160 |
Maximum line speed |
m/min |
70 |
|
Diameter of steel wire rope |
mm |
28 |
|
Location |
Front-placed |
||
|
Auxiliary winch of YTR150D rotary drilling rig |
Pull force (first floor) |
KN |
62 |
Maximum line speed |
m/min |
65 |
|
Diameter of steel wire rope |
mm |
16 |
|
Mast of YTR150D rotary drilling rig |
Forwards inclination |
° |
3 |
Sideward inclination |
° |
3.5 |
|
Chassis of YTR150D rotary drilling rig |
Model |
Yutong-manufactured YLD280 |
|
Width of crawler board |
mm |
700 |
|
Towing force |
KN |
280 |
|
Overall chassis length (wheel track) |
mm |
4000 |
|
|
Overall dimension of YTR150D rotary drilling rig |
Equipment width under working state |
mm |
4100 |
Equipment height under working state |
mm |
18710 |
|
Equipment length under transportation state |
mm |
13330 |
|
Equipment height under transportation state |
mm |
3280 |
|
Equipment width under transportation state |
mm |
3100 |
|
Weight of YTR150D rotary drilling rig |
Working state |
t |
49 |
Transportation State |
t |
40 |
|
Specification of standard drill rod |
5X12m φ377 friction-type drill rod (54 m) |
||
Specification of longest machine-locked drill rod |
4X12m φ377 machine-locked drill rod (43 m) |
||
|
|
|
Performance Characteristics of Rotary Drilling Rig
1. YTR150D rotary drilling rig is equipped with forehead cylinder, through which the pulley-yoke can automatically fold the mast, so as to reduce labor intensity and improve work efficiency. |
| 2.YTR150D rotary drilling rig uses the most advanced electronic leveling device which can switch between manual operation and automatic operation and is capable of real-time monitoring the mast and carrying out automatic adjustment to ensure the mast is always in the vertical state during construction operation, and this can effectively ensure the pile-hole verticality meets the requirement of the engineering. |
|
3. Hydraulic system of YTR150D rotary drilling rig uses advanced negative flow control technology, realizing the flow distribution as needed. In addition, the superposition of electric power can avoid overload, so as to maximize the use of engine power.
|
| 4.The hydraulic system of YTR150D rotary drilling rig, with pilot proportional control valve, is high efficient and energy-saving and has high control accuracy. |
| 5.YTR150D rotary drilling rig can automatically adjust power head's torque and speed proportion according to the hard and soft degree of the stratum. This not only can ensure the high-efficient drilling and make sure the engine run stably, but also can reduce the requirements for operator's skill. |
| 6. The electrical system of YTR150D rotary drilling rig adopts electro-hydraulic proportional control technology and CAN bus distributed control technology. |
| 7.YTR150D rotary drilling rig uses the most advanced electronic leveling device which can switch between manual operation and automatic operation, realizing high-precision detection of mast angle (accuracy ≤0.1 degrees) and depth detection precision of ±0.5m (excluding cumulative error), as well as rotation detection accuracy of ± 0.05 (excluding mechanical error), so as to fully guarantee the quality of construction. |
|
|
|
|
|
|
|
|
|
|
|
